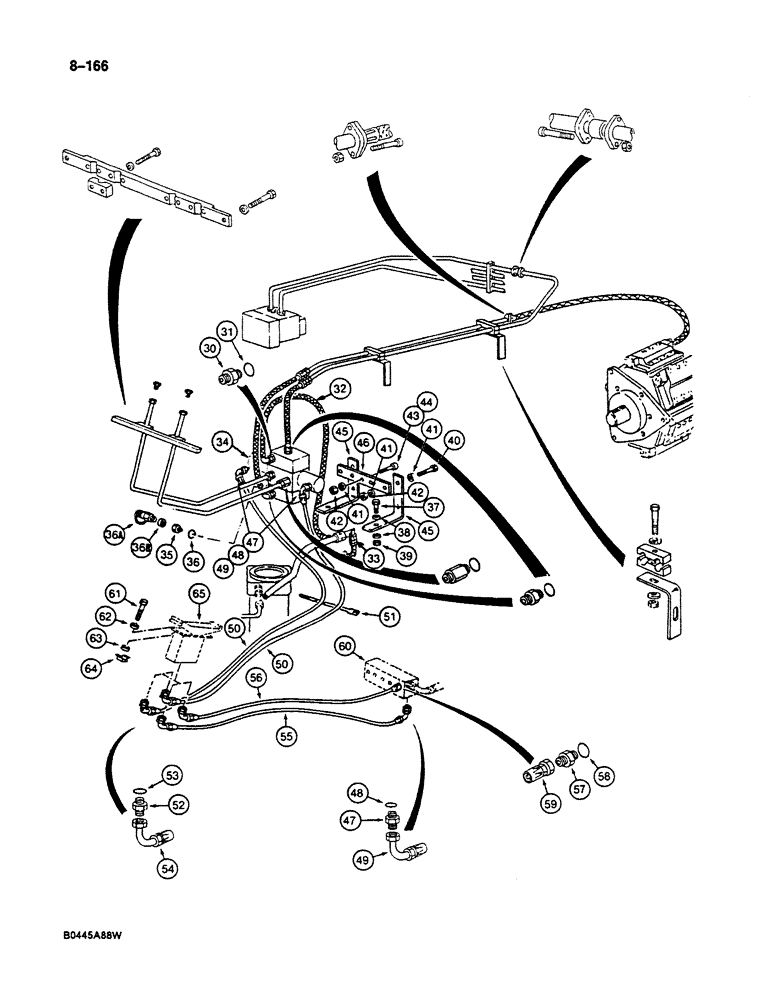

Запчасти Case 125B (8-166) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74845 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

P3037515

UNION

ADAPTER ASSEMBLY - straight

1шт.

30

NSS

NOT SOLD SEPARAT

ADAPTER - straight, Includes: Ref. 31

1шт.

31

P5746063

SEAL

- adapter

1шт.

32

P3231992

HOSE

- return, 39-3/8" (1000 mm) long

1шт.

33

P837550

UNION

ADAPTER - straight

1шт.

34

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - option, one spool, parts list Figure 8-224

1шт.

P1037328

RESTRICTOR

ADAPTER ASSEMBLY - test port, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

ADAPTER - test port

1шт.

36

P945295

SEAL

- test port

1шт.

P4037516

MAKING-UP

CAP AND DISCONNECT ASSEMBLY - test port, Includes: Ref. 36A and 36B

1шт.

36a

NSS

NOT SOLD SEPARAT

BODY - disconnect

1шт.

36b

P7046042

SEAL

WASHER - seal, disconnect

1шт.

37

P133836

SCREW

BOLT - valve bracket

2шт.

38

P3528796

WASHER

SPACER - bolt

4шт.

39

P134564

SAFETY NUT

NUT - bracket bolt

2шт.

40

P33822

SCREW

BOLT - valve bracket

4шт.

41

P3528794

WASHER

SPACER - bolt

11шт.

42

P134596

SAFETY NUT

NUT - bolt

7шт.

43

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

Valve bracket Hex Soc Hd, M8 x 65, 10.9

2шт.

44

P1032912

SCREW

BOLT - valve bracket, 85 mm long

1шт.

45

P4525660

PLATE

BRACKET - valve mounting

2шт.

46

P3423359

PLATE

BRACKET - valve mounting

1шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 47 and 48

3шт.

47

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

48

P945295

SEAL

- adapter

1шт.

49

P4037590

END FITTING

ELBOW - 90 degree, pilot circuit hose

3шт.

50

REF

INSTRUCTION

HOSE - pilot circuit, 157-1/2" (4000 mm) long, cut from P1103640

2шт.

51

P51946

CLAMP

TIE STRAP - hose

1шт.

P4037571

UNION

ADAPTER ASSEMBLY - straight, hose to foot control valve, Includes: Ref. 52 and 53

4шт.

52

NSS

NOT SOLD SEPARAT

ADAPTER - straight, foot foot control valve

1шт.

53

P7046042

SEAL

O-RING - adapter

1шт.

54

P4037590

END FITTING

ELBOW - 90 degree, hose to foot control valve

4шт.

55

REF

INSTRUCTION

HOSE - pilot circuit, 31-1/2" (800 mm) long, cut from P1103640

1шт.

56

REF

INSTRUCTION

HOSE - pilot circuit, 27-9/16" (700 mm) long, cut from P1103640

1шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 57 and 58

1шт.

57

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

58

P945295

SEAL

- adapter

1шт.

59

P4037588

END FITTING

ADAPTER - straight, pilot circuit hose

1шт.

60

REF

INSTRUCTION

MANIFOLD - control circuit, see Figure 8-124 for control valve lines

1шт.

61

P33822

SCREW

BOLT - foot control valve

4шт.

62

P3528794

WASHER

SPACER - bolt, upper

4шт.

63

P4328730

WASHER

SPACER - bolt, lower

4шт.

64

P1334571

NUT

- bolt

4шт.

65

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, for correct assembly and components see Figure 8-239 and 8-241

1шт.
