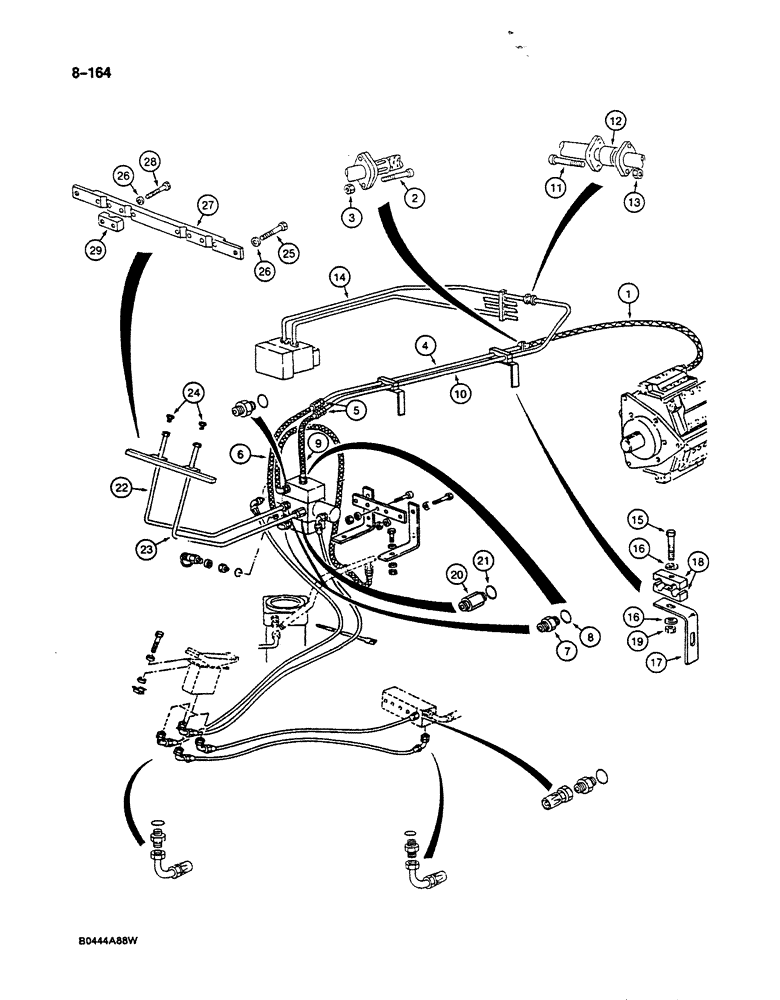

Запчасти Case 125B (8-164) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74845 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

1

P4931957

HOSE

- pump to option control valve, 31-1/2" (800 mm) long

1шт.

2

P1232958

SCREW

BOLT - flange

2шт.

3

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange bolt

2шт.

4

P5349003

PIPE

TUBE - pump to option control valve

1шт.

5

P37554

UNION

ADAPTER - straight

2шт.

6

P3731940

HOSE

- to option control valve, 39-3/8" (1000 mm) long

1шт.

P3037504

UNION

ADAPTER ASSEMBLY - straight

3шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER - straight, Includes: Ref. 8

3шт.

8

P945293

WASHER, SEALING

SEAL - adapter

1шт.

9

P3731941

HOSE

- to power sensing valve, 31-1/2" (800 mm) long

1шт.

10

P5249178

PIPE

TUBE - to power sensing valve, Serial Range: 74845-74963

1шт.

10

P5249178

PIPE

TUBE - to power sensing valve, Serial Range: 21801-21806

1шт.

10

P7249118

PIPE

TUBE - to power sensing valve, Serial Range: 21807-21868

1шт.

10

P7249118

PIPE

TUBE - to power sensing valve, Start Serial: 26801

1шт.

11

P1232960

SCREW

BOLT - flange

2шт.

12

1737761

ADAPTER - tube

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange bolt

2шт.

14

P5249109

PIPE

TUBE - option control valve to power sensing valve, see Figure 8-38 for continuation of circuits at power sensing valve

1шт.

15

P32678

SCREW

BOLT - tube clamp

2шт.

16

P3528793

WASHER

SPACER - bolt

4шт.

17

P4525673

PLATE

BRACKET - tube mounting

2шт.

18

P820353

SHIN

CLAMP - tube

4шт.

19

P34596

LOCK NUT

NUT - bolt, clamp

2шт.

P3037509

UNION

ADAPTER ASSEMBLY - straight, long

1шт.

20

NSS

NOT SOLD SEPARAT

ADAPTER - straight, long, Includes: Ref. 21

1шт.

21

P945293

WASHER, SEALING

O-RING - adapter

1шт.

22

P5449013

PIPE

TUBE - option, Serial Range: 74845-84963

1шт.

22

P5449013

PIPE

TUBE - option, Serial Range: 21801-21806

1шт.

22

P6349098

PIPE

TUBE - option, Serial Range: 251807-21868

1шт.

22

P6349098

PIPE

TUBE - option, Start Serial: 26801

1шт.

23

P5449014

PIPE

TUBE - option, Serial Range: 74845-74963

1шт.

23

P5449014

PIPE

TUBE - option, Serial Range: 21801-21806

1шт.

23

P6449002

PIPE

TUBE - option, Serial Range: 21807-21868

1шт.

23

P6449002

PIPE

TUBE - option, Start Serial: 26801

1шт.

24

P137413

PLUG

- tube, see Figures 8-188 and 8-190 for completion of option circuit at boom and arm, if used

2шт.

25

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, - Clamp bar Hex, M10 x 25, 10.9, Full Thd

2шт.

26

P3528795

WASHER

SPACER - bolt

6шт.

27

P3920392

SHIN

BAR - clamp

1шт.

28

P833802

SCREW

BOLT - clamp, full threaded

4шт.

29

P2023481

SHIN

CLAMP - tube

2шт.
