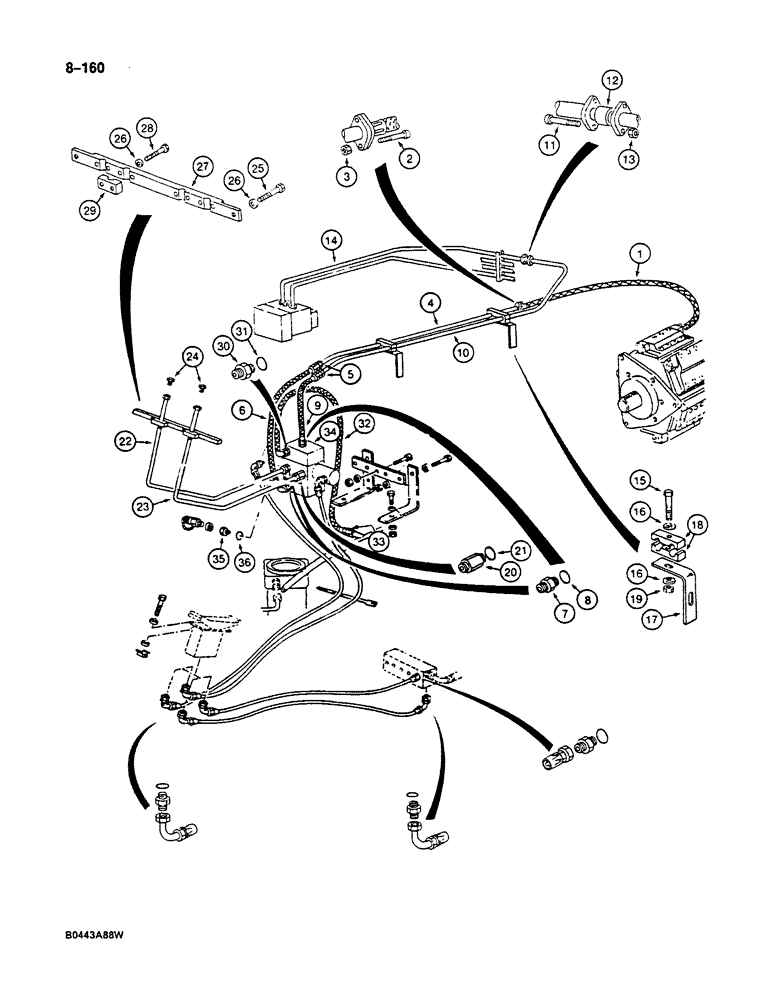

Запчасти Case 125B (8-160) - HYDRAULIC CIRCUIT FOR OPTIONS, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

1

P4931957

HOSE

- pump to option control valve, 31-1/2" (800 mm) long

1шт.

2

P1232958

SCREW

BOLT - flange

2шт.

3

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange bolt

2шт.

4

P5349003

PIPE

TUBE - pump to option control valve

1шт.

5

P37554

UNION

ADAPTER - straight

2шт.

6

3731940

HOSE - to option control valve, 39-3/8" (1000 mm) long

1шт.

P3037504

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 7 and 8

3шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

8

P945293

WASHER, SEALING

O-RING - adapter

1шт.

9

P3731941

HOSE

- to power sensing valve, 31-1/2" (800 mm) long

1шт.

10

P5249178

PIPE

TUBE - to power sensing valve

1шт.

11

P1232960

SCREW

BOLT - flange

2шт.

12

P1737761

JUNCTION

ADAPTER - tube

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange bolt

2шт.

14

P5249109

PIPE

TUBE - option control valve to power sensing valve, see Figure 8-30 for continuation of circuits at power sensing valve

1шт.

15

P32678

SCREW

BOLT - tube clamp

2шт.

16

P3528793

WASHER

SPACER - bolt

4шт.

17

P4525673

PLATE

BRACKET - tube mounting

2шт.

18

P820353

SHIN

CLAMP - tube

4шт.

19

P34596

LOCK NUT

NUT - bolt, clamp

2шт.

P3037509

UNION

ADAPTER ASSEMBLY - straight, long, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

ADAPTER - straight, long

1шт.

21

P945293

WASHER, SEALING

SEAL - adapter

1шт.

22

P3231994

HOSE

TUBE - option (replaces P5449013)

1шт.

23

P3231994

HOSE

TUBE - option (replaces P5449014)

1шт.

24

P137413

PLUG

- tube, see Figures 8-188 and 8-190 for completion of option circuit at boom and arm, if used

2шт.

25

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, - Clamp bar Hex, M10 x 25, 10.9, Full Thd

2шт.

26

P3528795

WASHER

SPACER - bolt

6шт.

27

P3920392

SHIN

BAR - clamp

1шт.

28

P833802

SCREW

BOLT - clamp, full threaded, Includes: Ref. 29

4шт.

29

P2023481

SHIN

CLAMP - tube

2шт.

P3037515

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

31

P5746063

SEAL

- adapter

1шт.

32

P3231992

HOSE

- return, 39-3/8" (1000 mm) long (replaces P3231992)

1шт.

33

P837550

UNION

ADAPTER - straight

1шт.

34

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - option, one spool, parts list Figure 8-224, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

ADAPTER - test port

1шт.

36

P945295

SEAL

- test port

1шт.
