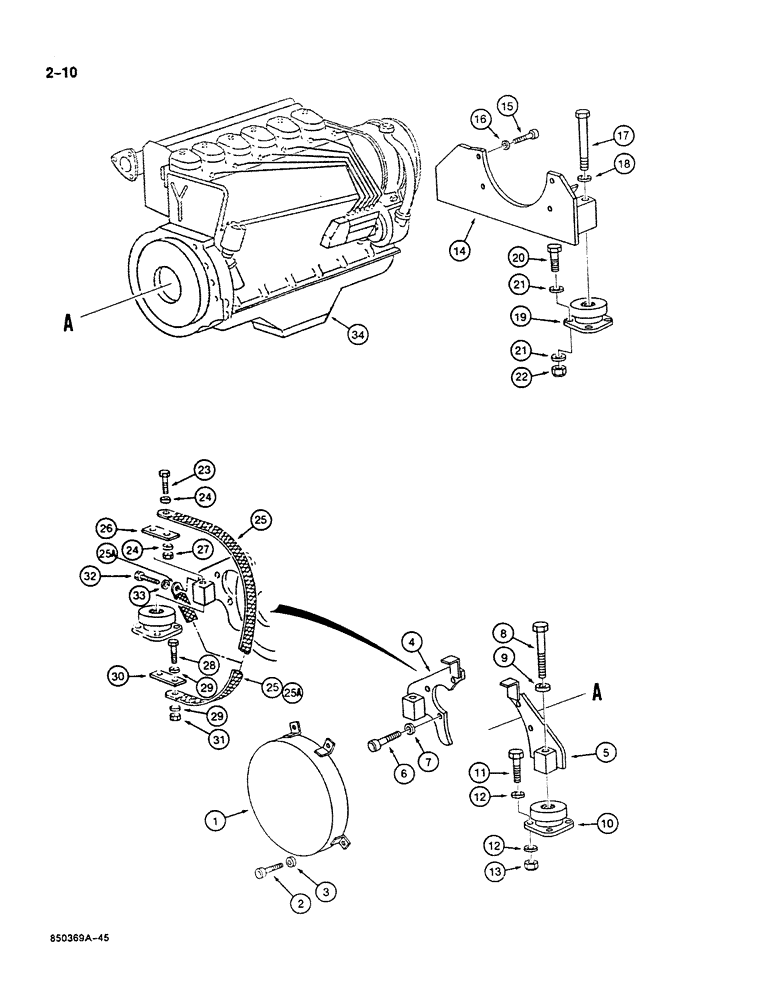

Запчасти Case 125B (2-10) - ENGINE, MOUNTING & ADAPTING PARTS, P.I.N. 74251- 74963, 21801-21868, 26801 AND AFTER (02) - ENGINE

1

P2640359

PROTECTOR

GUARD - engine flywheel

1шт.

2

P32954

SCREW

BOLT -, Serial Range: guard-engine

4шт.

3

P3528795

WASHER

SPACER -, Serial Range: bolt-guard

4шт.

4

P8928166

SUPPORT

BRACKET - engine mount, right-hand side

1шт.

5

P8928167

SUPPORT

BRACKET - engine mount, left-hand side

1шт.

6

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Bracket to engine Hex Soc Hd, M10 x 35, 10.9

6шт.

7

P3528795

WASHER

SPACER -, Serial Range: bolt-bracket

6шт.

8

P1133824

SCREW

BOLT - bracket to engine mount

2шт.

9

P3528793

WASHER

SPACER - engine mount bolt

2шт.

10

P741425

SUPPORT

MOUNT - engine, flexible

2шт.

11

P133813

SCREW

BOLT - engine, Serial Range: mount-turntable

8шт.

12

P3528795

WASHER

SPACER -, Serial Range: bolt-mount

16шт.

13

P34598

SAFETY NUT

NUT - hex, engine mount bolt

8шт.

14

P154611

CROSSBAR

BRACKET - engine mount, rear

1шт.

15

P32999

BOLT

BOLT -, Serial Range: bracket-engine

4шт.

16

P34614

WASHER

- lock, bracket bolt

4шт.

17

P1133824

SCREW

BOLT - rear bracket to engine mount

2шт.

18

P3528793

WASHER

SPACER - engine mount bolt

2шт.

19

P741425

SUPPORT

MOUNT - engine rear, flexible

2шт.

20

P133813

SCREW

BOLT - engine, Serial Range: mount-turntable

8шт.

21

P3528795

WASHER

SPACER - engine mount bolt

16шт.

22

P34598

SAFETY NUT

NUT - hex, engine mount bolt

8шт.

23

P533837

SCREW

BOLT - hex head, 12 mm x 40 mm, ground strap to plate, upper, used with mounting plate, reference number 26

1шт.

24

P3528793

WASHER

SPACER - plate bolt and engine mount, upper, used with mounting plate, reference number 26

2шт.

25

P1047299

NEG BATTERY CABLE

STRAP - ground, 400 mm long, if used

1шт.

25a

P41824

NEG BATTERY CABLE

STRAP - ground, 200 mm long, if used

1шт.

26

P22880

PLATE

- ground strap mounting, upper, if used

1шт.

27

337475

NUT,M12, Cl 10

- , Upper bolt, Used with mounting plate, Ref. # 26 M12, Cl 10

1шт.

28

P933818

SCREW

BOLT - ground strap to plate, lower

1шт.

29

P3528795

WASHER

SPACER - plate bolt and engine mount, lower

2шт.

30

P2623143

PLATE

- ground strap mounting, lower

1шт.

31

100016

NUT,M10 x 1.5, Cl 8

Lower Bolt M10, Cl 8

1шт.

32

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, 12 mm x 35 mm, full threaded, ground strap to engine, if used

1шт.

33

P4328797

WASHER

SPACER - bolt, 8 mm thick, if used

1шт.

34

REF

INSTRUCTION

ENGINE ASSEMBLY - Deutz No. B/FL911/912/W/913, see an authorized Deutz dealer for service parts

1шт.
