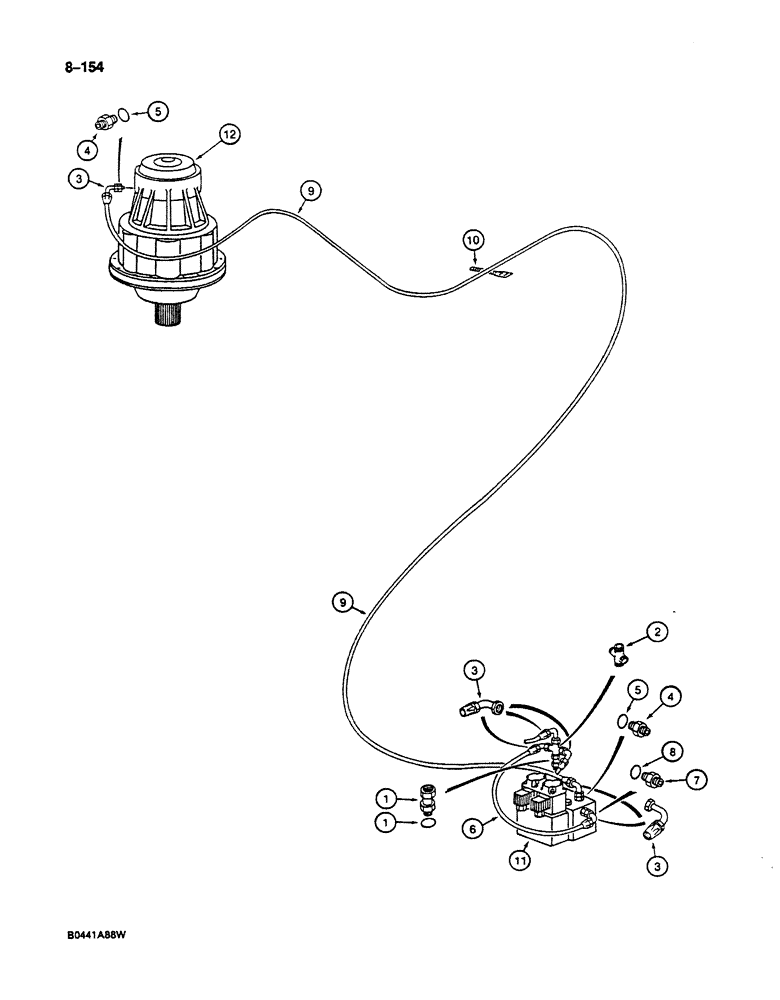

Запчасти Case 125B (8-154) - HYDRAULIC CIRCUIT FOR SWING BRAKE, P.I.N. 74845 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

1

P4037577

FITTING

TUBE ASSEMBLY - adapter, cross to solenoid valve, see Figure 8-84 Ref. 48 and 49

1шт.

2

P1237220

CROSS

- pilot and swing brake circuits

1шт.

3

P4037590

END FITTING

ADAPTER - 90 degree, swing brake hose

5шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, swing brake hoses, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER - straight, swing brake hoses

1шт.

5

P945295

SEAL

- adapter

1шт.

6

REF

INSTRUCTION

HOSE - supply, swing brake circuit, 27-9/16" (700 mm) long, cut from P1103640

1шт.

P4037574

UNION

ADAPTER ASSEMBLY - straight, swing brake hose, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER - straight, swing brake hose

1шт.

8

P945293

WASHER, SEALING

SEAL - adapter

1шт.

9

REF

INSTRUCTION

HOSE - swing brake circuit, 157-1/2" (4000 mm) long, cut from P1103640

1шт.

10

P136922

CLAMP

TIE STRAP - hose

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, 35 bar, parts list Figure 8-242

1шт.

12

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figures 8-272 and 8-274

1шт.
