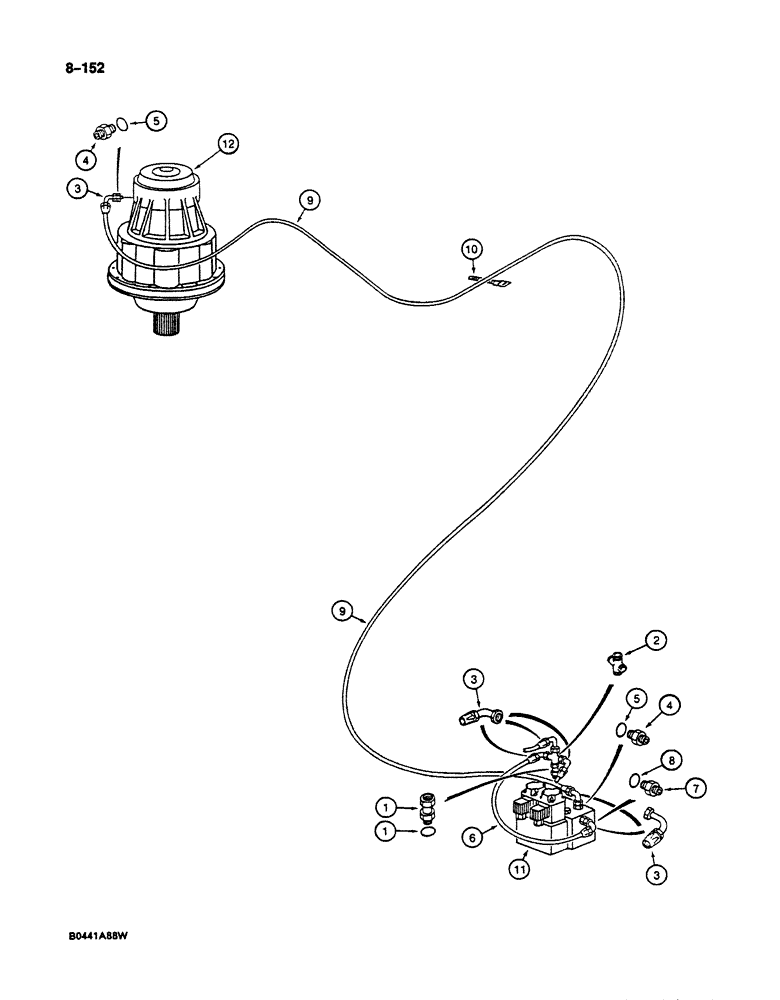

Запчасти Case 125B (8-152) - HYDRAULIC CIRCUIT FOR SWING BRAKE, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

1

P3037561

FITTING

ADAPTER - straight, tube, cross to solenoid valve, see Figure 8-80 Ref. 48

1шт.

2

P937219

CROSS

- pilot and swing brake circuits

1шт.

3

P4037537

END FITTING

ADAPTER - 90 degree, swing brake hose

5шт.

4

P3037546

UNION

ADAPTER - straight, swing brake hoses

2шт.

5

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

6

REF

INSTRUCTION

HOSE - supply, swing brake circuit, 27-9/16" (700 mm) long, cut from P1103640

1шт.

7

P2337591

UNION

ADAPTER - straight, swing brake hose

1шт.

8

P1230443

O-RING

- adapter

1шт.

9

REF

INSTRUCTION

HOSE - swing brake circuit, 157-1/2" (4000 mm) long, cut from P1103640

1шт.

10

P136922

CLAMP

TIE STRAP - hose

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, 35 bar, parts list Figure 8-242

1шт.

12

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figures 8-272 and 8-274

1шт.
