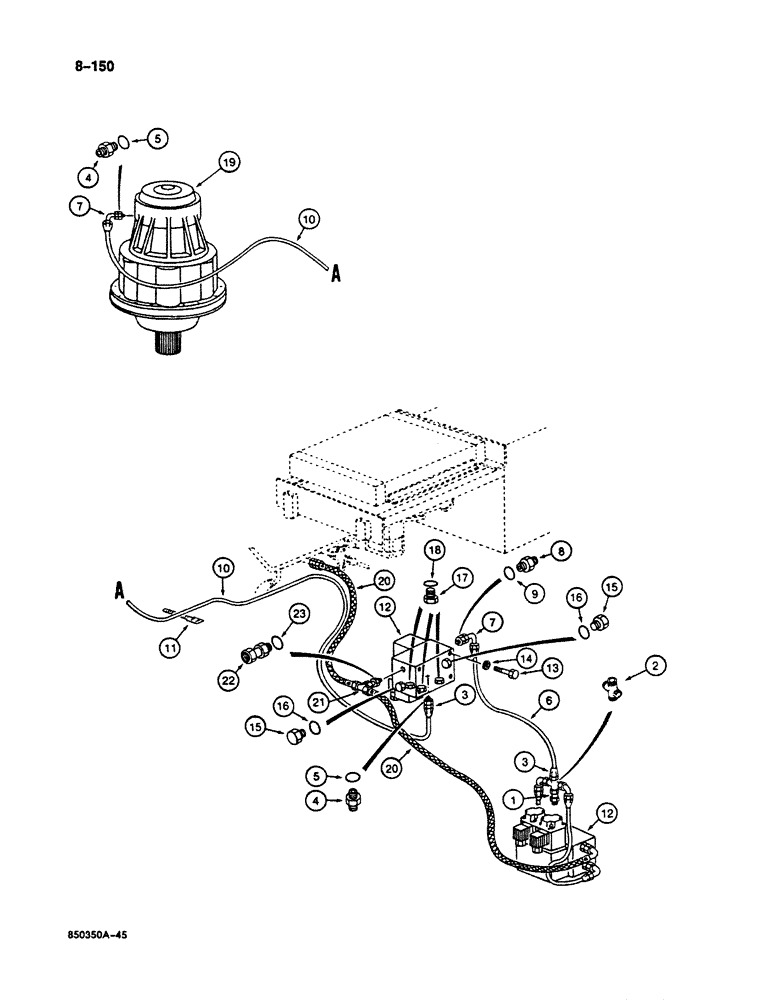

Запчасти Case 125B (8-150) - HYDRAULIC CIRCUIT FOR SWING BRAKE, P.I.N. 74251 THROUGH 74630 (08) - HYDRAULICS

1

P3037561

FITTING

ADAPTER - straight, tube, cross to solenoid valve, see Figures 8-70 Ref. 36 and 8-74 Ref. 44

1шт.

2

P937219

CROSS

- pilot and swing brake circuits

1шт.

3

P4037535

END FITTING

ADAPTER - straight, swing brake hoses

2шт.

4

P3037546

UNION

ADAPTER - straight, swing brake hoses

2шт.

5

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

6

REF

INSTRUCTION

HOSE - supply, swing brake circuit, 15-3/4" (400 mm) long, cut from P1103640

1шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, swing brake hose

2шт.

8

P2337591

UNION

ADAPTER - straight, swing brake hose

1шт.

9

P1230443

O-RING

- adapter

1шт.

10

REF

INSTRUCTION

HOSE - swing brake circuit, 157-1/2" (4000 mm) long, cut from P1103640

1шт.

11

P136922

CLAMP

TIE STRAP - hose

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, 35 bar, parts list Figure 8-242

2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Valve mounting

4шт.

14

P3528794

WASHER

SPACER - mounting bolt

4шт.

15

P1737443

PLUG

- valve

2шт.

16

P1230443

O-RING

- plug

2шт.

17

P1737451

PLUG

- valve

3шт.

18

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

3шт.

19

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figures 8-272 and 8-274

1шт.

20

P3731901

HOSE

- return, 24-3/4" (630 mm) long

2шт.

21

P37230

TEE

- return hoses

1шт.

22

P2337593

FITTING

TUBE - adapter, return tee

1шт.

23

P1230443

O-RING

- adapter

1шт.
