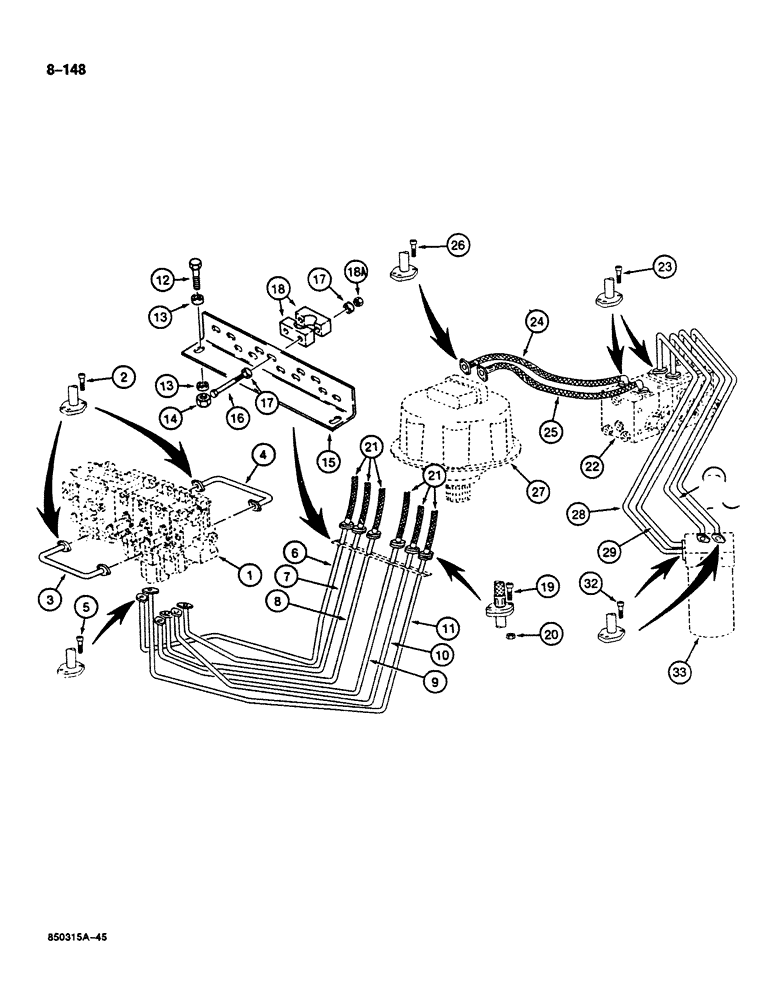

Запчасти Case 125B (8-148) - HYDRAULIC CIRCUITS FROM CONTROL VALVES, SWING & DRIVE CONTROL & ATTACHMENT CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

2

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange mounting Hex Soc Hd, M10 x 35, 10.9

8шт.

3

P7347640

PIPE

TUBE - heavy lift circuit

1шт.

4

P7347641

PIPE

TUBE - heavy lift circuit

1шт.

5

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Flange mounting Hex Skt Hd, M12 x 40, 10.9

12шт.

6

P5149195

PIPE

TUBE - attachment circuit

1шт.

7

P5249067

PIPE

TUBE - attachment circuit

1шт.

8

P5249066

PIPE

TUBE - attachment circuit

1шт.

9

P5249065

PIPE

TUBE - attachment circuit

1шт.

10

P5249064

PIPE

TUBE - attachment circuit

1шт.

11

P5149194

PIPE

TUBE - attachment circuit

1шт.

12

P1133839

SCREW

BOLT - bracket, clamping

2шт.

13

P3528795

WASHER

SPACER - bolt

4шт.

14

P34598

SAFETY NUT

NUT - clamp bolt

2шт.

15

P1831648

ANGLE BAR

BRACKET - tube clamp

1шт.

16

P33824

SCREW

BOLT - clamp mounting

12шт.

17

P3528795

WASHER

SPACER - bolt

24шт.

18

P520317

SHIN

CLAMP - tube

12шт.

18a

P34598

SAFETY NUT

NUT - clamp bolt

12шт.

19

P532942

SCREW

BOLT - flange

12шт.

20

829-1412

NUT,M12, Cl 10.9

Flange bolt M12, Cl 10

12шт.

21

P1031988

HOSE

- attachment circuit, 63" (1600 mm) long

6шт.

22

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - swing and drive, parts list Figures 8-216 through 8-222

1шт.

23

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange mounting Hex Soc Hd, M10 x 35, 10.9

12шт.

24

P3731961

HOSE

- swing motor, 24-3/4" (630 mm) long

1шт.

25

P3731962

HOSE

- swing motor, 19-3/4" (500 mm) long

1шт.

26

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange mounting Hex Soc Hd, M10 x 35, 10.9

4шт.

27

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figures 8-272 and 8-274

1шт.

28

P5049182

PIPE

TUBE - drive, control, Serial Range: valve-swivel

1шт.

29

P5049181

PIPE

TUBE - drive, control, Serial Range: valve-swivel

1шт.

30

P5049180

HYD TUBE,26.75 mm DIA

TUBE - drive, control valve to swivel

1шт.

31

P5049179

PIPE

TUBE - drive, control, Serial Range: valve-swivel

1шт.

32

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Flange mounting Hex Soc Hd, M10 x 35, 10.9

8шт.

33

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.
