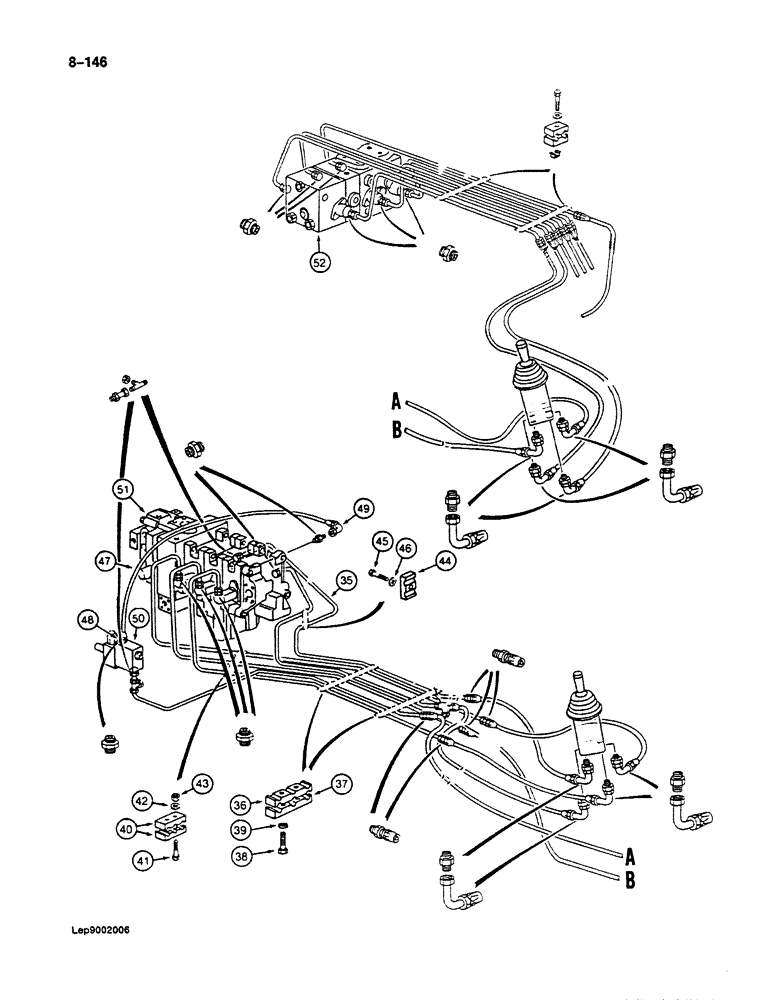

Запчасти Case 125B (8-146) - HYDRAULIC CIRCUIT FOR CONTROLS, TO MAIN CONTROL VALVES, P.I.N. 21807 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

35

P7249127

PIPE

TUBE - control circuit

1шт.

36

P4020331

SUPPORT

CLAMP - tube

2шт.

37

P4620394

SHIN

CLAMP - tube

2шт.

38

P933819

SCREW

BOLT - clamp mounting

4шт.

39

P3528793

WASHER

SPACER - mounting bolt

4шт.

40

P4620397

SHIN

CLAMP - tube

2шт.

41

P33822

SCREW

BOLT - clamp mounting

2шт.

42

P3528794

WASHER

SPACER - mounting bolt

2шт.

43

P134596

SAFETY NUT

NUT - mounting bolt

2шт.

44

P920344

SHIN

CLAMP - tube

1шт.

45

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- clamp mounting

1шт.

46

P3528793

WASHER

SPACER - mounting bolt

1шт.

47

REF

INSTRUCTION

HOSE - control circuit, 51-3/16" (1300 mm) long, cut from P1103640

1шт.

48

P4037588

END FITTING

ADAPTER - straight, hose

1шт.

49

P4037590

END FITTING

ADAPTER - 90 degree, hose

1шт.

50

REF

INSTRUCTION

VALVE ASSEMBLY - parallel supply, parts list Figure 8-248

1шт.

51

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

52

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - swing and drive, see Figures 8-216 through 8-222

1шт.
