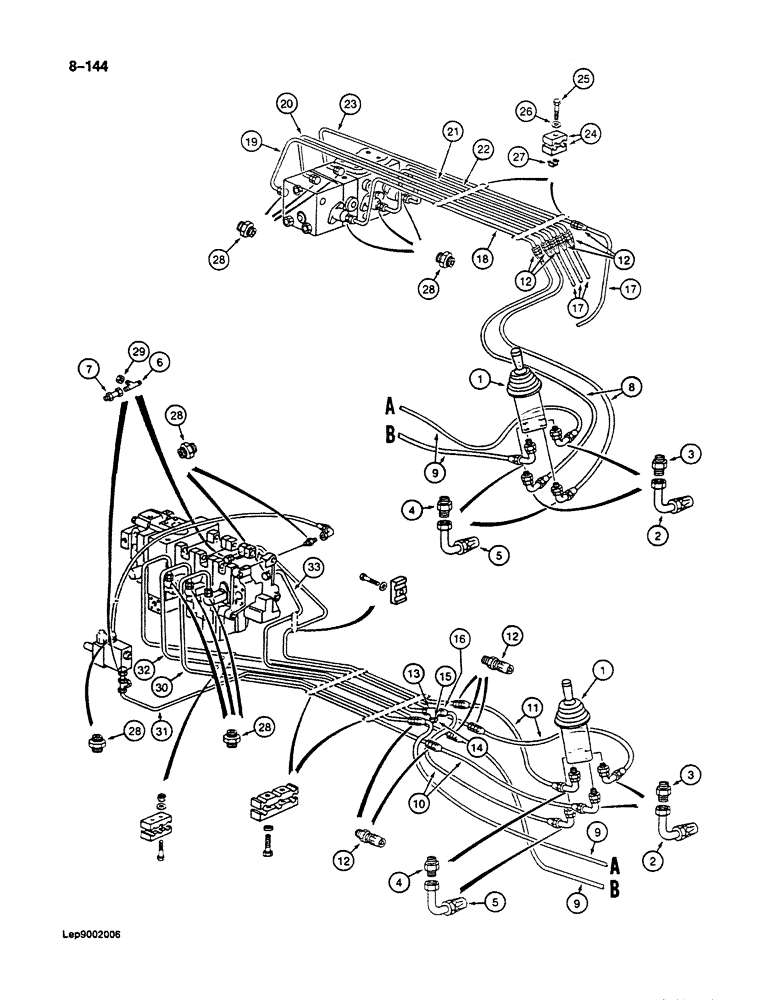

Запчасти Case 125B (8-144) - HYDRAULIC CIRCUIT FOR CONTROLS, TO MAIN CONTROL VALVES, P.I.N. 21807 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - hand, for correct assembly and components see Figures 8-232 and 8-234

2шт.

2

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

3

P4037571

UNION

ADAPTER ASSEMBLY - straight, control circuit hoses

4шт.

P7046042

SEAL

- adapter

1шт.

4

P4037572

UNION

ADAPTER ASSEMBLY - straight, control circuit hoses

4шт.

P7046042

SEAL

- adapter

1шт.

5

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

6

P937275

TEE

- 90 control circuit, attachment valve

2шт.

7

P4037577

FITTING

ADAPTER ASSEMBLY - straight, at valve ports

2шт.

P945295

SEAL

- adapter

1шт.

8

REF

INSTRUCTION

HOSE - control circuit, 78-3/4" (2000 mm) long, cut from P1103640

2шт.

9

REF

INSTRUCTION

HOSE - control circuit, 90-9/16" (2300 mm) long, cut from P1103640

2шт.

10

REF

INSTRUCTION

HOSE - control circuit, 98-7/16" (2500 mm) long, cut from P1103640

2шт.

11

REF

INSTRUCTION

HOSE - control circuit, 98-7/16" (2500 mm) long, cut from P1103640

2шт.

12

P4037589

END FITTING

ADAPTER - straight, control circuit, Serial Range: hoses-tubes

11шт.

13

P1237223

TEE

- sender to control circuit

1шт.

14

REF

INSTRUCTION

SENDER - electrical, heavy lift, see Figures 4-20 and 4-22 for electrical connections

1шт.

15

P344419

WASHER, SEALING

WASHER - seal, Serial Range: sender-tee

1шт.

16

P4037588

END FITTING

ADAPTER - straight, control circuit hose at tee

1шт.

17

REF

INSTRUCTION

HOSE - tube to foot control valves, see Figure 8-130, Ref. 8

4шт.

18

P6249058

PIPE

TUBE - control circuit

1шт.

19

P6249060

PIPE

TUBE - control circuit

1шт.

20

P6249057

PIPE

TUBE - control circuit

1шт.

21

P6249056

PIPE

TUBE - control circuit

1шт.

22

P6249059

PIPE

TUBE - control circuit

1шт.

23

P8347667

PIPE

TUBE - control circuit

1шт.

24

P2120326

SHIN

CLAMP - tube

12шт.

25

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

BOLT, , Clamp Mounting Hex, M8 x 45, 8.8

6шт.

26

P3528794

WASHER

SPACER - mounting bolt

6шт.

27

P1634573

NUT

- mounting bolt

6шт.

28

P4037573

UNION

ADAPTER ASSEMBLY - straight, at valve ports

12шт.

P945295

SEAL

- adapter

1шт.

29

P2537407

BLANK-OFF PLUG

CAP - tee

2шт.

30

P6749183

PIPE

TUBE - control circuit

1шт.

31

P6749168

PIPE

TUBE - control circuit

1шт.

32

P6749168

PIPE

TUBE - control circuit

1шт.

33

P6749170

PIPE

TUBE - control circuit

1шт.

34

P6749166

PIPE

TUBE - control circuit

1шт.
