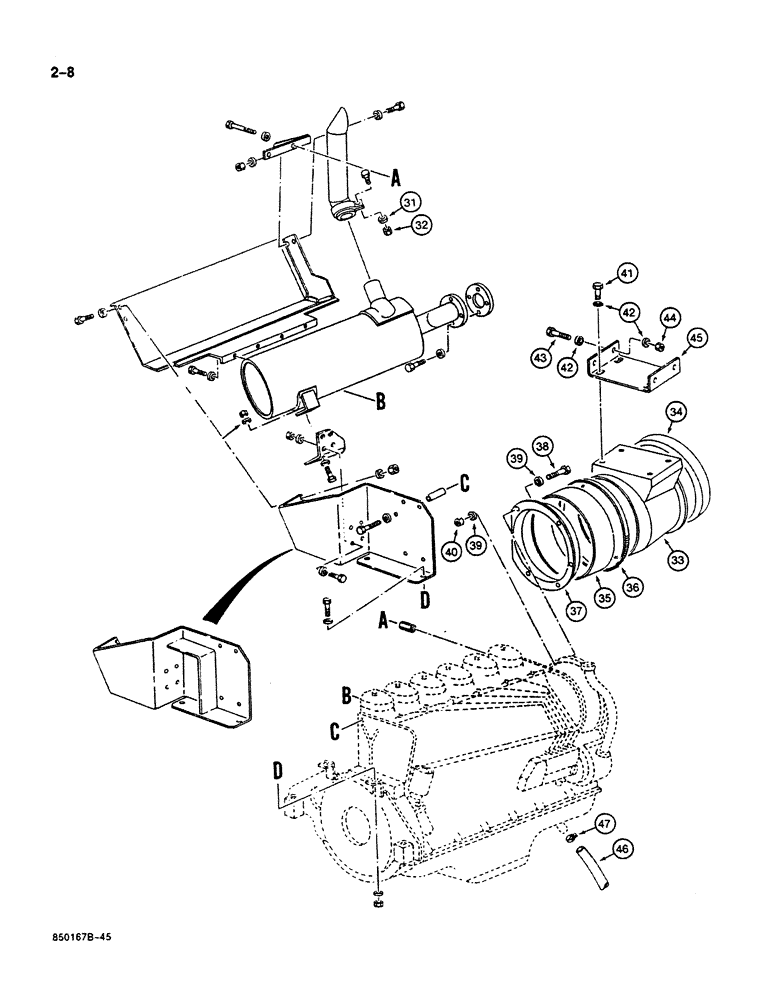

Запчасти Case 125B (2-08) - MUFFLER, EXHAUST SYS., & ENG. AIR COOLING ADAPTING PARTS, PIN 74251-74963, 21801-21868, 26801 & AFT. (02) - ENGINE

31

P3528794

WASHER

SPACER - clamp bolt

1шт.

32

P34113

NUT

- hex, clamp bolt

1шт.

33

P2440330

CONDUIT

ADAPTER - engine air cooling

1шт.

34

P5246093

SEAL

-, Serial Range: adapter-shroud

1шт.

35

P1128507

TRANSMISSION SLEEVE

CONNECTOR - rubber, Serial Range: adapter-engine

1шт.

36

P2036964

COLLAR CLAMP

CLAMP - rubber connector

2шт.

37

P3930124

ENGINE VENT SLEEVE

FLANGE -, Serial Range: connector-engine

1шт.

38

P733035

SCREW

BOLT -, Serial Range: flange-engine

5шт.

39

P3528799

WASHER

SPACER - flange bolt

10шт.

40

P234513

SAFETY NUT

NUT - hex, flange bolt

5шт.

41

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, - Adapter to bracket Hex, M10 x 25, 10.9, Full Thd

4шт.

42

P3528795

WASHER

SPACER - adapter bolt

12шт.

43

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- mounting bracket Hex, M10 x 35, 8.8, Full Thd

4шт.

44

P34558

NUT

- hex, mounting bolt

4шт.

45

P4825671

SUPPORT

BRACKET - mounting, cooling adapter

1шт.

46

REF

INSTRUCTION

HOSE - crankcase breather, 3.25 ft (1.0 m) long, cut from P31901

1шт.

47

P36998

COLLAR CLAMP

CLAMP - hose

1шт.
