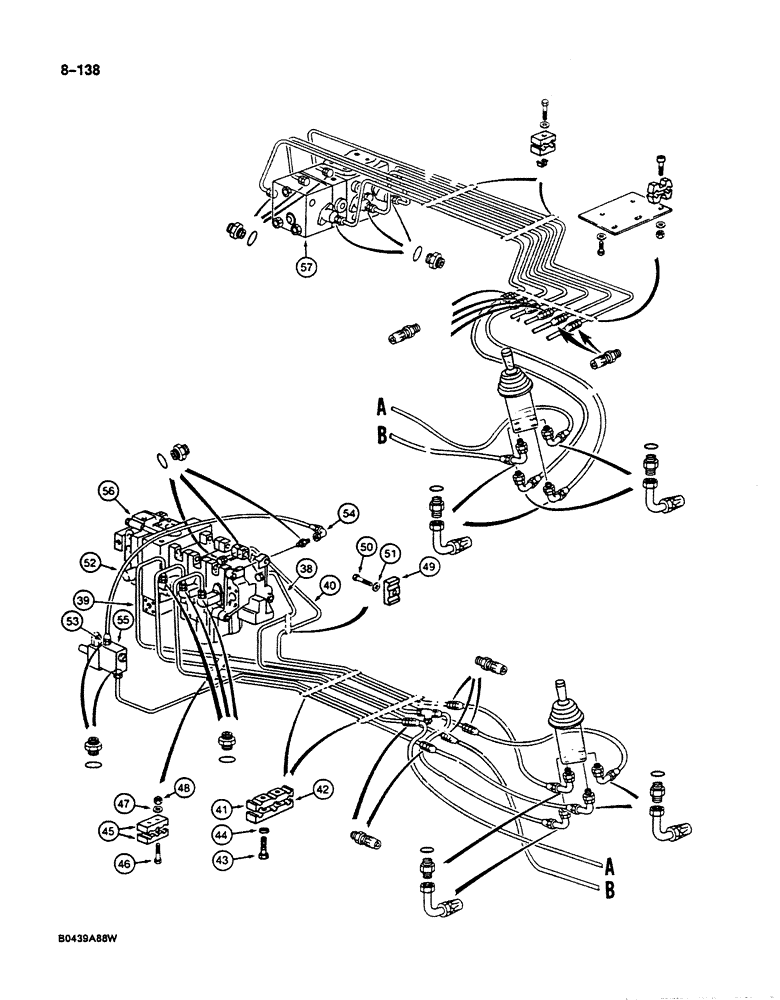

Запчасти Case 125B (8-138) - HYDRAULIC CIRCUIT FOR CONTROLS, TO MAIN CONTROL VALVES, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

38

P5149197

PIPE

TUBE - control circuit

1шт.

39

P5249101

PIPE

TUBE - control circuit

1шт.

40

P5149196

PIPE

TUBE - control circuit

1шт.

41

P4020331

SUPPORT

CLAMP - tube

2шт.

42

P4620394

SHIN

CLAMP - clamp tube

2шт.

43

P933819

SCREW

BOLT - clamp mounting

4шт.

44

P3528793

WASHER

SPACER - mounting bolt

4шт.

45

P4620397

SHIN

CLAMP - tube

2шт.

46

P33822

SCREW

BOLT - clamp mounting

2шт.

47

P3528794

WASHER

SPACER - mounting bolt

2шт.

48

P134596

SAFETY NUT

NUT - mounting bolt

2шт.

49

P920344

SHIN

CLAMP - tube

1шт.

50

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- clamp mounting

1шт.

51

P3528793

WASHER

SPACER - mounting bolt

1шт.

52

REF

INSTRUCTION

HOSE - control circuit, 51-3/16" (1300 mm) long, cut from P1103640

1шт.

53

P4037535

END FITTING

ADAPTER - straight, hose

1шт.

54

P4037537

END FITTING

ADAPTER - 90 degree, hose

1шт.

55

REF

INSTRUCTION

VALVE ASSEMBLY - parallel supply, parts list Figure 8-248

1шт.

56

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

57

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - swing and drive, see Figures 8-216 through 8-222

1шт.
