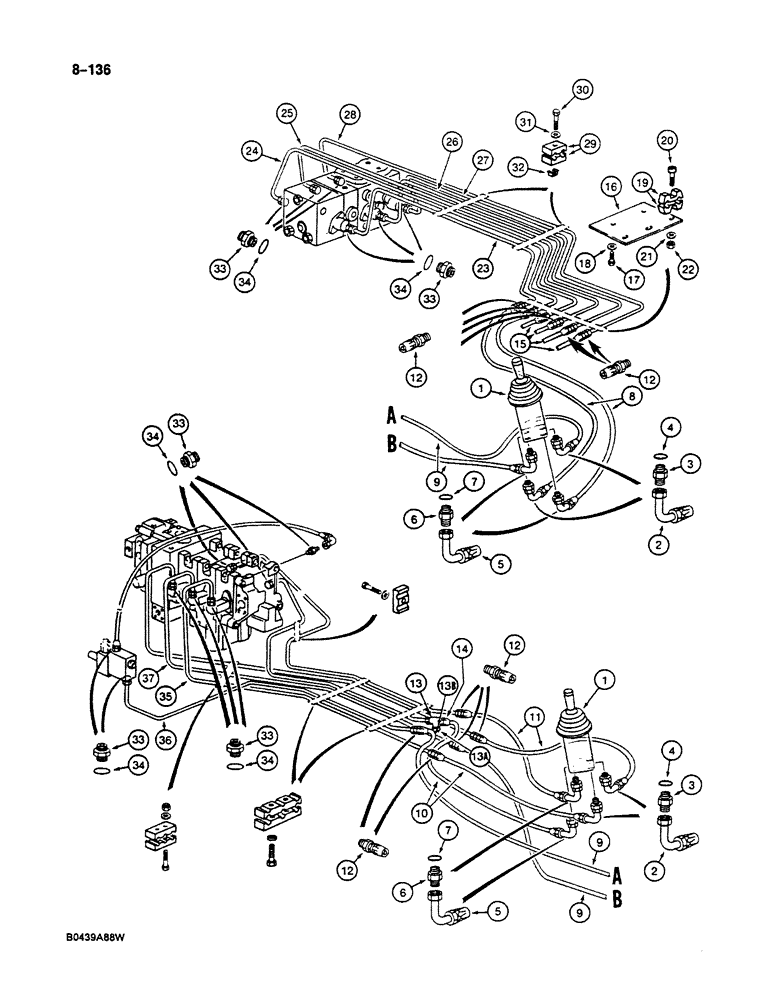

Запчасти Case 125B (8-136) - HYDRAULIC CIRCUIT FOR CONTROLS, TO MAIN CONTROL VALVES, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - hand, for correct assembly and components see Figures 8-232 and 8-234

2шт.

2

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

P4037504

UNION

ADAPTER ASSEMBLY - straight, control circuit hoses, Includes: Ref. 3 and 4

4шт.

3

NSS

NOT SOLD SEPARAT

ADAPTER - straight, control circuit hoses

1шт.

4

P7046042

SEAL

- adapter

1шт.

5

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

P4037505

UNION

ADAPTER ASSEMBLY - straight, control circuit hoses, Includes: Ref. 6 and 7

4шт.

6

NSS

NOT SOLD SEPARAT

ADAPTER - straight, control circuit hoses

1шт.

7

P7046042

SEAL

- adapter

1шт.

8

REF

INSTRUCTION

HOSE - control circuit, 78-3/4" (2000 mm) long, cut from P1103640

2шт.

9

REF

INSTRUCTION

HOSE - control circuit, 90-9/16" (2300 mm) long, cut from P1103640

2шт.

10

REF

INSTRUCTION

HOSE - control circuit, 98-7/16" (2500 mm) long, cut from P1103640

2шт.

11

REF

INSTRUCTION

HOSE - control circuit, 98-7/16" (2500 mm) long, cut from P1103640

2шт.

12

P4037536

END FITTING

ADAPTER - straight, control circuit, Serial Range: hoses-tubes

11шт.

13

P537294

TEE

- sender to control circuit

1шт.

13a

REF

INSTRUCTION

SENDER - electrical, heavy lift, see Figure 4-20 for electrical connections

1шт.

13b

P344419

WASHER, SEALING

WASHER - seal, Serial Range: sender-tee

1шт.

14

P4037535

END FITTING

ADAPTER - straight, control circuit hose at tee

1шт.

15

REF

INSTRUCTION

HOSE - tube to foot control valves, see Figure 8-128, Ref. 8 and 9

4шт.

16

P1822985

SUPPORT

PLATE - tube clamp mounting

1шт.

17

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Plate mounting Hex, M10 x 30, 8.8

2шт.

18

P3528795

WASHER

SPACER - mounting bolt

2шт.

19

P404292

SHIN

CLAMP - tube

6шт.

20

P632934

SCREW

BOLT - tube clamp mounting

3шт.

21

P3528793

WASHER

SPACER - mounting bolt

3шт.

22

P34596

LOCK NUT

NUT - hex

3шт.

23

P5249105

PIPE

TUBE - control circuit

1шт.

24

P5249104

PIPE

TUBE - control circuit

1шт.

25

P5249107

PIPE

TUBE - control circuit

1шт.

26

P5249106

PIPE

TUBE - control circuit

1шт.

27

P5249103

PIPE

TUBE - control circuit

1шт.

28

P5249102

PIPE

TUBE - control circuit

1шт.

29

P2120326

SHIN

CLAMP - tube

12шт.

30

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

BOLT, , Clamp Mounting Hex, M8 x 45, 8.8

6шт.

31

P3528794

WASHER

SPACER - mounting bolt

6шт.

32

P1634573

NUT

- mounting bolt

6шт.

33

P3037546

UNION

ADAPTER - straight, at valve ports

14шт.

34

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

14шт.

35

P5149198

PIPE

TUBE - control circuit

1шт.

36

P5249108

PIPE

TUBE - control circuit

1шт.

37

P5149199

PIPE

TUBE - control circuit

1шт.
