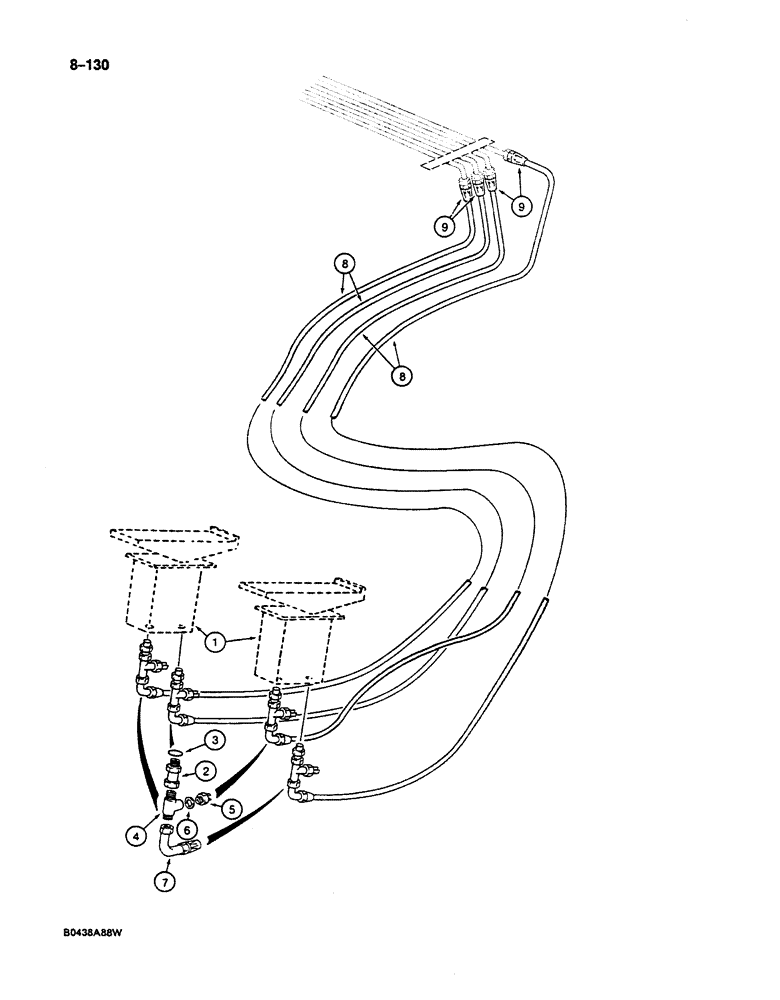

Запчасти Case 125B (8-130) - HYDRAULIC CIRCUIT FOR CONTROLS, CIRCUIT FOR TRAVEL SPEED (08) - HYDRAULICS

1

P1643394

BLOCK ASSY.

CONTROL VALVE ASSEMBLY - foot, for correct assembly and components see Figures 8-238 and 8-240

2шт.

P4037576

FITTING

ADAPTER ASSEMBLY - tube, tee to foot control valve, Includes: Ref. 2 and 3

4шт.

2

NSS

NOT SOLD SEPARAT

ADAPTER - tube, tee to foot control valve

1шт.

3

P7046042

SEAL

- adapter

1шт.

4

P1237223

TEE

- sender to control circuit

4шт.

5

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, travel speed, see Figure 4-44 for electrical connections

4шт.

6

P344419

WASHER, SEALING

WASHER - seal, Serial Range: sender-tee

4шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

8

REF

INSTRUCTION

HOSE - control circuit, 98-7/16" (2500 mm) long, cut from P1103640

4шт.

9

P4037589

END FITTING

ADAPTER - straight, control circuit hoses, see Figures 8-142 and 8-144 for connecting parts to main control valve

4шт.
