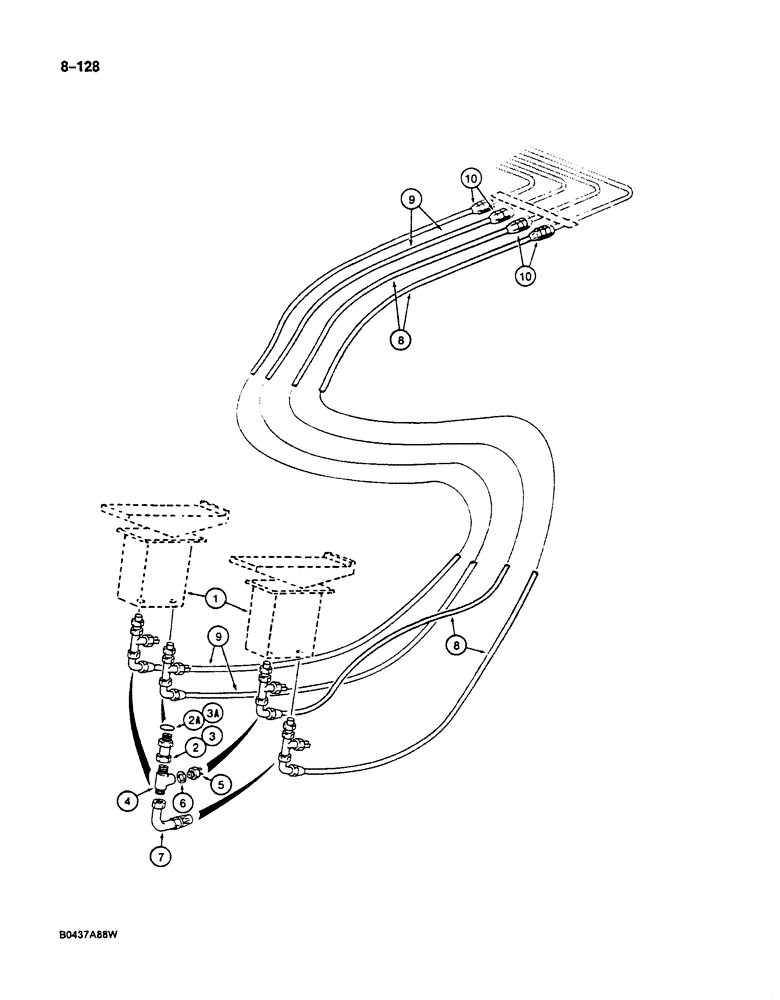

Запчасти Case 125B (8-128) - HYDRAULIC CIRCUIT FOR CONTROLS, CIRCUIT FOR TRAVEL SPEED, P.I.N. 74404 THRU 74844 (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - foot, for correct assembly and components see Figures 8-236 through 8-240

2шт.

2

P2337590

FITTING

ADAPTER - tube, tee to foot control valve, Serial Range: 74404-74630

4шт.

2a

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter, Serial Range: 74404-74630

4шт.

P4037546

FITTING

ADAPTER ASSEMBLY - tube, tee to foot control valve, Includes: Ref. 3 and 3A, Serial Range: 74631-74844

4шт.

3

NSS

NOT SOLD SEPARAT

ADAPTER - tube, tee to foot control valve

1шт.

3a

P7046042

SEAL

- adapter

1шт.

4

P537294

TEE

- sender to control circuit

4шт.

5

REF

INSTRUCTION

SENDER - electrical, travel speed, see Figures 4-42 and 4-44 for electrical connections

4шт.

6

P344419

WASHER, SEALING

WASHER - seal, Serial Range: sender-tee

4шт.

7

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

8

REF

INSTRUCTION

HOSE - control circuit, 78-3/4" (2000 mm) long, cut from P1103640

2шт.

9

REF

INSTRUCTION

HOSE - control circuit, 63" (1600 mm) long, cut from P1103640

2шт.

10

P4037546

FITTING

ADAPTER - straight, control circuit hoses, see Figures 8-132 and 8-134 for connecting parts to main control valve

4шт.
