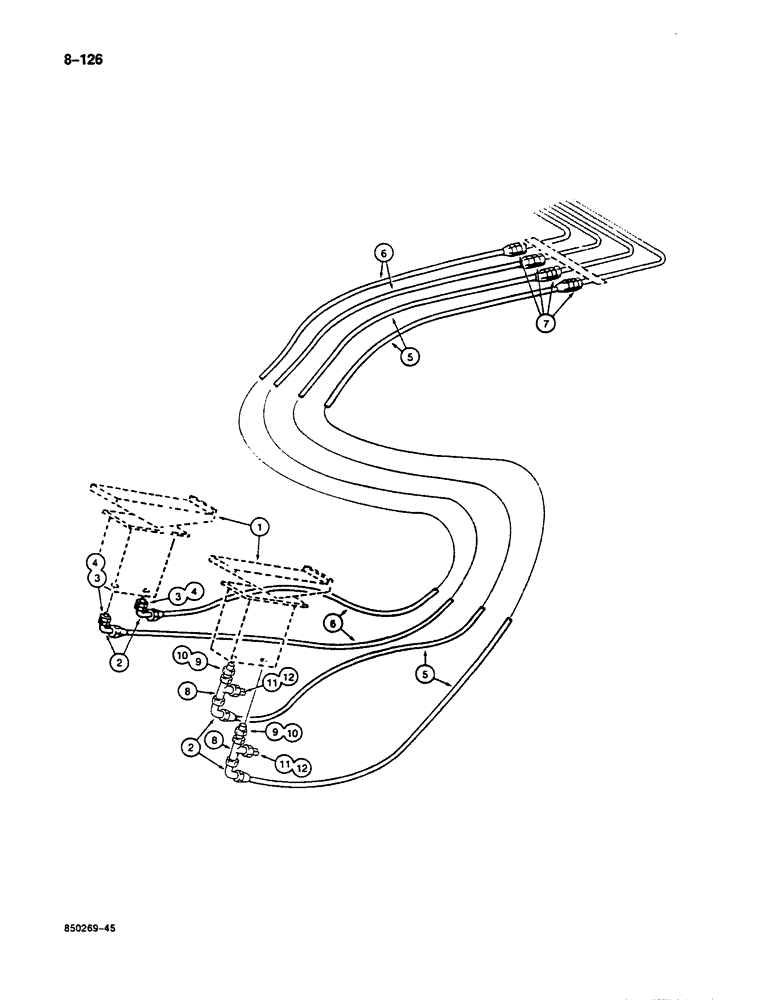

Запчасти Case 125B (8-126) - HYDRAULIC CIRCUIT FOR CONTROLS, CIRCUIT FOR TRAVEL SPEED, P.I.N. 74251 THRU 74403 (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - foot, parts list Figure 8-236

2шт.

2

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hoses

4шт.

3

P4037504

UNION

ADAPTER - straight

2шт.

4

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

2шт.

5

REF

INSTRUCTION

HOSE - control circuit, 78-3/4" (2000 mm) long, cut from P1103640

2шт.

6

REF

INSTRUCTION

HOSE - control circuit, 63" (1600 mm) long, cut from P1103640

2шт.

7

P4037536

END FITTING

ADAPTER - straight, control circuit hoses, see Figure 8-132 for connecting parts to main control valve

4шт.

8

P537294

TEE

- sender to control circuit

2шт.

9

P2337590

FITTING

ADAPTER - straight, tee to foot control valve

2шт.

10

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

2шт.

11

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, travel speed, see Figure 4-40 for electrical connections

2шт.

12

P344419

WASHER, SEALING

WASHER - seal, Serial Range: sender-tee

2шт.
