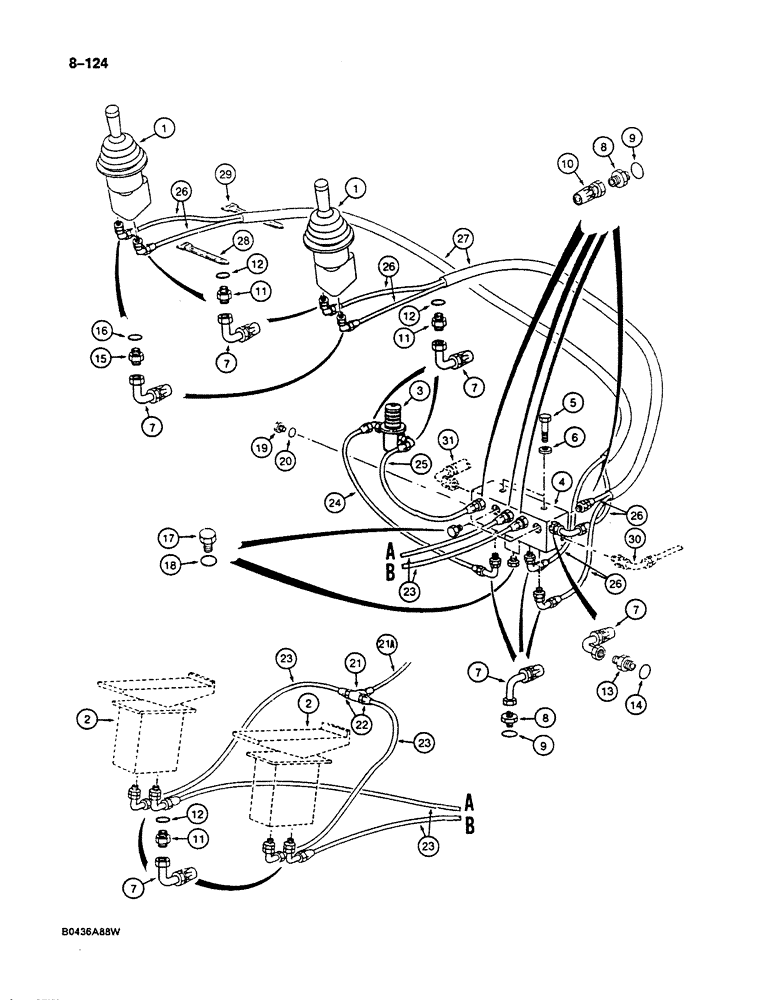

Запчасти Case 125B (8-124) - HYDRAULIC CIRCUIT FOR CONTROLS, MANIFOLD TO HAND & FOOT CONTROL VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - hand, for correct assembly and components see Figures 8-232 and 8-234

2шт.

2

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - foot, for correct assembly and components see Figures 8-238 and 8-240

2шт.

3

P1443532

PUMP

- foot

1шт.

4

P2643329

BLOCK ASSY.

MANIFOLD - control circuits

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Manifold mounting Hex, M10 x 30, 8.8

2шт.

6

P3528795

WASHER

SPACER - bolt

2шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

14шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 8 and 9

7шт.

8

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

9

P945295

SEAL

- adapter

1шт.

10

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

4шт.

P4037571

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 11 and 12

8шт.

11

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

12

P7046042

SEAL

- adapter

1шт.

P4037574

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

14

P945293

WASHER, SEALING

SEAL - adapter

1шт.

P4037572

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 15 and 16

2шт.

15

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

16

P7046042

SEAL

- adapter

1шт.

P1437456

PLUG

ASSEMBLY - manifold ports, Includes: Ref. 17 and 18

4шт.

17

NSS

NOT SOLD SEPARAT

PLUG - manifold ports

1шт.

18

P945295

SEAL

- plug

1шт.

P1337445

PLUG

ASSEMBLY - manifold port, end, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - manifold port, end

1шт.

20

P945293

WASHER, SEALING

SEAL - plug

1шт.

21

P937275

TEE

- control circuit lines

1шт.

21a

REF

INSTRUCTION

HOSE - control circuit, pressure, see Figure 8-80 for pilot control circuit

1шт.

22

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

2шт.

23

REF

INSTRUCTION

HOSE - control circuit, 27-9/16" (700 mm) long, cut from P1103640

4шт.

24

REF

INSTRUCTION

HOSE - control circuit, 19-11/16" (500 mm) long, cut from P1103640

1шт.

25

REF

INSTRUCTION

HOSE - control circuit, 15-3/4" (400 mm) long, cut from P1103640

1шт.

26

REF

INSTRUCTION

HOSE - control circuit, 63" (1600 mm) long, cut from P1103640

4шт.

27

P4931937

LOOM

SLEEVE - control circuit hoses from hand control valves

2шт.

28

P51946

CLAMP

TIE STRAP - control circuit hoses, small

1шт.

29

P136922

CLAMP

TIE STRAP - control circuit hoses, large

1шт.

30

REF

INSTRUCTION

HOSE - control circuit, pressure, see Figure 8-80 for pilot control circuit

1шт.

31

REF

INSTRUCTION

HOSE - control circuit, return, see Figure 8-100 for leak return circuit

1шт.
