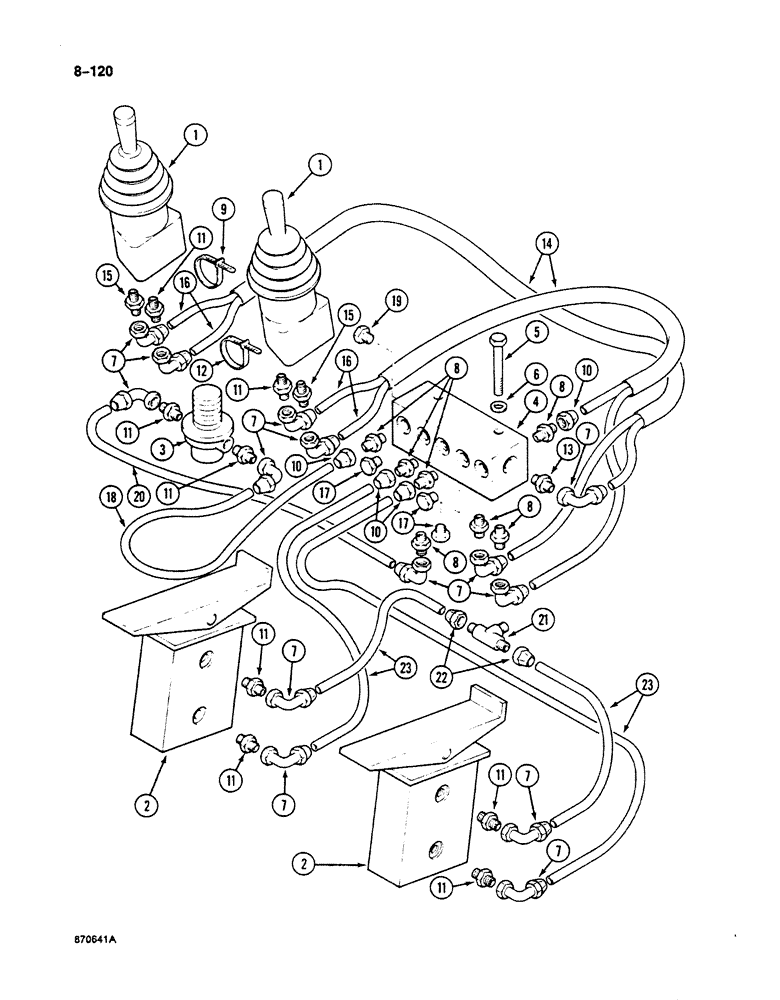

Запчасти Case 125B (8-120) - HYDRAULIC CIRCUIT FOR CONTROLS, MANIFOLD TO HAND AND FOOT CONTROL VALVES, P.I.N. 74251 THRU 74630 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, hand, see Figures 8-232 and 8-234

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - control, foot, see Figure 8-236

2шт.

3

P1443532

PUMP

- foot

1шт.

4

P2643329

BLOCK ASSY.

MANIFOLD - control circuits

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

6

P3528795

WASHER

SPACER - 7 mm thick, bolt

2шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

14шт.

8

P4037573

UNION

ADAPTER - straight

7шт.

P945295

SEAL

O-RING - adapter

1шт.

9

P136922

CLAMP

STRAP - tie, control circuit hoses, large

1шт.

10

P4037571

UNION

ADAPTER - straight, control circuit hoses

4шт.

11

P4037571

UNION

ADAPTER ASSEMBLY - straight

8шт.

P7046042

SEAL

O-RING - adapter

1шт.

12

P51946

CLAMP

STRAP - tie, control circuit hoses, small

1шт.

13

P4037574

UNION

ADAPTER - straight

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

14

P4931937

LOOM

SLEEVE - control circuit hoses from hand control valves

2шт.

15

P4037572

UNION

ADAPTER - straight

2шт.

P7046042

SEAL

O-RING - adapter

1шт.

16

REF

INSTRUCTION

HOSE - 63" (1600 mm) long, control circuit, cut from P1103640

4шт.

17

P1437456

PLUG

- manifold ports

4шт.

P945295

SEAL

O-RING - plug

1шт.

18

REF

INSTRUCTION

HOSE - 15-3/4" (400 mm) long, control circuit, cut from P1103640

1шт.

19

P1337445

PLUG

- manifold port, end

1шт.

P945293

WASHER, SEALING

O-RING - plug

1шт.

21

P937275

TEE

- control circuit lines

1шт.

22

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

2шт.

23

REF

INSTRUCTION

HOSE - 27-9/16" (700 mm) long, control circuit, cut from P1103640

4шт.

20

REF

INSTRUCTION

HOSE - 19-11/16" (500 mm) long, control circuit, cut from P1103640

1шт.
