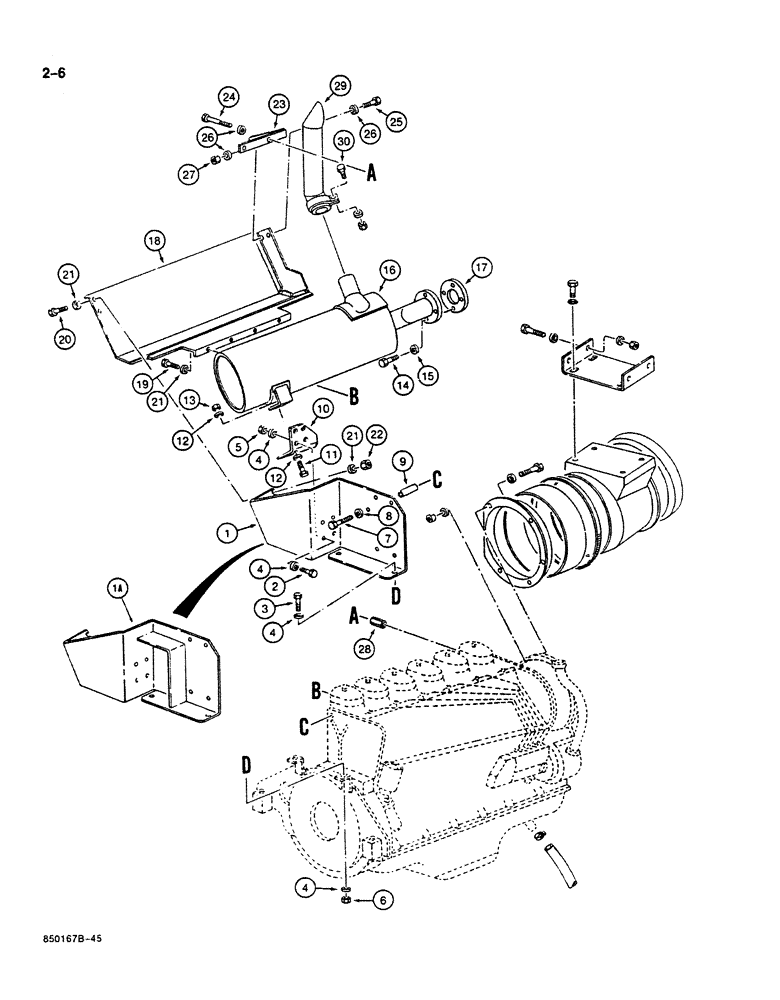

Запчасти Case 125B (2-06) - MUFFLER, EXHAUST SYS., & ENG. AIR COOLING ADAPTING PARTS, PIN 74251-74963, 21801-21868, 26801 & AFT. (02) - ENGINE

1

P2726359

SUPPORT

- muffler to engine, without welded brace, see Ref. 7, 8 and 9

1шт.

1a

P2726359

SUPPORT

- muffler to engine, with welded brace, does not require Ref. 7, 8 and 9

1шт.

2

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

muffler bracket to support Hex, M8 x 30, 8.8

4шт.

3

P133884

SCREW

BOLT -, Serial Range: support-engine

2шт.

4

P3528794

WASHER

SPACER - bolt

12шт.

5

P134596

SAFETY NUT

NUT - hex, bracket bolt

4шт.

6

P134596

SAFETY NUT

NUT - hex, support bolt

2шт.

7

P833889

SCREW

BOLT - support to engine, used with Ref. 1 support only

1шт.

8

P3528799

WASHER

SPACER - upper bolt to support, used with Ref. 1 support only

1шт.

9

P1231824

TUBE

SPACER - support to engine, used with Ref. 1 support only

1шт.

10

P2526708

SUPPORT

BRACKET - muffler mounting

1шт.

11

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

muffler to bracket Hex, M8 x 30, 8.8

2шт.

12

P3528794

WASHER

SPACER -, Serial Range: bolt-bracket

4шт.

13

P134596

SAFETY NUT

NUT - hex

2шт.

14

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Muffler flange to engine Hex, M10 x 30, 8.8

4шт.

15

P4328796

WASHER

SPACER - muffler bolt

4шт.

16

P3141450

MUFFLER

- engine

1шт.

17

P1246096

SEAL

GASKET - muffler flange

1шт.

Ref #17 - mtg. brkt. reinforced at S/N 74824

1шт.

18

P4340328

VENT MANIFOLD

SHIELD - heat, muffler

1шт.

Ref #18 - may be square shaped

1шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Heat Shield, Lower Hex, M8 x 25, 8.8

4шт.

20

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

heat shield, upper Hex, M8 x 30, 8.8

2шт.

21

P3528794

WASHER

SPACER - bolt, heat shield

8шт.

22

P134596

SAFETY NUT

NUT - hex, upper bolt

2шт.

23

P4728227

SUPPORT

BRACKET - support, heat shield

1шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Bracket to Engine Hex, M8 x 25, 8.8

2шт.

25

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

bracket to shield Hex, M8 x 30, 8.8

2шт.

26

P3528794

WASHER

SPACER - bracket bolt

6шт.

27

P134596

SAFETY NUT

NUT - hex, bracket bolt

2шт.

28

P1540325

SPACER

-, Serial Range: bracket-engine

2шт.

29

P2750152

PIPE, EXHAUST SYSTEM

PIPE - engine exhaust, includes clamp

1шт.

30

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

clamp Hex, M8 x 30, 8.8

1шт.
