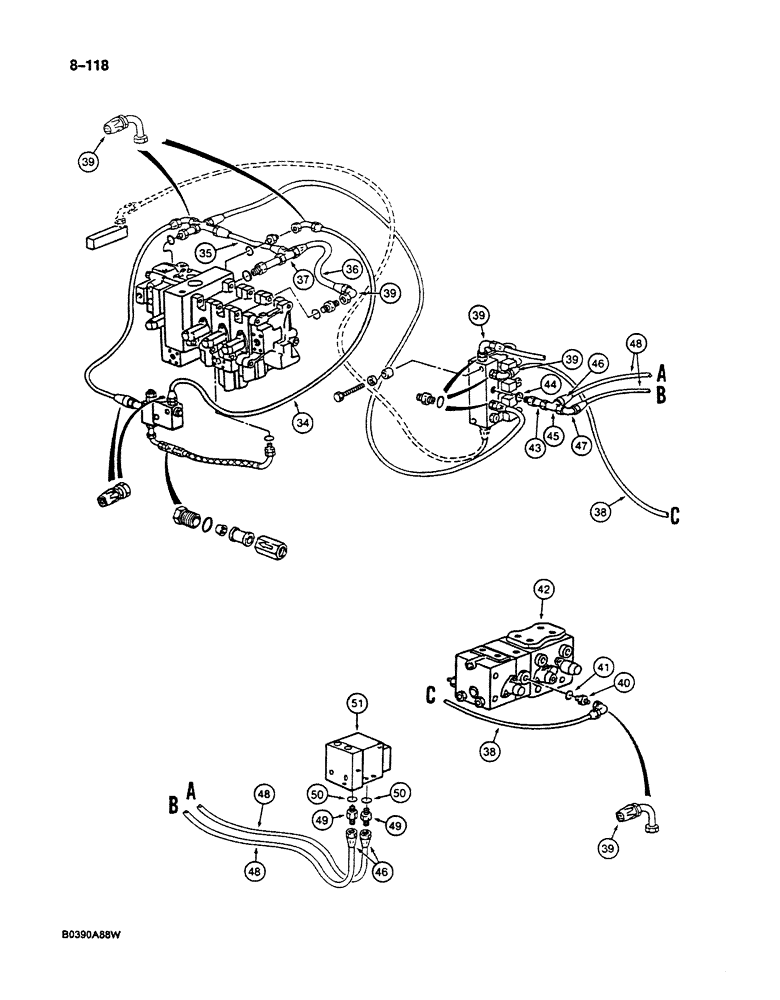

Запчасти Case 125B (8-118) - HYDRAULIC CIRCUIT FOR CONTROLS, SOLENOID VALVE TO MAIN CONTROL VALVES & SWIVEL (08) - HYDRAULICS

34

REF

INSTRUCTION

HOSE - control circuit, parallel supply valve to attachment valve, 51-3/16" (1300 mm) long, cut from P1103640

1шт.

35

REF

INSTRUCTION

HOSE - control circuit, cross to attachment valve tee, 19-13/16" (500 mm) long, cut from P1103640

1шт.

36

REF

INSTRUCTION

HOSE - control circuit, tee to attachment valve, 15-3/4" (400 mm) long, cut from P1103640

1шт.

37

P937275

TEE

- control circuit, at attachment valve

1шт.

38

REF

INSTRUCTION

HOSE - control circuit, solenoid control valve to swing and drive valve, 63" (1600 mm) long, cut from P1103640

1шт.

39

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

6шт.

P4037590

END FITTING

ADAPTER ASSEMBLY - straight, to valve, Includes: Ref. 40 and 41

1шт.

40

NSS

NOT SOLD SEPARAT

ADAPTER -, Serial Range: straight,-valve

1шт.

41

P945295

SEAL

- adapter

1шт.

42

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-216 through 8-222, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

ADAPTER - tube, control circuit hose

1шт.

44

P7046042

SEAL

- adapter

1шт.

45

P937275

TEE

- control circuit hose, solenoid control valve to power sensing valve

1шт.

46

P4037588

END FITTING

ADAPTER - straight, control circuit hose

3шт.

47

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

48

REF

INSTRUCTION

HOSE - control circuit, tee to power sensing valve, 63" (1600 mm) long, cut from P1103640

2шт.

P4043315

BLOCK ASSY.

ADAPTER ASSEMBLY - straight, Includes: Ref. 49 and 50

2шт.

49

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

50

P945295

SEAL

- adapter

1шт.

51

REF

INSTRUCTION

VALVE ASSEMBLY - power sensing, parts list Figure 8-250

1шт.
