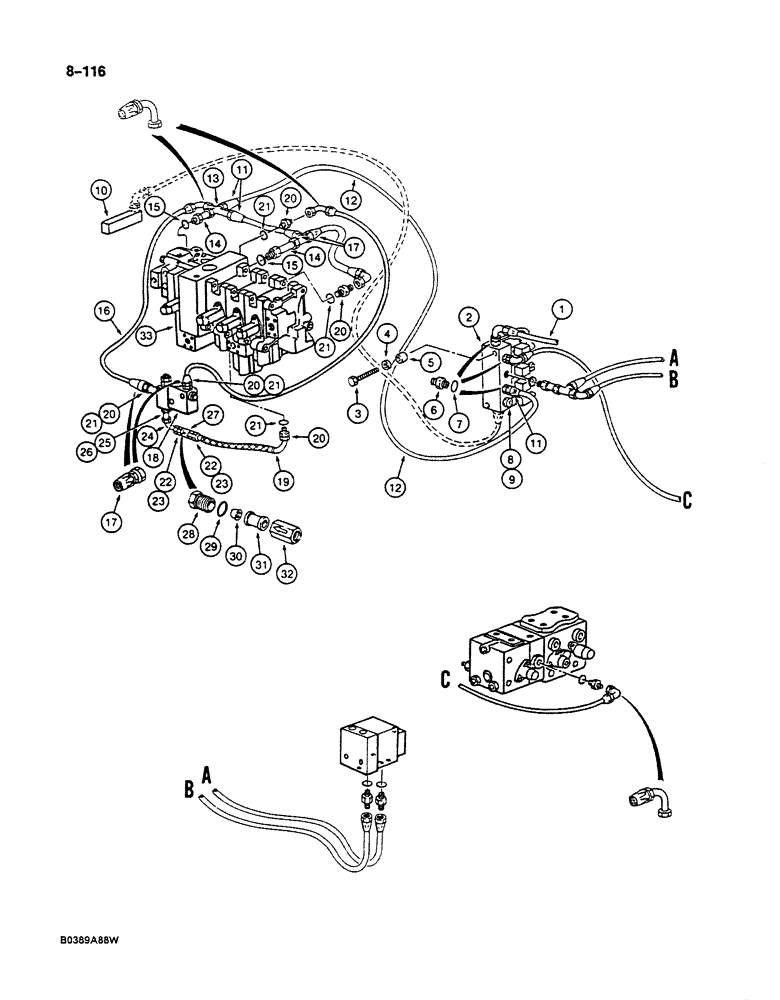

Запчасти Case 125B (8-116) - HYDRAULIC CIRCUIT FOR CONTROLS, SOLENOID VALVE TO MAIN CONTROL VALVES & SWIVEL (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - control circuit pressure, see Figure 8-62, reference number 16A for connecting parts

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, parts list Figure 8-246

1шт.

3

P733038

SCREW

BOLT - hex head, 6 mm x 40 mm, full threaded, valve mounting

2шт.

4

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

5

P4328728

WASHER

SPACER - bolt, 12 mm thick

2шт.

P4037571

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 6 and 7

3шт.

6

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

7

P7046043

SEAL - adapter

1шт.

P1437455

PLUG

ASSEMBLY - solenoid valve port, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - solenoid valve port

1шт.

9

P7046042

SEAL

- plug

1шт.

10

REF

INSTRUCTION

MANIFOLD - leak return, see Figure 8-88 for connecting parts, Includes: Ref. 11

1шт.

11

P4037588

END FITTING

ADAPTER - straight, control circuit hose

3шт.

12

REF

INSTRUCTION

HOSE - control circuit, 27-9/16" (700 mm) long, cut from P1103640

1шт.

13

P1237220

CROSS

- hose, at valve

1шт.

P4037577

FITTING

TUBE ASSEMBLY - adapter, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

TUBE - adapter

1шт.

15

P945295

SEAL

- adapter tube

1шт.

16

REF

INSTRUCTION

HOSE - control circuit, 31-1/2" (800 mm) long, cut from P1103640

1шт.

17

P4037588

END FITTING

ADAPTER - straight, control circuit hose

4шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY - parallel supply, parts list Figure 8-248

1шт.

19

P6631919

HOSE

- parallel supply valve to attachment valve, 31-1/2" (800 mm) long

1шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 20 and 21

5шт.

20

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

21

P945295

SEAL

- adapter

1шт.

P4037584

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 22 and 23

5шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - straight, filter to hose and tube

2шт.

23

P7046042

SEAL

- adapter

1шт.

24

P1737019

ANGLE

TUBE - filter to parallel supply valve

1шт.

P4037577

FITTING

TUBE ASSEMBLY - adapter, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

TUBE - adapter

1шт.

26

P942595

SEAL - adapter tube

1шт.

27

P7646290

ASSEMBLY

FILTER ASSEMBLY - parallel supply valve, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

CAP - filter assembly

1шт.

29

P1145268

SEAL

O-RING - cap

1шт.

30

NSS

NOT SOLD SEPARAT

CONE - filter assembly

1шт.

31

P1950574

CARTRIDGE

ELEMENT - filter assembly

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - filter assembly

1шт.

33

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-204 through 8-214

1шт.
