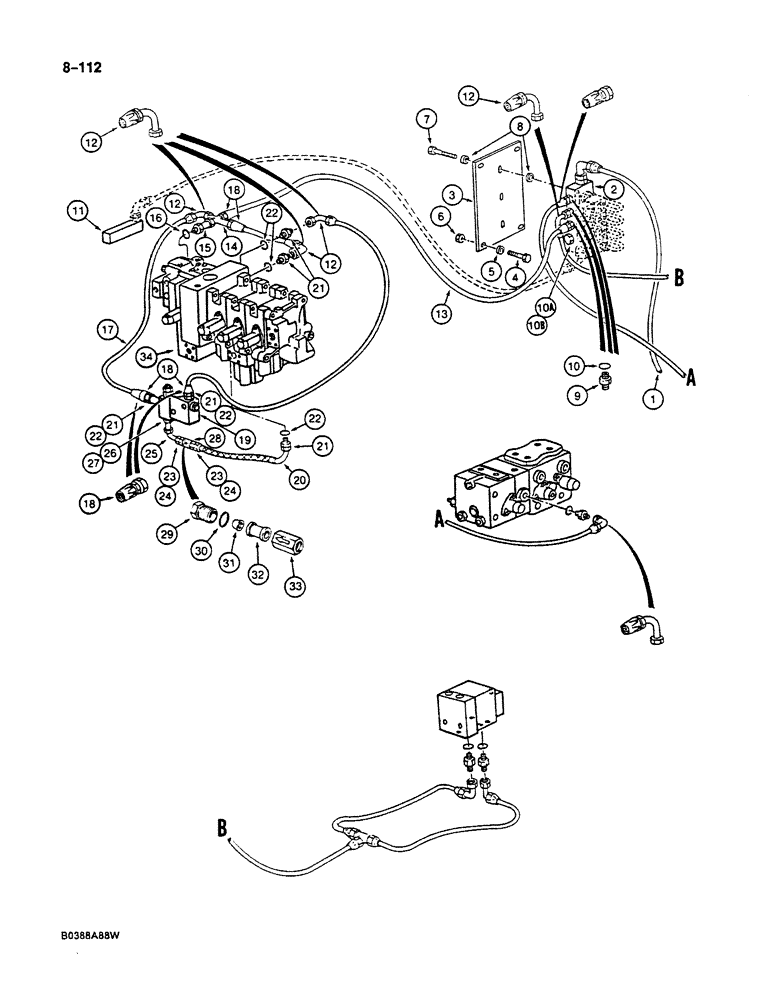

Запчасти Case 125B (8-112) - HYD. CIRCUIT FOR CONTROLS, SOLENOID VALVE TO MAIN CONTROL VALVES & SWIVEL, P.I.N. 74631 THRU 74844 (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - control circuit pressure, see Figure 8-58, reference number 16A for connection parts

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, parts list Figure 8-246

1шт.

3

P4223318

SUPPORT

PLATE - mounting, solenoid valve

1шт.

4

P933818

SCREW

BOLT - plate mounting

4шт.

5

P3528795

WASHER

SPACER - bolt

4шт.

6

P34598

SAFETY NUT

NUT - hex, mounting bolt

4шт.

7

P33808

SCREW

BOLT -, Serial Range: valve-plate

2шт.

8

P3528799

WASHER

SPACER - bolt

4шт.

P4037504

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 9 and 10

3шт.

9

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

10

P7046042

SEAL

- adapter

1шт.

10a

P1737452

PLUG

- solenoid valve port

1шт.

10b

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

11

REF

INSTRUCTION

MANIFOLD - leak return, see Figure 8-84 for connecting parts

1шт.

12

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

13

REF

INSTRUCTION

HOSE - control circuit, 27-9/16" (700 mm) long, cut from P1103640

1шт.

14

P937219

CROSS

- hose, at valve

1шт.

15

P3037561

FITTING

TUBE - adapter

1шт.

16

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter tube

1шт.

17

REF

INSTRUCTION

HOSE - control circuit, 31-1/2" (800 mm) long, cut from P1103640

1шт.

18

P4037535

END FITTING

ADAPTER - straight, hose

4шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - parallel supply, parts list Figure 8-248, Includes: Ref. 20

1шт.

20

P4831901

HOSE

- parallel supply valve to attachment valve, 31-1/2" (800 mm) long

1шт.

21

P3037546

UNION

ADAPTER - straight

5шт.

22

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter tube

5шт.

23

P3237574

UNION

ADAPTER - straight, filter to hose and tube

2шт.

24

P7046042

SEAL

- adapter

2шт.

25

P1737031

ANGLE

TUBE - filter to parallel supply valve

1шт.

26

P3037561

FITTING

TUBE - adapter

1шт.

27

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter tube

1шт.

28

P7646290

ASSEMBLY

FILTER ASSEMBLY - parallel supply valve, Includes: Ref. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

CAP - filter assembly

1шт.

30

P1145268

SEAL

O-RING - cap

1шт.

31

NSS

NOT SOLD SEPARAT

CONE - filter assembly

1шт.

32

P1950574

CARTRIDGE

ELEMENT - filter assembly

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - filter assembly

1шт.

34

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-204 through 8-214

1шт.
