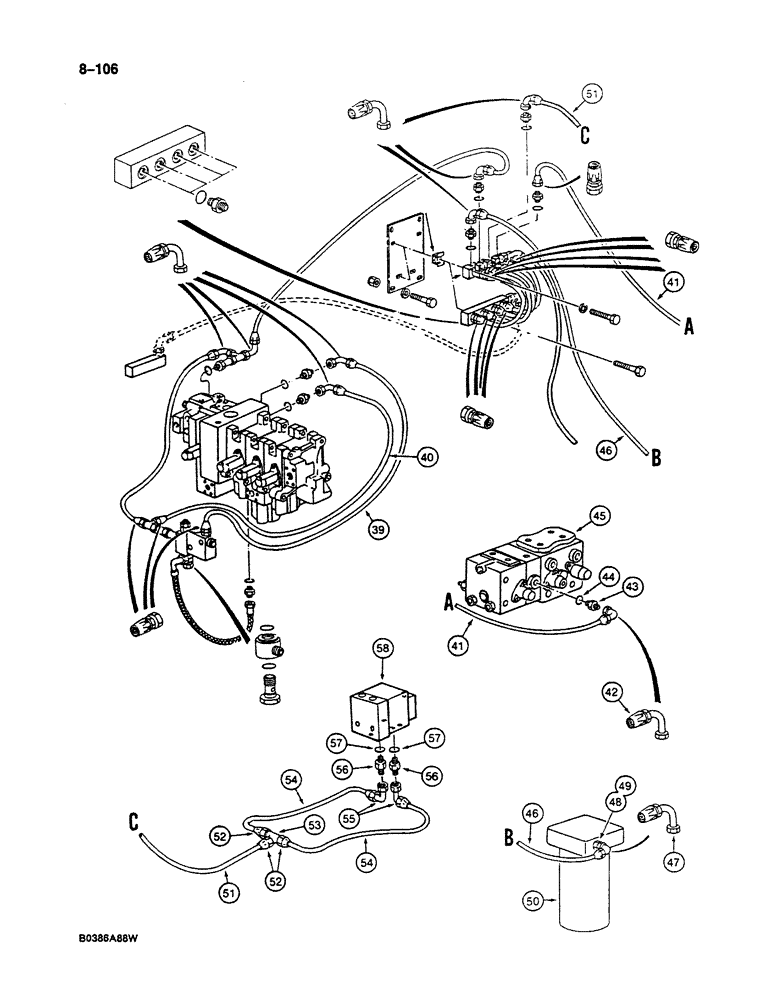

Запчасти Case 125B (8-106) - HYD. CIRCUIT FOR CONTROLS, SOLENOID VALVE TO MAIN CONTROL VALVES AND SWIVEL, P.I.N. 74251 THRU 74281 (08) - HYDRAULICS

39

REF

INSTRUCTION

HOSE - control circuit, to attachment valve, 51-3/16" (1300 mm) long, cut from P1103640

1шт.

40

REF

INSTRUCTION

HOSE - control circuit, to attachment valve, 39-3/8" (1000 mm) long, cut from P1103640

1шт.

41

REF

INSTRUCTION

HOSE - control circuit, to swing and drive valve, 63" (1600 mm) long, cut from P1103640

1шт.

42

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

43

P3037546

UNION

ADAPTER -, Serial Range: straight,-valve

1шт.

44

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

45

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-216 through 8-222

1шт.

46

REF

INSTRUCTION

HOSE - control circuit, to swivel, 98-7/16" (2500 mm) long, cut from P1103640

1шт.

47

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

48

P2337589

UNION

ADAPTER -, Serial Range: straight,-swivel

1шт.

49

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

50

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

51

REF

INSTRUCTION

HOSE - control circuit, solenoid control valve to tee, 51-3/16" (1300 mm) long, cut from P1103640

1шт.

52

P4037535

END FITTING

ADAPTER - straight, control circuit hose

3шт.

53

P37236

TEE

- control circuit hose

1шт.

54

REF

INSTRUCTION

HOSE - control circuit, tee to power sensing valve, 27-9/16" (700 mm) long, cut from P1103640

2шт.

55

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

56

P1343376

BLOCK ASSY.

ADAPTER - straight

2шт.

57

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

58

REF

INSTRUCTION

VALVE ASSEMBLY - power sensing, parts list Figure 8-250

1шт.
