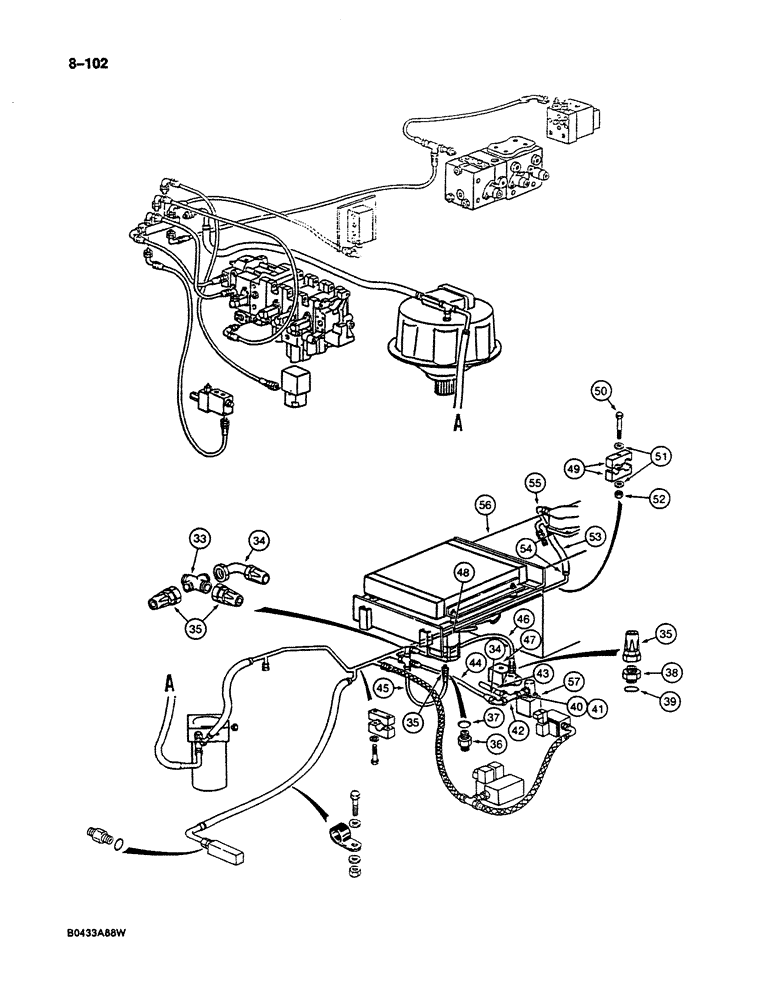

Запчасти Case 125B (8-102) - HYDRAULIC COMPONENTS LEAK RETURN CIRCUIT, LINES TO RESERVOIR (08) - HYDRAULICS

33

P1237220

CROSS

- hydraulic, leak return lines

1шт.

34

P4037590

END FITTING

ADAPTER - 90 degree, leak return lines

2шт.

35

P4037588

END FITTING

ADAPTER - straight, leak return lines

4шт.

P4037571

UNION

ADAPTER ASSEMBLY - straight, cooler fan motor, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

ADAPTER - stright, cooler fan motor

1шт.

37

P7046042

SEAL

O-RING - adapter

1шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, pressure regulator valve, Includes: Ref. 38 and 39

1шт.

38

NSS

NOT SOLD SEPARAT

ADAPTER - straight, pressure regulator valve

1шт.

39

P945295

SEAL

- adapter

1шт.

P4037577

FITTING

ADAPTER ASSEMBLY - tube, tee to valve, Includes: Ref. 40 and 41

1шт.

40

NSS

NOT SOLD SEPARAT

ADAPTER - tube, Serial Range: tee-valve

1шт.

41

P945295

SEAL

- adapter

1шт.

42

P937275

TEE

- leak return, at regulator valve

1шт.

43

REF

INSTRUCTION

HOSE - tee to relief valve, see Figure 8-80 for pilot control circuit

1шт.

44

REF

INSTRUCTION

HOSE - leak return, 27-9/16" (700 mm) long, cut from P1103640

1шт.

45

REF

INSTRUCTION

HOSE - leak return, 27-9/16" (700 mm) long, cut from P1103640

1шт.

46

REF

INSTRUCTION

HOSE - leak return, 19-5/8" (500 mm) long, cut from P1103640

1шт.

47

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, parts list Figure 8-254

1шт.

48

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, oil cooler fan, see Figures 8-276 and 8-278 for correct assembly and components

1шт.

49

P3920314

SHIN

CLAMP - tube

2шт.

50

P33824

SCREW

BOLT - clamp

1шт.

51

P3528795

WASHER

SPACER - clamp bolt

2шт.

52

P34598

SAFETY NUT

NUT - hex, clamp bolt

1шт.

53

REF

INSTRUCTION

HOSE - return, at filter, 27-9/16" (700 mm) long, cut from P1103609

1шт.

54

P36935

COLLAR CLAMP

CLAMP - hose

2шт.

55

P2750132

MANIFOLD

TUBE - manifold, at filter, see Figure 8-62 for additional hydraulic return lines

1шт.

56

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figures 8-2 and 8-4 for hydraulic reservoir parts

1шт.

57

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, parts list Figures 8-260 and 8-262, see Figures 8-260 and 8-262 for visual differences of internal parts

1шт.
