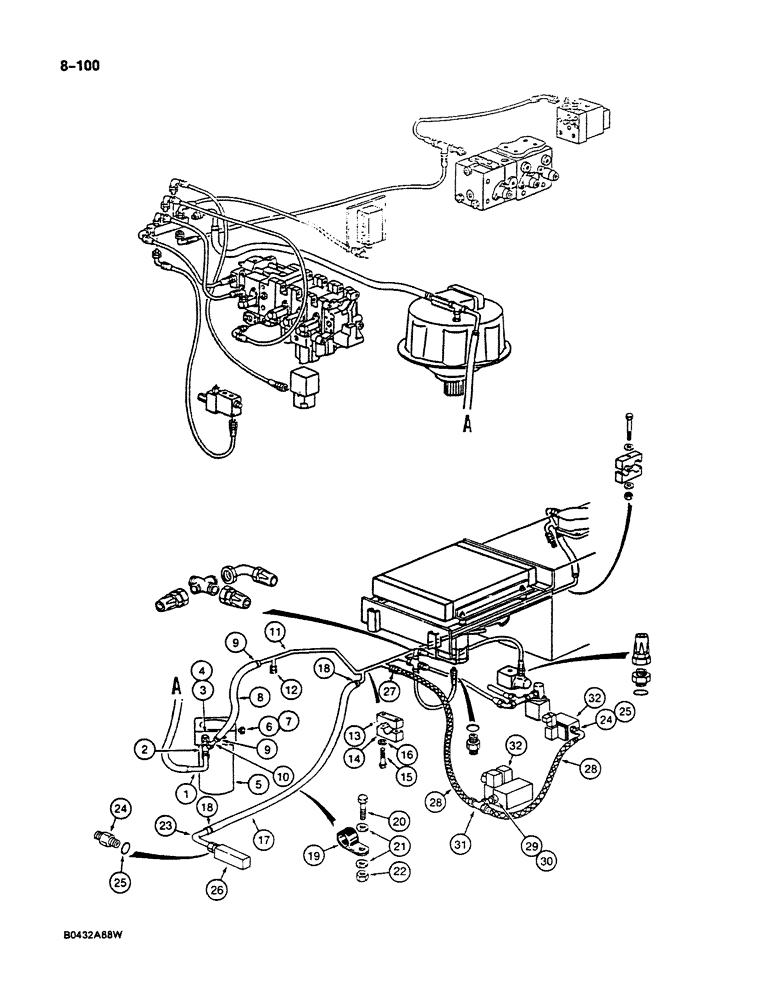

Запчасти Case 125B (8-100) - HYD. COMPONENTS LEAK RETURN CIRCUIT, LINES TO RESERVOIR, P.I.N. 74845-74963, 21801-21868,26801 & AFT (08) - HYDRAULICS

1

P5847163

PIPE

TUBE - return, at tee

1шт.

2

P37234

TEE

- return, at swivel

1шт.

P2337594

FITTING

ADAPTER ASSEMBLY - straight, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

4

P5746063

SEAL

- adapter

1шт.

5

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

P1437458

PLUG

ASSEMBLY - hydraulic swivel, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - hydraulic swivel

1шт.

7

P5746063

SEAL

- plug

1шт.

8

REF

INSTRUCTION

HOSE - leak return, 31-1/2" (800 mm) long, cut from P1103609

1шт.

9

P36935

COLLAR CLAMP

CLAMP - hose

2шт.

10

P3837615

PIPE

TUBE - hose at tee

1шт.

11

P3750116

RETURN PIPE

TUBE - manifold, return lines

1шт.

12

P137413

PLUG

- manifold tube

1шт.

13

P120360

SHIN

CLAMP - tube, upper

1шт.

14

P120361

SHIN

CLAMP - tube, lower

1шт.

15

P433814

SCREW

BOLT - tube clamp

2шт.

16

P3528795

WASHER

SPACER - clamp bolt

2шт.

17

REF

INSTRUCTION

HOSE - manifold tube to pilot hose manifold, 63" (1600 mm) long, cut from P1103607

1шт.

18

P1236902

COLLAR CLAMP

CLAMP - hose

2шт.

19

P51958

CLAMP

- hose, at frame

1шт.

20

P133884

SCREW

BOLT - clamp

1шт.

21

P3528794

WASHER

SPACER - clamp bolt

2шт.

22

P134596

SAFETY NUT

NUT - hex, clamp bolt

1шт.

23

P5847187

PIPE

TUBE -, Serial Range: hose-manifold

1шт.

P2337592

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 24 and 25

2шт.

24

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

25

P945293

WASHER, SEALING

SEAL - adapter

1шт.

26

REF

INSTRUCTION

MANIFOLD - pilot hose, see Figure 8-124 for connecting parts to hand and foot control valves

1шт.

27

P37550

UNION

ADAPTER - hose to manifold tube

1шт.

28

P3731901

HOSE

- 24-13/16" (630 mm) long, solenoid control valves to manifold tube

2шт.

P2337593

FITTING

ADAPTER ASSEMBLY - tube, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

30

P945293

WASHER, SEALING

SEAL - adapter

1шт.

31

P37230

TEE

- hose to solenoid valve

1шт.

32

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, parts list Figure 8-242

2шт.
