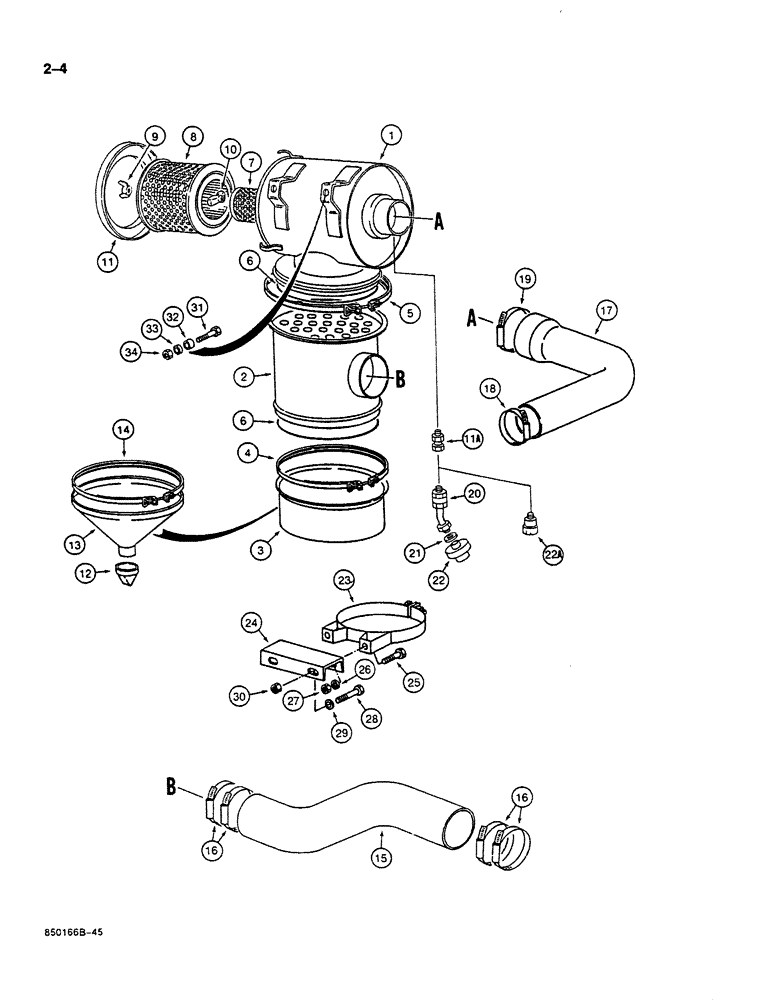

Запчасти Case 125B (2-04) - AIR CLEANER AND AIR INTAKE PARTS, OPTIONAL HEAVY DUTY - USED WITH PRECLEANER (02) - ENGINE

P850553

AIR CLEANER

ASSEMBLY - complete, Include: Ref. 1 - 11A

1шт.

1

P850548

BODY

- air cleaner

1шт.

2

P850557

BODY

- precleaner

1шт.

3

P850552

BOWL

CUP - dust, precleaner, without dust valve

1шт.

4

P1036959

CLAMP

- dust, Serial Range: cup-precleaner

1шт.

5

P1036958

CLAMP

- precleaner to air cleaner

1шт.

6

P1246069

SEAL

- precleaner to dust cup and air cleaner body

2шт.

7

A43657

FILTER

ELEMENT - secondary, inner

1шт.

8

A43656

FILTER

ELEMENT - primary, outer

1шт.

9

P34405

THUMB SCREW

WING NUT - Primary, Serial Range: element-body

1шт.

10

P2141610

INDICATOR

WING NUT - Restriction indicator, secondary, Serial Range: element-body

1шт.

11

P740457

COVER

- end, air cleaner

1шт.

11a

P1037418

PLUG

ADAPTER - air restriction indicator sender

1шт.

12

P450542

VALVE

DUST VALVE - rubber

1шт.

13

P1950533

BOWL

CUP - dust, precleaner, used with dust valve

1шт.

14

P3036951

CLAMP

- dust, Serial Range: cup-precleaner

1шт.

15

P3231973

INTAKE AIR HOSE,127.00 mm ID x 606.00 mm

- Air intake to air cleaner 127.00 mm ID x 606.00 mm

1шт.

16

P1036955

COLLAR CLAMP

CLAMP - air intake hose

4шт.

17

P6731913

LARGE HOSE

HOSE - air, Serial Range: cleaner-engine

1шт.

18

P36946

COLLAR CLAMP

CLAMP -, Serial Range: hose-engine

1шт.

19

P1036955

COLLAR CLAMP

CLAMP - hose to air cleaner

1шт.

20

P2949250

PIPE

TUBE ASSEMBLY - air restriction indicator, used with sender, reference number 22

1шт.

21

P28424

COMPOSITE SEAL

GASKET - indicator to tube, used with sender, reference number 22

1шт.

22

P641617

INDICATOR

SENDER - air restriction indicator, if used

1шт.

22a

P2141684

INDICATOR

SENDER - air restriction indicator, if used

1шт.

23

P136947

COLLAR CLAMP

CLAMP - precleaner to bracket, includes bolt and nut

1шт.

24

P1425934

SUPPORT

BRACKET - precleaner clamp

1шт.

25

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Clamp to bracket Hex, M10 x 30, 8.8

2шт.

26

P545520

WASHER

- flat

2шт.

27

P34598

SAFETY NUT

NUT - hex

2шт.

28

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, - Bracket mounting Hex, M10 x 25, 10.9, Full Thd

2шт.

29

P545520

WASHER

- flat

2шт.

30

P1334560

NUT

- hex

2шт.

31

P133813

SCREW

BOLT - bracket, air cleaner body

2шт.

32

P228729

BUSHING

SPACER - air cleaner bracket

2шт.

33

P545520

WASHER

- flat

2шт.

34

P34598

SAFETY NUT

NUT - hex

2шт.
