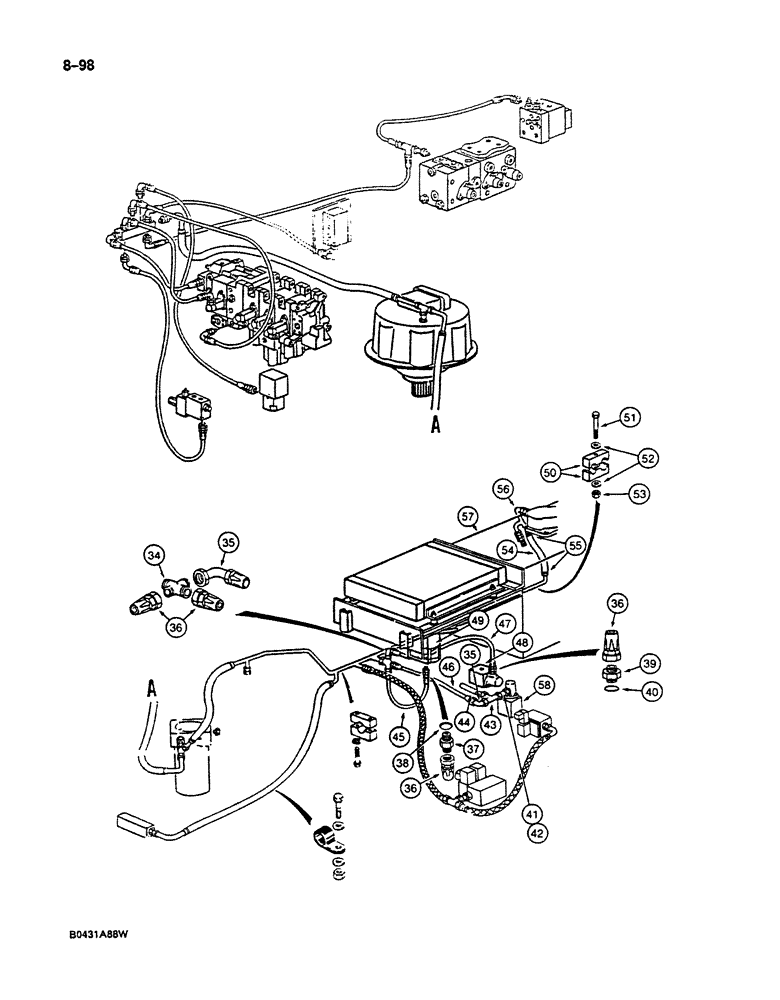

Запчасти Case 125B (8-098) - HYDRAULIC COMPONENTS LEAK RETURN CIRCUIT, LINES TO RESERVOIR, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

34

P937219

CROSS

- hydraulic, leak return lines

1шт.

35

P4037537

END FITTING

ADAPTER - 90 degree, leak return lines

2шт.

36

P4037535

END FITTING

ADAPTER - straight, leak return lines

4шт.

P4037504

UNION

ADAPTER ASSEMBLY - straight, cooler fan motor, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

ADAPTER - straight, cooler fan motor

1шт.

38

P7046042

SEAL

O-RING - adapter

1шт.

39

P3037546

UNION

ADAPTER - straight, pressure regulator valve

1шт.

40

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

41

P3037561

FITTING

ADAPTER - tube, Serial Range: tee-valve

1шт.

42

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

43

P37236

TEE

- leak return, at regulator valve

1шт.

44

REF

INSTRUCTION

HOSE - tee to relief valve, see Figure 8-76 for pilot control circuit

1шт.

45

REF

INSTRUCTION

HOSE - leak return, 2.3 ft (0.7 m) long, cut from P1103640

1шт.

46

REF

INSTRUCTION

HOSE - leak return, 2.3 ft (0.7 m) long, cut from P1103640

1шт.

47

REF

INSTRUCTION

HOSE - leak return, 1.7 ft (0.5 m) long, cut from P1103640

1шт.

48

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, parts list Figure 8-254

1шт.

49

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, oil cooler fan, see Figures 8-276 and 8-278 for correct assembly and components

1шт.

50

P3920314

SHIN

CLAMP - tube

2шт.

51

P33824

SCREW

BOLT - clamp

1шт.

52

P3528795

WASHER

SPACER - clamp bolt

2шт.

53

P34598

SAFETY NUT

NUT - hex, clamp bolt

1шт.

54

REF

INSTRUCTION

HOSE - return, at filter, 2.3 ft (0.7 m) long, cut from P1103609

1шт.

55

P36935

COLLAR CLAMP

CLAMP - hose

2шт.

56

P2750132

MANIFOLD

TUBE - manifold, at filter, see Figure 8-58 for additional hydraulic return lines

1шт.

57

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figures 8-2 and 8-4 for hydraulic reservoir parts

1шт.

58

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, parts list Figures 8-260 and 8-262, see Figures 8-260 and 8-262 for visual differences of internal parts.

1шт.
