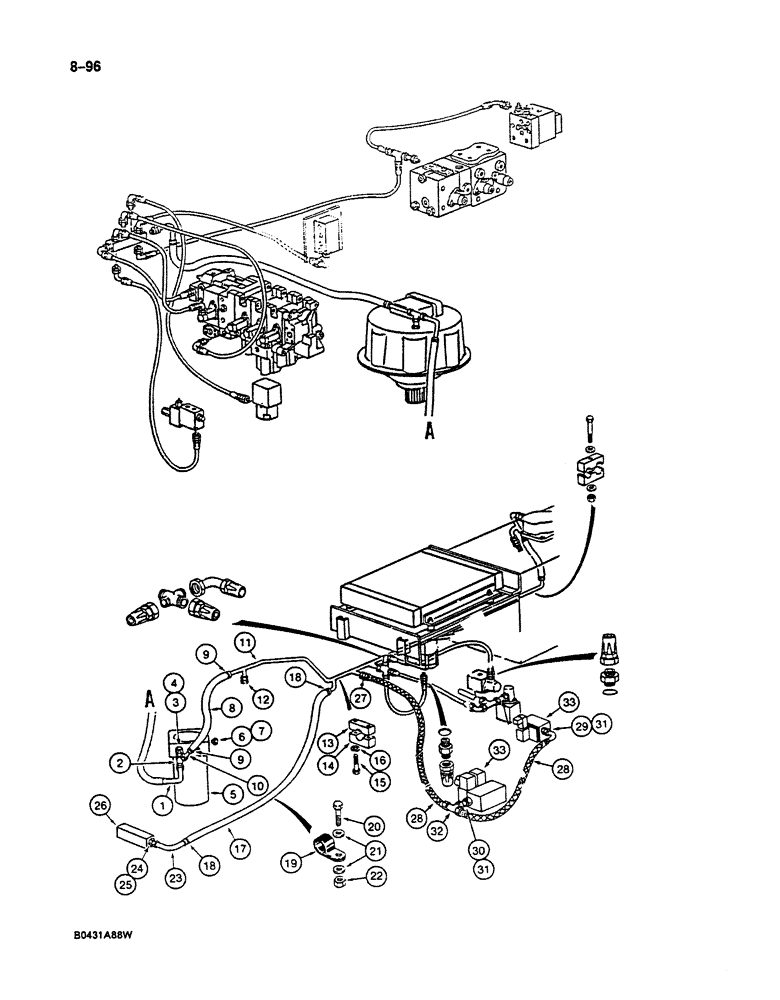

Запчасти Case 125B (8-096) - HYDRAULIC COMPONENTS LEAK RETURN CIRCUIT, LINES TO RESERVOIR, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

1

P5847163

PIPE

TUBE - return, at tee

1шт.

2

P37234

TEE

- return, at swivel

1шт.

3

P2337594

FITTING

ADAPTER - straight

1шт.

4

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

5

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

6

P1737444

PLUG

- hydraulic swivel

1шт.

7

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- plug

1шт.

8

REF

INSTRUCTION

HOSE - leak return, 2.6 ft (0.8 m) long, cut from P1103609

1шт.

9

P36935

COLLAR CLAMP

CLAMP - hose

2шт.

10

P3837615

PIPE

TUBE - hose at tee

1шт.

11

P2750161

PIPE

TUBE - manifold, return lines

1шт.

12

P137413

PLUG

- manifold tube

1шт.

13

P120360

SHIN

CLAMP - tube, upper

1шт.

14

P120361

SHIN

CLAMP - tube, lower

1шт.

15

P433814

SCREW

BOLT - tube clamp

2шт.

16

P3528795

WASHER

SPACER - clamp bolt

2шт.

17

REF

INSTRUCTION

HOSE - at manifold tube, 5.3 ft (1.6 m) long, cut from P1103607

1шт.

18

P1236902

COLLAR CLAMP

CLAMP - hose

2шт.

19

P51958

CLAMP

- hose, at frame

1шт.

20

P133884

SCREW

BOLT - clamp

1шт.

21

P3528794

WASHER

SPACER - clamp bolt

2шт.

22

P134596

SAFETY NUT

NUT - hex, clamp bolt

1шт.

23

P5847187

PIPE

TUBE -, Serial Range: hose-manifold

1шт.

24

P2337592

UNION

ADAPTER - straight

1шт.

25

P1230443

O-RING

- adapter

1шт.

26

REF

INSTRUCTION

MANIFOLD - pilot hose, see Figure 8-122 for connecting parts to hand and foot control valves

1шт.

27

P37550

UNION

ADAPTER - hose to manifold tube

1шт.

28

P3731901

HOSE

- 24-13/16" (630 mm) long, solenoid control valves to manifold tube

2шт.

29

P2337592

UNION

ADAPTER - straight

1шт.

30

P1237593

FITTING

ADAPTER - tube

1шт.

31

P1230443

O-RING

- adapter

2шт.

32

P37230

TEE

- hose to solenoid valve

1шт.

33

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, parts list Figure 8-242

2шт.
