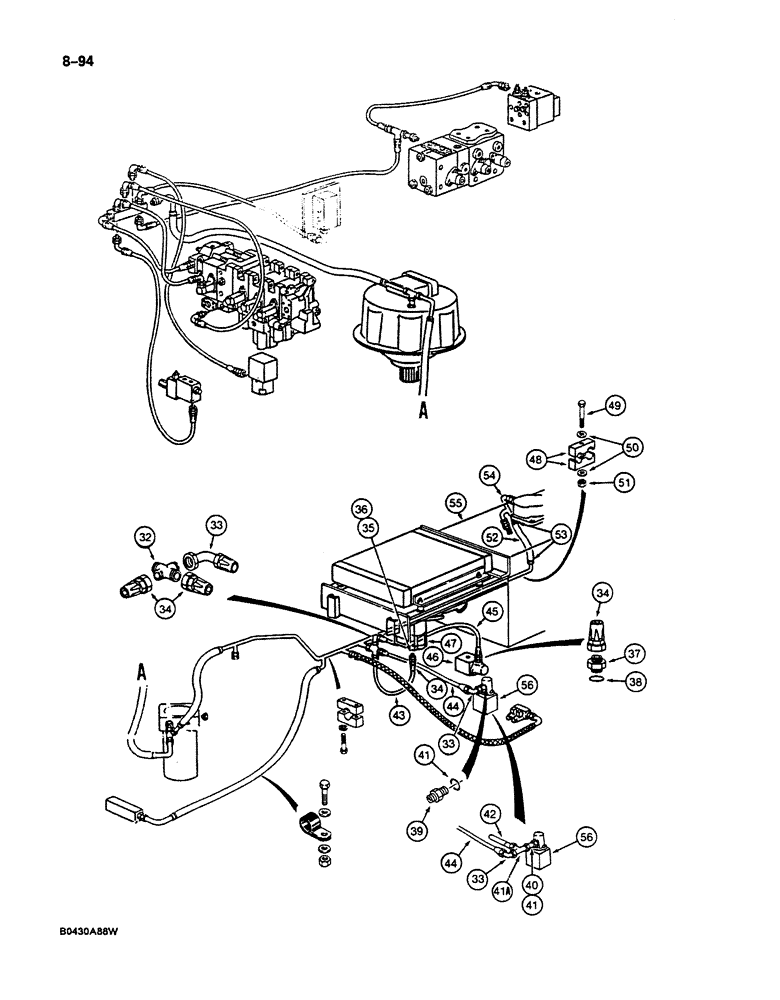

Запчасти Case 125B (8-094) - HYDRAULIC COMPONENTS LEAK RETURN CIRCUIT, LINES TO RESERVOIR, P.I.N. 74251 THROUGH 74630 (08) - HYDRAULICS

32

P937219

CROSS

- hydraulic, leak return lines

1шт.

33

P4037537

END FITTING

ADAPTER - 90 degree, leak return lines

2шт.

34

P4037535

END FITTING

ADAPTER - straight, leak return lines

4шт.

35

P4037504

UNION

ADAPTER - straight, cooler fan motor

1шт.

36

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

1шт.

37

P3037546

UNION

ADAPTER - straight, pressure regulator valve

1шт.

38

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

39

P3037546

UNION

ADAPTER - straight, at pressure regulator valve, Serial Range: 74251-74300

1шт.

40

P3037561

FITTING

ADAPTER - tube, tee to valve, Serial Range: 74301-74630

1шт.

41

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

41a

P37236

TEE

- leak return, at regulator valve, Serial Range: 74301-74630

1шт.

42

REF

INSTRUCTION

HOSE - tee to relief valve, see Figure 8-68 for pilot control circuit

1шт.

43

REF

INSTRUCTION

HOSE - leak return, 2.3 ft (0.7 m) long, cut from P1103640

1шт.

44

REF

INSTRUCTION

HOSE - leak return, 2.3 ft (0.7 m) long, cut from P1103640

1шт.

45

REF

INSTRUCTION

HOSE - leak return, 1.7 ft (0.5 m) long, cut from P1103640

1шт.

46

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, parts list Figure 8-252

1шт.

47

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, oil cooler fan, see Figures 8-276 and 8-278 for correct assembly and components

1шт.

48

P3920314

SHIN

CLAMP - tube

2шт.

49

P33824

SCREW

BOLT - clamp

1шт.

50

P3528795

WASHER

SPACER - clamp bolt

2шт.

51

P34598

SAFETY NUT

NUT - hex, clamp bolt

1шт.

52

REF

INSTRUCTION

HOSE - return, at filter, 2.3 ft (0.7 m) long, cut from P1103609

1шт.

53

P36935

COLLAR CLAMP

CLAMP - hose

2шт.

54

P2750132

MANIFOLD

TUBE - manifold, at filter, see Figure 8-54 for additional hydraulic return lines

1шт.

55

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figures 8-2 and 8-4 for hydraulic reservoir parts

1шт.

56

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, parts list Figure 8-258

1шт.
