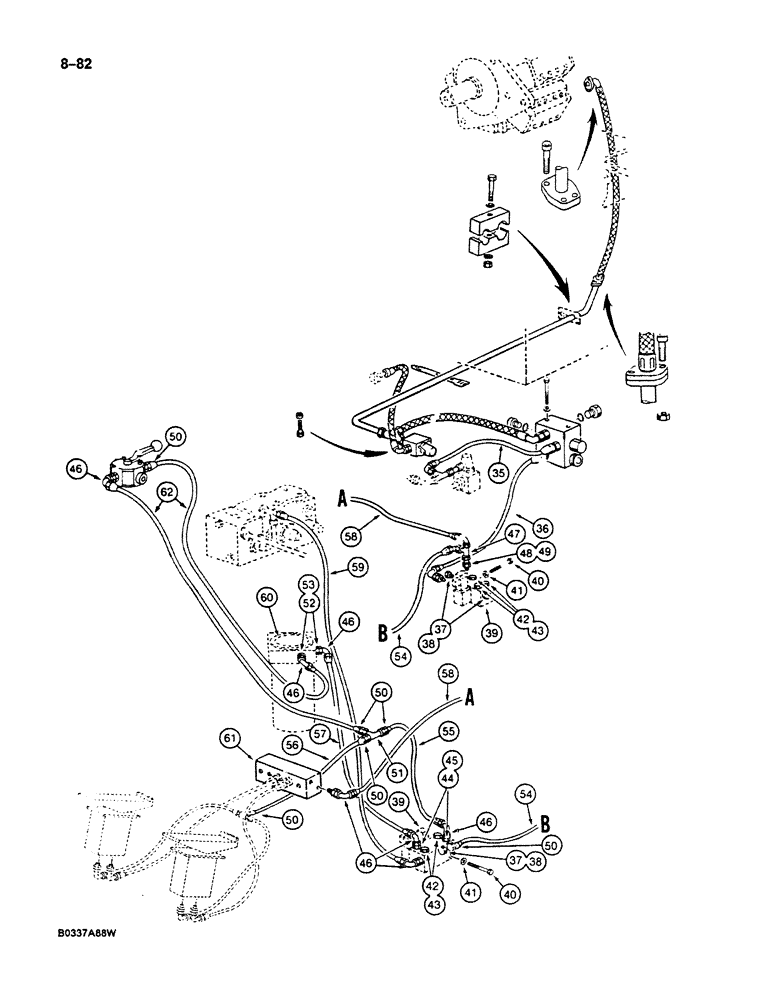

Запчасти Case 125B (8-082) - HYDRAULIC CIRCUIT FOR PILOT CONTROLS, P.I.N. 74845 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

35

REF

INSTRUCTION

HOSE - control circuit, tee to relief valve, 15-3/4" (400 mm) long, cut from P1103640

1шт.

36

REF

INSTRUCTION

HOSE - control circuit, relief valve to solenoid valve, 27-1/2" (700 mm) long, cut from P1103640

1шт.

P1337445

PLUG

ASSEMBLY - solenoid valve, Includes: Ref. 37 and 38

3шт.

37

NSS

NOT SOLD SEPARAT

PLUG - solenoid valve

1шт.

38

P945295

SEAL

- plug

1шт.

39

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, parts list Figure 8-242

2шт.

40

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Valve mounting

8шт.

41

P3528794

WASHER

SPACER - mounting bolt

8шт.

P1437456

PLUG

ASSEMBLY - solenoid valve, Includes: Ref. 42 and 43

5шт.

42

NSS

NOT SOLD SEPARAT

PLUG - solenoid valve

1шт.

43

P945295

SEAL

- plug

1шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 44 and 45

2шт.

44

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

45

P945295

SEAL

- adapter

1шт.

46

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

7шт.

47

P937275

TEE

- control circuit, at solenoid valve

1шт.

P4037577

FITTING

TUBE ASSEMBLY - adapter, straight, Includes: Ref. 48 and 49

1шт.

48

NSS

NOT SOLD SEPARAT

TUBE - adapter, straight

1шт.

49

P945295

SEAL

- adapter

1шт.

50

P4037588

END FITTING

ADAPTER - straight, control circuit hose

6шт.

51

P937275

TEE

- control circuit hose

1шт.

P4037575

UNION

ADAPTER ASSEMBLY - straight, at hydraulic swivel, Includes: Ref. 52 and 53

2шт.

52

NSS

NOT SOLD SEPARAT

ADAPTER - straight, at hydraulic swivel

1шт.

53

P5746063

SEAL

O-RING - adapter

1шт.

54

REF

INSTRUCTION

HOSE - pilot circuit, 15-3/4" (400 mm) long, cut from P1103640

1шт.

55

REF

INSTRUCTION

HOSE - pilot circuit, 31-1/2" (800 mm) long, cut from P1103640

1шт.

56

REF

INSTRUCTION

HOSE - pilot circuit, 51-3/16" (1300 mm) long, cut from P1103640

1шт.

57

REF

INSTRUCTION

HOSE - pilot circuit, 63" (1600 mm) long, cut from P1103640

1шт.

58

REF

INSTRUCTION

HOSE - pilot circuit, 78-3/4" (2000 mm) long, cut from P1103640

1шт.

59

REF

INSTRUCTION

HOSE - pilot circuit, 98-7/16" (2500 mm) long, cut from P1103640

1шт.

60

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

61

REF

INSTRUCTION

MANIFOLD - control circuits, see Figure 8-124 for connecting parts at foot control valves

1шт.

62

REF

INSTRUCTION

HOSE - pilot circuit, 98-7/16" (2500 mm) long, cut from P1103640, Serial Range: 74880-74963

2шт.

62

REF

INSTRUCTION

HOSE - pilot circuit, 98-7/16" (2500 mm) long, cut from P1103640, Serial Range: 21801-21868

2шт.

62

REF

INSTRUCTION

HOSE - pilot circuit, 98 7/16" (2500 mm) long, cut from P1103640, Start Serial: 26801

2шт.
