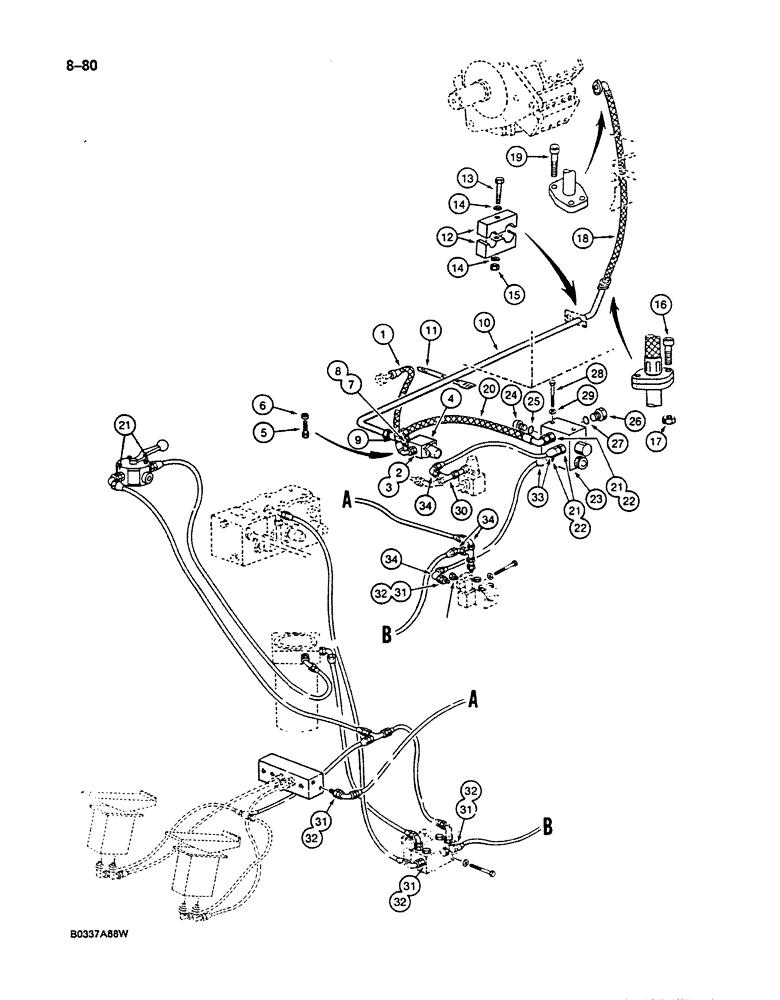

Запчасти Case 125B (8-080) - HYDRAULIC CIRCUIT FOR PILOT CONTROLS, P.I.N. 74845 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

1

P3231999

HOSE

- regulator valve to cooler motor, 31-1/2" (800 mm) long

1шт.

P3037521

UNION

ADAPTER ASSEMBLY - straight, at hose to cooler motor, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

3

P2230429

SEAL

O-RING - adapter

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, for correct assembly and components see Figures 8-252 and 8-254

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Valve mounting Hex, M10 x 30, 8.8

2шт.

6

P3528795

WASHER

SPACER - mounting bolt

2шт.

P3037507

FITTING

ADAPTER ASSEMBLY - straight, at tee, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

8

P2230429

SEAL

O-RING - adapter

1шт.

9

P1237222

TEE

- at regulator valve

1шт.

10

P5249062

PIPE

TUBE, Serial Range: --pump

1шт.

11

P136922

CLAMP

STRAP - tie, Serial Range: hose-tube

2шт.

12

P3920314

SHIN

CLAMP - tube

2шт.

13

P33824

SCREW

BOLT - clamp

1шт.

14

P3528795

WASHER

SPACER - clamp bolt

2шт.

15

P34598

SAFETY NUT

NUT - hex, clamp bolt

1шт.

16

P1232958

SCREW

- tube flange

2шт.

17

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Tube flange

2шт.

18

P4931958

HOSE

- at pump, 39-3/8" (1000 mm) long

1шт.

19

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

Hose flange Hex Soc Hd, M8 x 30, 10.9

2шт.

20

P6631918

HOSE

- tee to relief valve, 19-3/4" (500 mm) long

1шт.

P4037571

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 21 and 22

5шт.

21

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

22

P7046042

SEAL

- adapter

1шт.

P1843398

BLOCK ASSY.

VALVE ASSEMBLY - relief, pilot circuit, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

P2537448

PLUG

ASSEMBLY - valve, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

25

P2230441

SEAL

O-RING - plug

1шт.

P1437455

PLUG

ASSEMBLY - relief valve, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

27

P7046042

SEAL

- plug

1шт.

28

P233830

SCREW

BOLT - relief valve mounting

2шт.

29

P4328729

WASHER

SPACER - mounting bolt

2шт.

30

P937275

TEE

- hose to pressure regulator, see Figure 8-102 for leak return parts

1шт.

P4037574

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 31 and 32

4шт.

31

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

32

P945293

WASHER, SEALING

SEAL - adapter

1шт.

33

P4037588

END FITTING

ADAPTER - straight, control circuit hose

2шт.

34

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.
