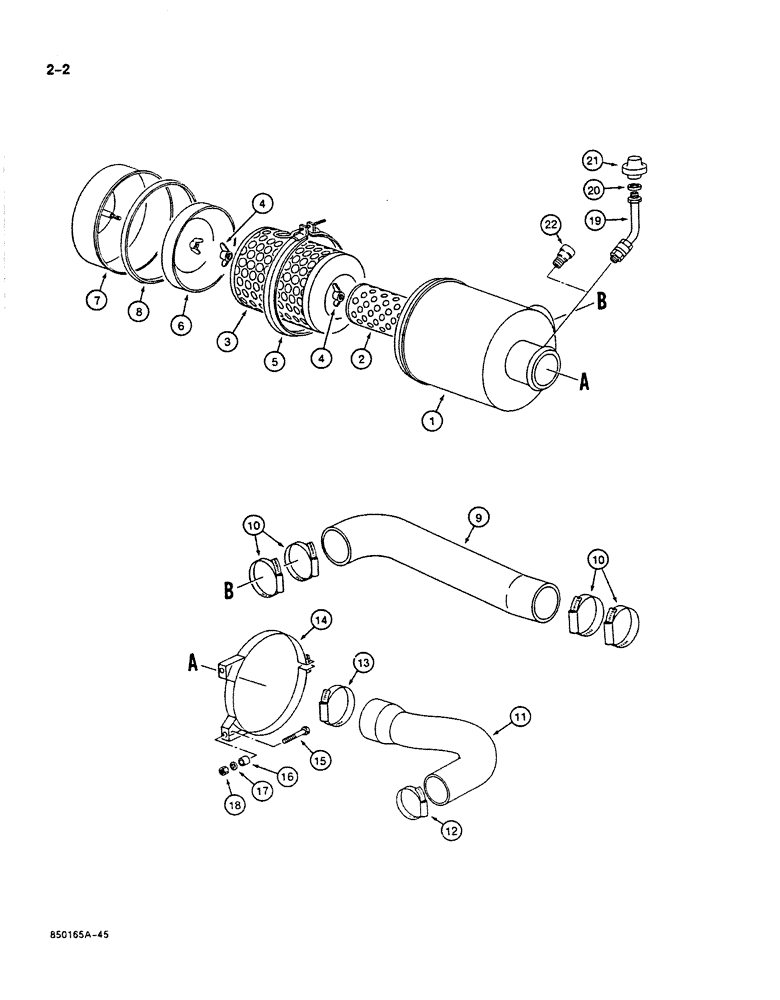

Запчасти Case 125B (2-02) - STANDARD AIR CLEANER AND AIR INTAKE PARTS, P.I.N. 74251-74963, 21801-21868, 26801 AND AFTER (02) - ENGINE

P850543

AIR CLEANER

ASSEMBLY - complete, Include: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

P850561

ELEMENT

- secondary, inner

1шт.

3

P850562

ELEMENT

- primary, outer

1шт.

4

P34406

THUMB SCREW

WING NUT -, Serial Range: element-body

2шт.

5

P1036959

CLAMP

- body to dust cup

1шт.

6

P850564

BAFFLE

- dust cup

1шт.

7

P850563

COVER

CUP - dust

1шт.

8

P1246085

SEAL

- dust, Serial Range: cup-body

1шт.

9

P3231973

INTAKE AIR HOSE,127.00 mm ID x 606.00 mm

- Air intake to air cleaner 127.00 mm ID x 606.00 mm

1шт.

10

P2036959

COLLAR CLAMP

CLAMP - air intake hose

4шт.

11

P6731913

LARGE HOSE

HOSE - air, Serial Range: cleaner-engine

1шт.

12

P36946

COLLAR CLAMP

CLAMP -, Serial Range: hose-engine

1шт.

13

P2036959

COLLAR CLAMP

CLAMP - hose to air cleaner

1шт.

14

P136947

COLLAR CLAMP

CLAMP - mounting, air cleaner, includes bolt and nut

2шт.

15

P133813

SCREW

BOLT - air cleaner clamp

4шт.

16

P228729

BUSHING

SPACER - air cleaner clamp

4шт.

17

P3528795

WASHER

- flat

4шт.

18

P34598

SAFETY NUT

NUT - hex

4шт.

19

P2949250

PIPE

TUBE ASSEMBLY - air restriction, used with sender, reference number 21

1шт.

20

P28424

COMPOSITE SEAL

GASKET - indicator to tube, used with sender, reference number 21

1шт.

21

P641617

INDICATOR

SENDER - air restriction indicator, if used

1шт.

22

P2141684

INDICATOR

SENDER - air restriction indicator, if used

1шт.
