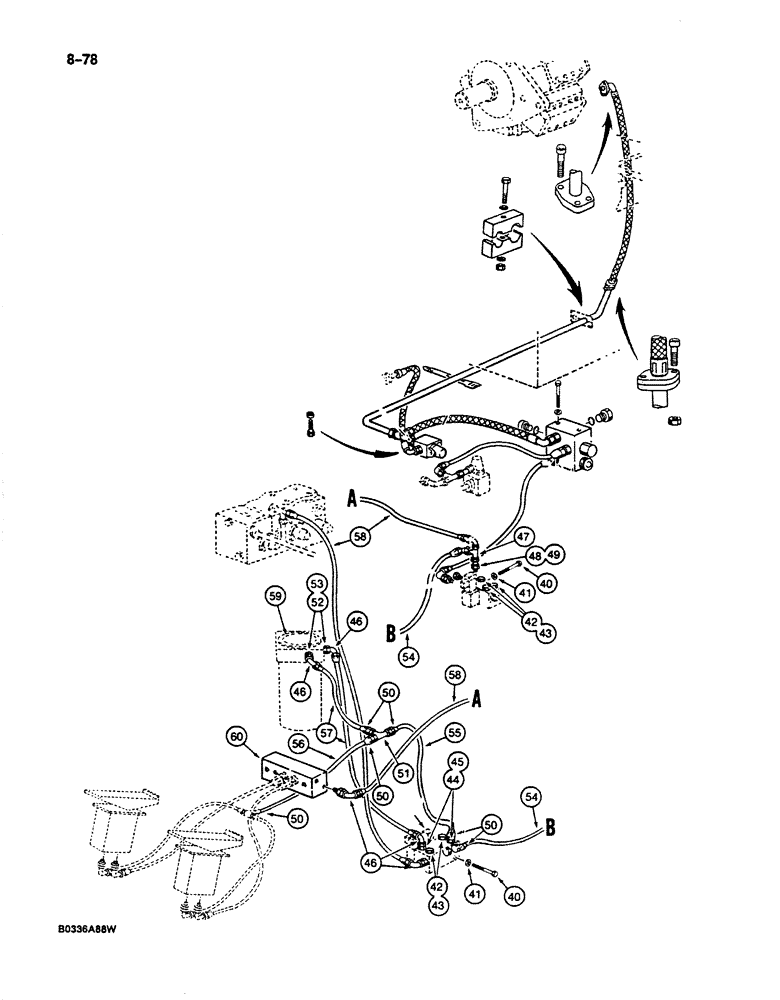

Запчасти Case 125B (8-078) - HYDRAULIC CIRCUIT FOR PILOT CONTROLS, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

40

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Valve mounting

8шт.

41

P3528794

WASHER

SPACER - valve mounting bolt

8шт.

42

P1737451

PLUG

- solenoid valve

5шт.

43

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

5шт.

44

P3037546

UNION

ADAPTER - straight

2шт.

45

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

2шт.

46

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

5шт.

47

P37236

TEE

- control circuit, at solenoid valve

1шт.

48

P3037561

FITTING

TUBE - adapter, straight

1шт.

49

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

50

P4037535

END FITTING

ADAPTER - straight, control circuit hose

6шт.

51

P37236

TEE

- control circuit hose

1шт.

52

P2337589

UNION

ADAPTER - straight, at hydraulic swivel

2шт.

53

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

2шт.

54

REF

INSTRUCTION

HOSE - pilot circuit, 15-3/4" (400 mm) long, cut from P1103640

1шт.

55

REF

INSTRUCTION

HOSE - pilot circuit, 31-1/2" (800 mm) long, cut from P1103640

1шт.

56

REF

INSTRUCTION

HOSE - pilot circuit, 51-3/16" (1300 mm) long, cut from P1103640

1шт.

57

REF

INSTRUCTION

HOSE - pilot circuit, 63" (1600 mm) long, cut from P1103640

2шт.

58

REF

INSTRUCTION

HOSE - pilot circuit, 78-3/4" (2000 mm) long, cut from P1103640

2шт.

59

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

60

REF

INSTRUCTION

MANIFOLD - control circuits, see Figure 8-122 for connecting parts at foot control valves

1шт.
