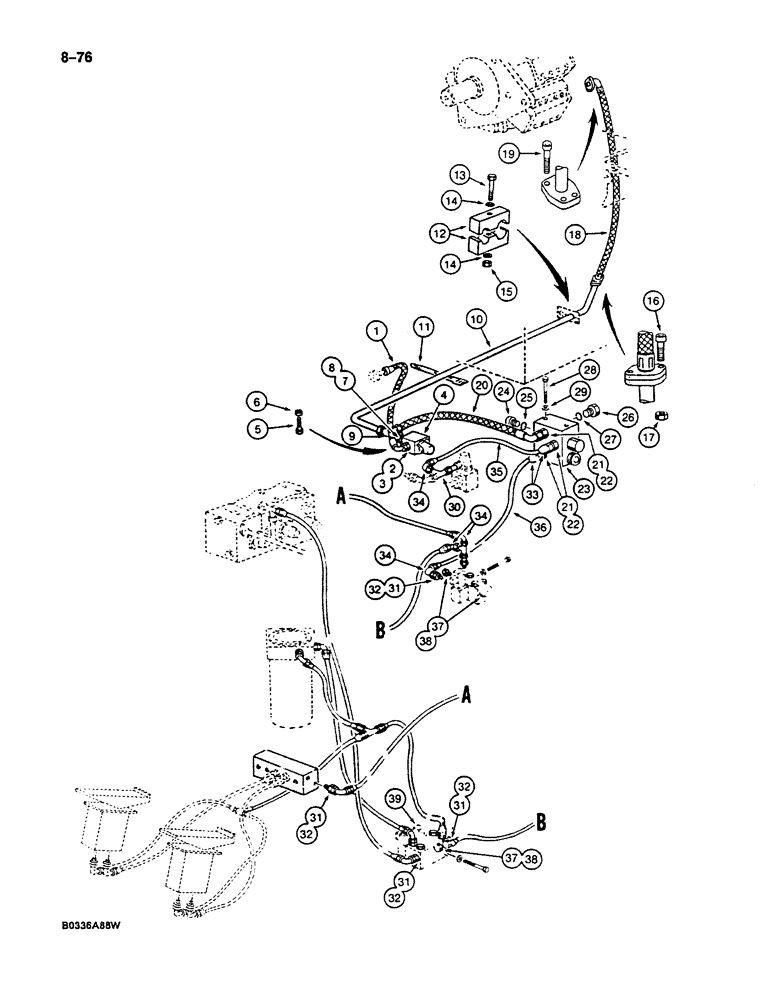

Запчасти Case 125B (8-076) - HYDRAULIC CIRCUIT FOR PILOT CONTROLS, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

1

P3231999

HOSE

- regulator valve to cooler motor, 31-1/2" (800 mm) long

1шт.

2

P3037521

UNION

ADAPTER - straight, at hose to cooler motor

1шт.

3

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, for correct assembly and components see Figures 8-252 and 8-254

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Valve mounting Hex, M10 x 30, 8.8

2шт.

6

P3528795

WASHER

SPACER - mounting bolt

2шт.

7

P3037507

FITTING

ADAPTER - straight

1шт.

8

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

9

P537222

TEE

- at regulator valve

1шт.

10

P5249062

PIPE

TUBE, Serial Range: --pump

1шт.

11

P136922

CLAMP

STRAP - tie, Serial Range: hose-tube

2шт.

12

P3920314

SHIN

CLAMP - tube

2шт.

13

P33824

SCREW

BOLT - clamp

1шт.

14

P3528795

WASHER

SPACER - clamp bolt

2шт.

15

P34598

SAFETY NUT

NUT - hex, clamp bolt

1шт.

16

P1232958

SCREW

- tube flange

2шт.

17

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Tube flange

2шт.

18

P4931958

HOSE

- at pump 39-3/8" (1000 mm) long

1шт.

19

P0732978Q

SCREW

Hose flange Hex Soc Hd, M8 x 30, 10.9

2шт.

20

P4431999

HOSE

- tee to relief valve, 19-3/4" (500 mm) long

1шт.

P4037504

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 21 and 22

3шт.

21

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

22

P7046042

SEAL

- adapter

1шт.

P1843398

BLOCK ASSY.

VALVE ASSEMBLY - relief, pilot circuit, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

P2537448

PLUG

ASSEMBLY - valve, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

25

P2230441

SEAL

O-RING - plug

1шт.

26

P1737452

PLUG

- relief valve

1шт.

27

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

28

P233830

SCREW

BOLT - relief valve mounting

2шт.

29

P4328729

WASHER

SPACER - mounting bolt

2шт.

30

P37236

TEE

- hose to pressure regulator, see Figure 8-98 for leak return parts

1шт.

31

P2337591

UNION

ADAPTER - straight

4шт.

32

P1230443

O-RING

- adapter

4шт.

33

P4037535

END FITTING

ADAPTER - straight, control circuit hose

2шт.

34

P4037537

END FITTING

ADATPER - 90 degree, control circuit hose

4шт.

36

REF

INSTRUCTION

HOSE - control circuit, relief valve to solenoid valve, 27-1/2" (700 mm) long, cut from P1103640

1шт.

37

P1737443

PLUG

- solenoid valve

3шт.

38

P1230443

O-RING

- plug

3шт.

39

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, parts list page 8-243

2шт.
