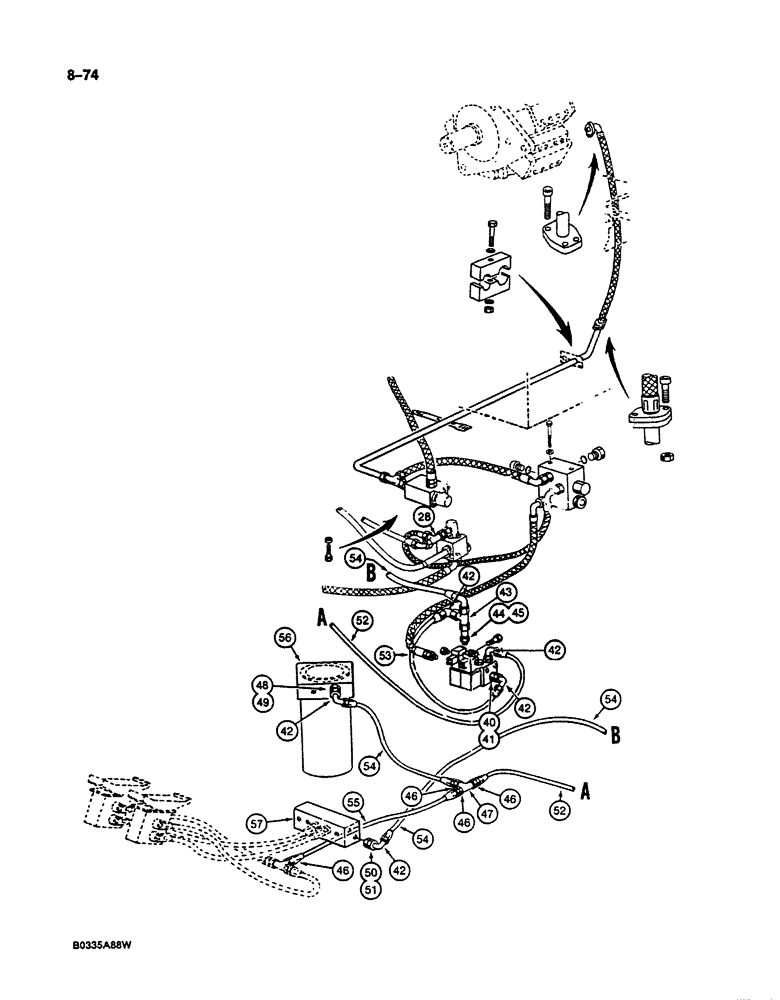

Запчасти Case 125B (8-074) - HYDRAULIC CIRCUIT FOR PILOT CONTROLS, P.I.N. 74301 THROUGH 74630 (08) - HYDRAULICS

40

P3037504

UNION

ADAPTER - straight

1шт.

41

P1230443

O-RING

- adapter

1шт.

42

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

43

P37236

TEE

- pilot circuit, at solenoid valve

1шт.

44

P3037561

FITTING

ADAPTER - straight

1шт.

45

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

46

P4037535

END FITTING

ADAPTER - straight, control circuit hose

4шт.

47

P37236

TEE

- control circuit hose

1шт.

48

P2337589

UNION

ADAPTER - straight, at hydraulic swivel

1шт.

49

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

50

P2337591

UNION

ADAPTER - straight, at manifold block

1шт.

51

P1230443

O-RING

- adapter

1шт.

52

REF

INSTRUCTION

HOSE - pilot circuit, 3.3 ft (1.0 m) long, cut from P1103640

1шт.

53

REF

INSTRUCTION

HOSE - pilot circuit, crossover, at solenoid valve, 2.3 ft (0.7m) long, cut from P1103640

1шт.

54

REF

INSTRUCTION

HOSE - pilot circuit, solenoid valve to manifold and hydraulic swivel, 6.6 ft (2.0 m) long, cut from P1103640

2шт.

55

REF

INSTRUCTION

HOSE - pilot circuit, 4.3 ft (1.3 m) long, cut from P1103640

1шт.

56

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

57

REF

INSTRUCTION

MANIFOLD - control circuits, see Figure 8-120 for connecting parts at foot control valves

1шт.
