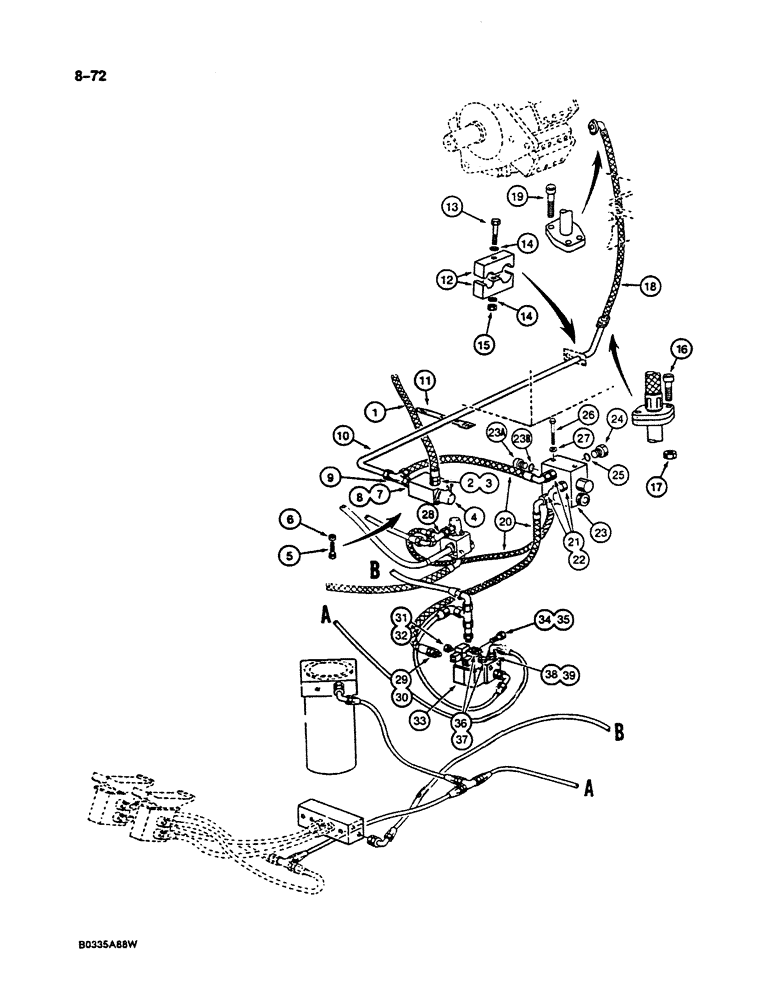

Запчасти Case 125B (8-072) - HYDRAULIC CIRCUIT FOR PILOT CONTROLS, P.I.N. 74301 THROUGH 74630 (08) - HYDRAULICS

1

P3231999

HOSE

- regulator valve to cooler motor, 31-1/2" (800 mm) long

1шт.

2

P3037521

UNION

ADAPTER - straight

1шт.

3

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, for correct assembly and components see Figures 8-252 and 8-254

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Valve mounting Hex, M10 x 30, 8.8

2шт.

6

P3528795

WASHER

SPACER - mounting bolt

2шт.

7

P3037507

FITTING

ADAPTER - straight

1шт.

8

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- adapter

1шт.

9

P537222

TEE

- at regulator valve

1шт.

10

P5249062

PIPE

TUBE, Serial Range: --pump

1шт.

11

P136922

CLAMP

STRAP - tie, Serial Range: hose-tube

2шт.

12

P3920314

SHIN

CLAMP - tube

2шт.

13

P33824

SCREW

BOLT - clamp

1шт.

14

P3528795

WASHER

SPACER - clamp bolt

2шт.

15

P34598

SAFETY NUT

NUT - hex, clamp bolt

1шт.

16

P1232958

SCREW

- tube flange

2шт.

17

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Tube flange

2шт.

18

P4931958

HOSE

- at pump, 39-3/8" (1000 mm) long

1шт.

19

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

Hose flange Hex Soc Hd, M8 x 30, 10.9

2шт.

20

P4431999

HOSE

- tee to relief valve, 19-3/4" (500 mm) long

3шт.

21

P4037504

UNION

ADAPTER - straight

3шт.

22

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

3шт.

P1843398

BLOCK ASSY.

VALVE ASSEMBLY - relief, pilot circuit, Includes: Ref. 23 - 23B

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

P2537448

PLUG

ASSEMBLY - valve, Includes: Ref. 23A and 23B

1шт.

23a

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

23b

P2230441

SEAL

O-RING - plug

1шт.

24

P1737452

PLUG

- relief valve

1шт.

25

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

26

P233830

SCREW

BOLT - relief valve mounting

2шт.

27

P4328729

WASHER

SPACER - mounting bolt

2шт.

28

P37236

TEE

- hose to pressure regulator, see Figure 8-94 for leak return parts

1шт.

29

P3037504

UNION

ADAPTER - straight

1шт.

30

P1230443

O-RING

- adapter

1шт.

31

P1737443

PLUG

- solenoid valve

1шт.

32

P1230443

O-RING

- plug

1шт.

33

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, parts list Figure 8-242

1шт.

34

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Valve mounting

4шт.

35

P3528794

WASHER

SPACER - mounting bolt

4шт.

36

P1737451

PLUG

- solenoid valve

2шт.

37

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- plug

2шт.

38

P3037546

UNION

ADAPTER - straight

1шт.

39

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.
