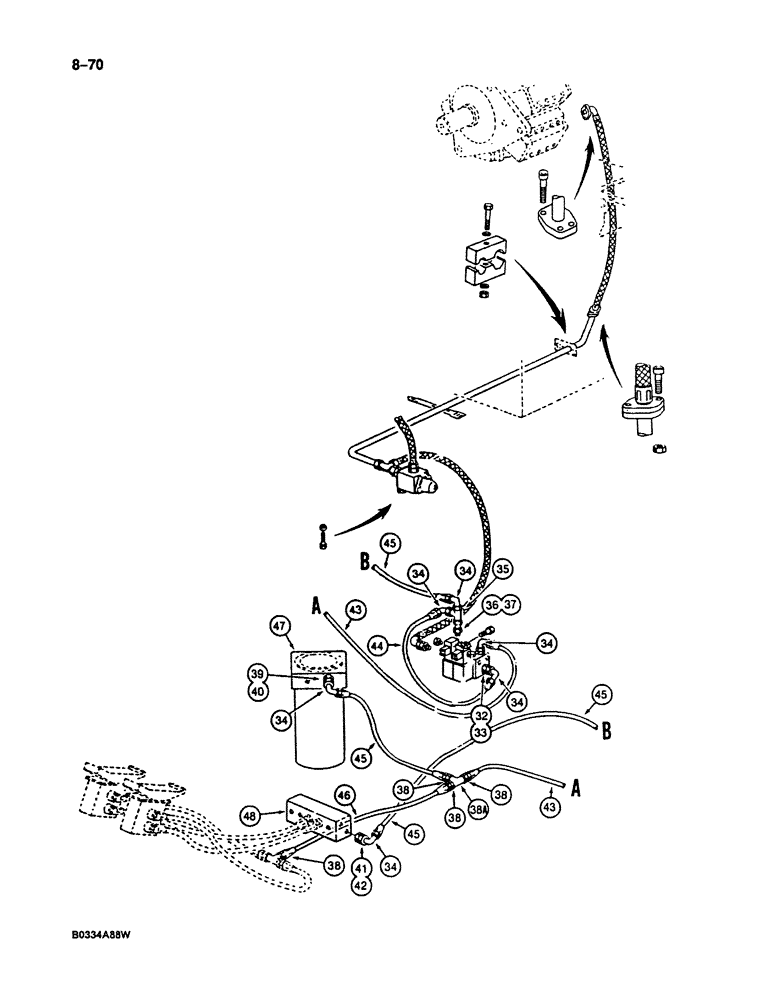

Запчасти Case 125B (8-070) - HYDRAULIC CIRCUIT FOR PILOT CONTROLS, P.I.N. 74251 THROUGH 74300 (08) - HYDRAULICS

32

P3037504

UNION

ADAPTER - straight

1шт.

33

P1230443

O-RING

- adapter

1шт.

34

P4037537

END FITTING

ADAPTER - 90 degree, control circuit pressure hose

6шт.

35

P37236

TEE

- pilot circuit, at solenoid valve

1шт.

36

P3037561

FITTING

ADAPTER - straight

1шт.

37

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- adapter

1шт.

38

P4037535

END FITTING

ADAPTER - straight, control circuit hose

4шт.

38a

P37236

TEE

- control circuit hose

1шт.

39

P2337589

UNION

ADAPTER - straight, at hydraulic swivel

1шт.

40

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

41

P2337591

UNION

ADAPTER - straight, at manifold block

1шт.

42

P1230443

O-RING

- adapter

1шт.

43

REF

INSTRUCTION

HOSE - pilot circuit, 3.3 ft (1.0 m) long, cut from P1103640

1шт.

44

REF

INSTRUCTION

HOSE - pilot circuit, crossover, at solenoid valve, 2.3 ft (0.7M) long, cut from P1103640

1шт.

45

REF

INSTRUCTION

HOSE - pilot circuit, solenoid valve to manifold and hydraulic swivel, 6.6 ft (2.0 m) long, cut from P1103640

2шт.

46

REF

INSTRUCTION

HOSE - pilot circuit, 4.3 ft (1.3 m) long, cut from P1103640

1шт.

47

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-280

1шт.

48

REF

INSTRUCTION

MANIFOLD - control circuits, see Figure 8-120 for connecting lines at foot control valves

1шт.
