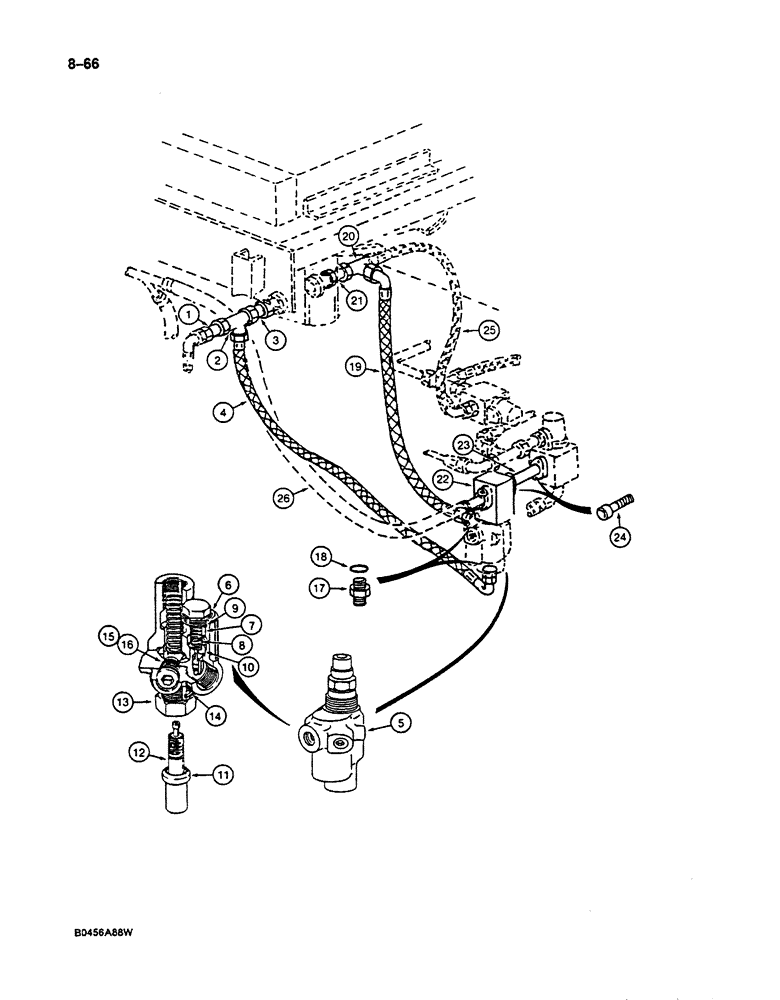

Запчасти Case 125B (8-066) - HYD. CIRCUIT RETURN LINES, OIL TEMP. REGULATING VALVE PARTS, PIN 21807 THRU 21868, 26801 AND AFTER (08) - HYDRAULICS

1

P137532

FITTING

TUBE - adapter, Serial Range: hose-tee

1шт.

2

P37233

TEE

- hose to cooler fan motor tube

1шт.

3

P2337687

PIPE

TUBE - adapter, fan motor

1шт.

4

P3231999

HOSE

- 31-1/2" (800 mm) long, temperature regulating, Serial Range: valve-tee

1шт.

5

P5137748

SHIN

VALVE ASSEMBLY - oil temperature regulating, Includes: Ref. 6 - 16

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

7

P1943314

VALVE

- relief

1шт.

8

P1038254

SPRING

- relief valve

1шт.

9

P8846093

SEAL

- valve, upper

1шт.

10

P8846094

SEAL

- valve, lower

1шт.

P5549680

KIT - repair, valve, Includes: Ref. 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - regulator

1шт.

12

NSS

NOT SOLD SEPARAT

SEALK - regulator valve

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - adapter

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - valve body

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, plug O-ring

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

17

P237586

UNION

ADAPTER - straight, hose to temperaturn regulating valve

2шт.

18

P245217

WASHER, SEALING

SEAL - adapter

2шт.

19

P4931961

HOSE

- 31-1/2" (800 mm) long, Serial Range: valve-tee

1шт.

20

P37230

TEE

- hose to cooler motor

1шт.

21

P1137673

TUBE,16.75 mm OD x 45 mm L

- adapter, at cooler fan motor

1шт.

22

P5137759

BODY

BLOCK - manifold, cooler and pump tubes to temperature regulating valve

1шт.

23

P3437644

PIPE

TUBE - manifold block to pressure regulating valve

1шт.

24

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

4шт.

25

REF

INSTRUCTION

HOSE - to regulating valve, see Figures 8-68, 8-72, 8-76 and 8-80 for related cooler fan motor hydraulic parts

1шт.

26

REF

INSTRUCTION

HOSE - return, to cooler, see Figures 8-56, 8-60 and 8-64 for related cooler hydraulic parts

1шт.
