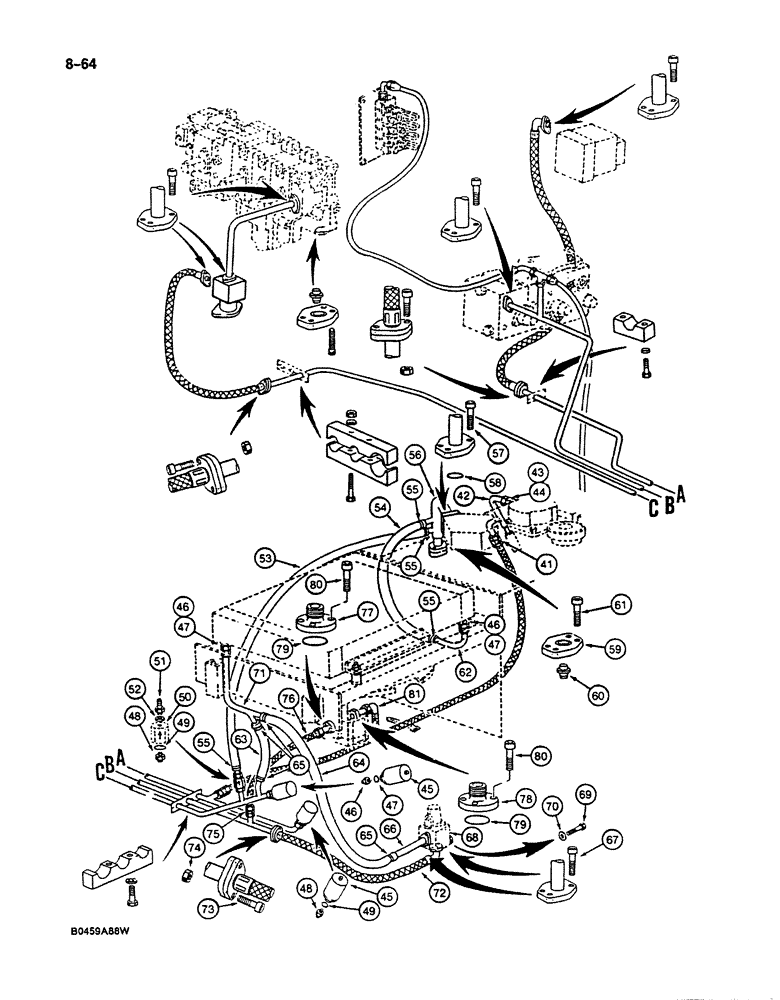

Запчасти Case 125B (8-064) - HYDRAULIC CIRCUIT RETURN LINES, P.I.N. 74845 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (08) - HYDRAULICS

41

P37551

UNION

ADAPTER - straight, return hose at filter

1шт.

42

P2750132

MANIFOLD

TUBE - manifold, at filter

1шт.

P3037558

UNION

ADAPTER ASSEMBLY - tube to filter, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

ADAPTER -, Serial Range: tube-filter

1шт.

44

P2230429

SEAL

O-RING - adapter

1шт.

45

P2137749

ACCUMULATOR

- hydraulic pressure

2шт.

P2337595

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 46 and 47

3шт.

46

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

47

P945294

SEAL

- adapter

1шт.

P3037514

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 48 and 49

2шт.

48

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

49

P945294

SEAL

- adapter

1шт.

50

REF

INSTRUCTION

CHECK VALVE ASSEMBLY - filter return, parts list Figure 8-270

1шт.

51

P2337599

FITTING

ADAPTER - hose end, barb type

1шт.

52

P1245217

WASHER, SEALING

WASHER - seal, adapter

1шт.

53

REF

INSTRUCTION

HOSE - check valve to filter, 3.3 ft (1.0 m) long, cut from P1103610

1шт.

54

REF

INSTRUCTION

HOSE - cooler to filter, 2.3 ft (0.7 m) long, cut from P1103610

1шт.

55

P36935

COLLAR CLAMP

CLAMP - hose

4шт.

56

P2750131

MANIFOLD

- return, Serial Range: hoses-filter

1шт.

57

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange Hex Skt Hd, M12 x 40, 10.9

2шт.

58

P1230493

O-RING

- tube flange

1шт.

59

P1337779

BLANK-OFF PLUG

PLATE - cover

1шт.

60

P1627866

BLANK-OFF PLUG

PLUG - cover plate

1шт.

61

P532924

SCREW

- cover plate

2шт.

62

P6047142

PIPE

TUBE - cooler return

1шт.

63

REF

INSTRUCTION

HOSE - return, to cooler, 2.3 ft (0.7 m) long, cut from P1103610

1шт.

64

REF

INSTRUCTION

HOSE - return, to cooler, 4.3 ft (1.3 m) long, cut from P1103610

1шт.

65

P36935

COLLAR CLAMP

CLAMP - hose

4шт.

66

P3837652

PIPE

TUBE - pressure regulator, Serial Range: valve-cooler

1шт.

67

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange Hex Skt Hd, M12 x 40, 10.9

4шт.

68

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, for correct assembly and components see Figures 8-260 and 8-262

1шт.

69

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- regulator valve Hex, M10 x 35, 8.8, Full Thd

2шт.

70

P3528795

WASHER

SPACER - bolt

2шт.

71

P2750133

MANIFOLD

TUBE - manifold, Serial Range: return-cooler

1шт.

72

P2231983

HOSE

- at pressure regulator valve, 31-1/2" (800 mm) long

1шт.

73

P632934

SCREW

- tube flange

2шт.

74

829-1412

NUT,M12, Cl 10.9

Tube flange M12, Cl 10

2шт.

75

P37554

UNION

ADAPTER - straight, return, Serial Range: line-filter

1шт.

76

P3231996

HOSE

- return line to cooler motor, 31-1/2" (800 mm) long

1шт.

77

P3837760

SHIN

ADAPTER - to cooler motor

1шт.

78

P3837759

SHIN

ADAPTER - to cooler motor

1шт.

79

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- adapter

2шт.

80

P732958

SCREW

- adapter

8шт.

81

P3231999

HOSE

- regulator valve to cooler motor, 31-1/2" (800 mm) long, see Figure 8-80 for additional parts of return circuit

1шт.

The adapter and seals used on accumulator p2137749 is different depending on where it is used.

1шт.
