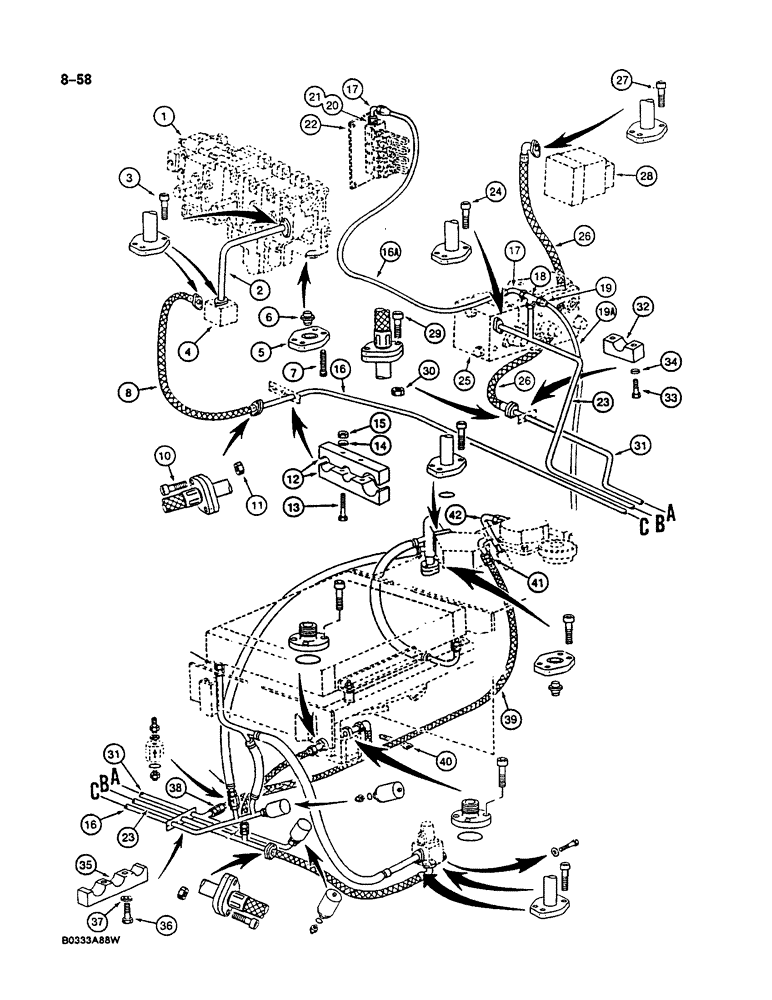

Запчасти Case 125B (8-058) - HYDRAULIC CIRCUIT RETURN LINES, P.I.N. 74631 THROUGH 74844 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

2

P2550179

PIPE

TUBE - control valve to pressure regulator valve

1шт.

3

P532924

SCREW

- tube flange

6шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, parts list Figure 8-262

1шт.

5

P724186

SHIN

PLATE - cover

1шт.

6

P1627866

BLANK-OFF PLUG

PLUG - cover plate

1шт.

7

P532924

SCREW

- cover plate

2шт.

8

P1031945

HOSE

- return, at regulator valve, 31-1/2" (800 mm) long

1шт.

10

P1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

- tube flange

2шт.

11

P134107

NUT

- flange screw

2шт.

12

P4020334

SHIN

CLAMP - tube

2шт.

13

P33824

SCREW

BOLT - clamp

2шт.

14

P3528795

WASHER

SPACER - bolt

2шт.

15

P34598

SAFETY NUT

NUT - hex, clamp bolt

2шт.

16

P2750149

MANIFOLD

TUBE -, Serial Range: return,-cooler

1шт.

16a

REF

INSTRUCTION

HOSE - to solenoid control valve, 4.3 ft (1.3 m) long, cut from P1103640

1шт.

17

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

18

P37248

TEE

- pilot line, control valve to solenoid valve

1шт.

19

P4037535

END FITTING

ADAPTER - straight, pilot circuit hose

1шт.

19a

REF

INSTRUCTION

HOSE - tee to solenoid, see page 8-79 for continuation of pilot control circuit

1шт.

P4037504

UNION

ADAPTER ASSEMBLY - hose to solenoid valve, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

ADAPTER - hose to solenoid valve

1шт.

21

P7046042

SEAL

- adapter

1шт.

22

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, parts list Figure 8-246

1шт.

23

P5249098

PIPE

TUBE - manifold, to cooler motor

1шт.

24

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange Hex Skt Hd, M12 x 40, 10.9

2шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive, parts list Figures 8-216 through 8-222

1шт.

26

P1031967

HOSE

- return, at power sensing valve, 25-5/8" (650 mm) long

1шт.

27

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose flange Hex Soc Hd, M10 x 35, 10.9

2шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - power sensing, parts list Figure 8-250

1шт.

29

L632924

SCREW

- hose and tube flange

2шт.

30

825-1408

NUT,M8, Cl 8

Flange screw M8, Cl 8

2шт.

31

P2750174

PIPE

TUBE - return, to hydraulic filter

1шт.

32

P120361

SHIN

CLAMP - tube

1шт.

33

P433814

SCREW

BOLT - clamp

2шт.

34

P3528795

WASHER

SPACER - clamp bolt

2шт.

35

P4020335

SHIN

CLAMP - tube

1шт.

36

P833802

SCREW

BOLT - clamp

2шт.

37

P3528795

WASHER

SPACER - clamp bolt

2шт.

38

P37551

UNION

ADAPTER - straight, return to filter line

1шт.

39

P3231982

HOSE

- return, to filter, 49-1/4" (1250 mm) long

1шт.

40

P136922

CLAMP

TIE STRAP - hose

2шт.

41

P37551

UNION

ADAPTER - straight, return hose at filter

1шт.

42

P2750132

MANIFOLD

TUBE - manifold, at filter

1шт.
