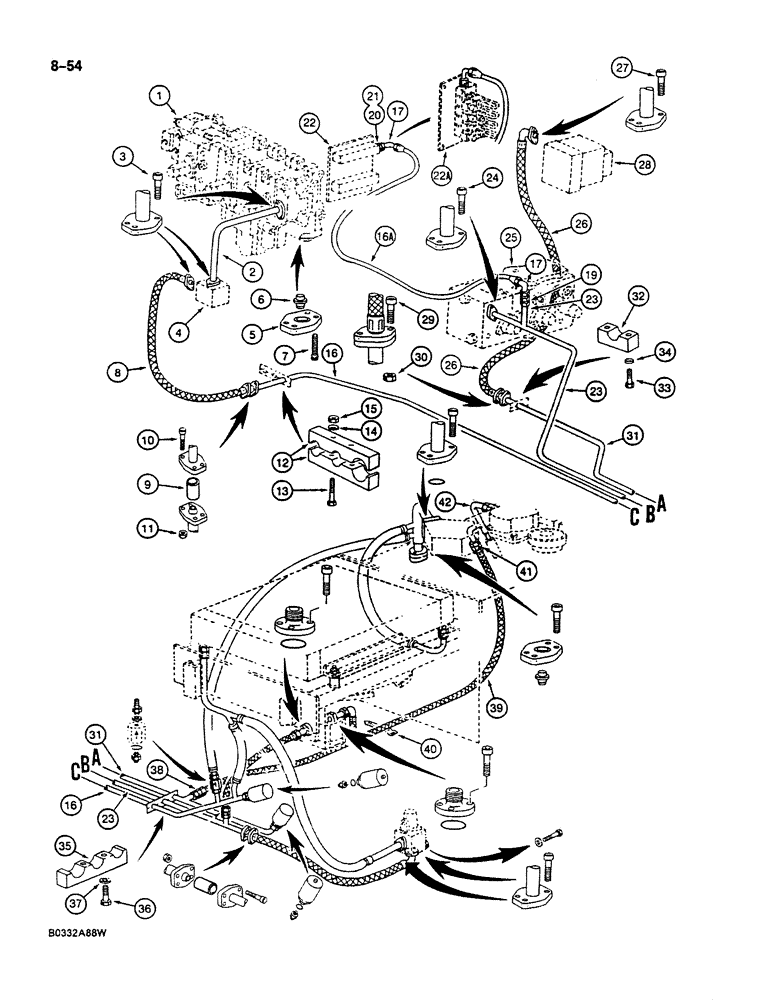

Запчасти Case 125B (8-054) - HYDRAULIC CIRCUIT RETURN LINES, P.I.N. 74251 THROUGH 74630 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

2

P2550179

PIPE

TUBE - control valve to pressure regulator valve

1шт.

3

P532924

SCREW

- tube flange

6шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, parts list Figure 8-256

1шт.

5

P724186

SHIN

PLATE - cover

1шт.

6

P1627866

BLANK-OFF PLUG

PLUG - cover plate

1шт.

7

P532924

SCREW

- cover plate

2шт.

8

P3231975

HOSE

- return, at regulator valve, 31-1/2" (800 mm) long

1шт.

9

P1737760

JUNCTION

ADAPTER - tube flange

1шт.

10

P532927

SCREW

- tube flange

2шт.

11

P134107

NUT

- flange screw

2шт.

12

P4020334

SHIN

CLAMP - tube

2шт.

13

P33824

SCREW

BOLT - clamp

2шт.

14

P3528795

WASHER

SPACER - bolt

2шт.

15

P34598

SAFETY NUT

NUT - hex, clamp bolt

2шт.

16

P2750149

MANIFOLD

TUBE -, Serial Range: return,-cooler

1шт.

16a

REF

INSTRUCTION

HOSE - to solenoid control valve, 4.3 ft (1300 mm) long, cut from P1103640

1шт.

17

P4037537

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

19

P37362

UNION

ADAPTER - hose to manifold tube (item 23)

1шт.

20

P4037504

UNION

ADAPTER - hose to solenoid valve

1шт.

21

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter

1шт.

22

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, parts list Figure 8-244, Serial Range: 74251-74281

1шт.

22a

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - solenoid, parts list Figure 8-246, Serial Range: 74282-74630

1шт.

23

P5249098

PIPE

TUBE - manifold, to cooler motor

1шт.

24

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Tube flange Hex Skt Hd, M12 x 40, 10.9

2шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive, parts list Figures 8-216 through 8-222

1шт.

26

P1031967

HOSE

- return, at power sensing valve, 25-5/8" (650 mm) long

1шт.

27

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose flange Hex Soc Hd, M10 x 35, 10.9

2шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - power sensing, parts list Figure 8-250

1шт.

29

L632924

SCREW

- hose and tube flange

2шт.

30

825-1408

NUT,M8, Cl 8

Flange screw M8, Cl 8

2шт.

31

P2750174

PIPE

TUBE - return, to hydraulic filter

1шт.

32

P120361

SHIN

CLAMP - tube

1шт.

33

P433814

SCREW

BOLT - clamp

2шт.

34

P3528795

WASHER

SPACER - clamp bolt

2шт.

35

P4020335

SHIN

CLAMP - tubes

1шт.

36

P833802

SCREW

BOLT - clamp

2шт.

37

P3528795

WASHER

SPACER - clamp bolt

2шт.

38

P37551

UNION

ADAPTER - straight, return, Serial Range: line-filter

1шт.

39

P3231982

HOSE

- return, to filter, 49-1/4" (1250 mm) long

1шт.

40

P136922

CLAMP

TIE STRAP - hose

2шт.

41

P37551

UNION

ADAPTER - straight, return, Serial Range: hose-filter

1шт.

42

P2750132

MANIFOLD

TUBE - manifold, at filter

1шт.
