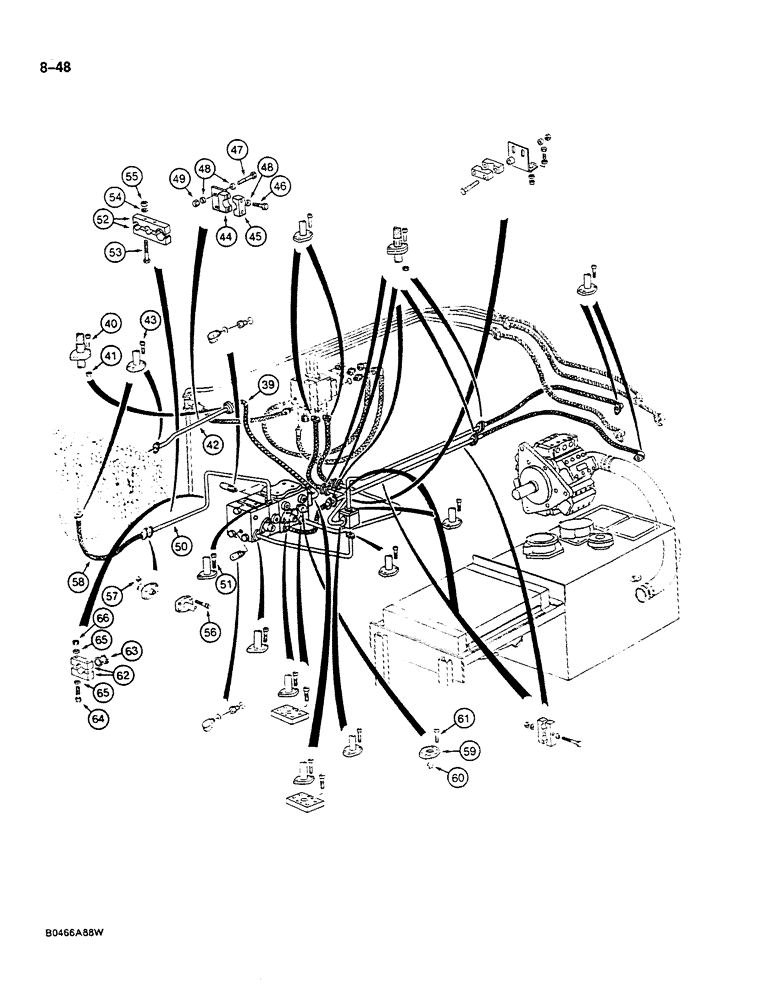

Запчасти Case 125B (8-048) - HYDRAULIC PUMP LINES, P.I.N. 74845 THROUGH 74963, 21801 THROUGH 21806 (08) - HYDRAULICS

39

P1031967

HOSE

- swing and drive control valve to attachment control valve, 25-5/8" (650 mm) long

1шт.

40

L632924

SCREW

- hose, Serial Range: flange-tube

2шт.

41

825-1408

NUT,M8, Cl 8

Flange screw M8, Cl 8

2шт.

42

P8147623

PIPE

TUBE - swing and drive control valve to attachment control valve

1шт.

43

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Hose and tube flange to attachment control valve Hex Soc Hd, M10 x 35, 10.9

4шт.

44

P4327102

SHIN

CLAMP AND BRACKET - tube

1шт.

45

P120361

SHIN

CLAMP - tube, attachment valve

1шт.

46

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

Full Thd, Clamp to bracket Hex, M10 x 55, 8.8

2шт.

47

P1133839

SCREW

BOLT - clamp, Serial Range: bracket-frame

2шт.

48

P4328796

WASHER

SPACER - clamp bolt

6шт.

49

P34598

SAFETY NUT

NUT - clamp bracket bolt

2шт.

50

P5249111

PIPE

TUBE - center block to attachment control valve

1шт.

51

P933895

SCREW

BOLT - tube flange to center block

2шт.

52

P4020334

SHIN

CLAMP - tube

2шт.

53

P33824

SCREW

BOLT - tube clamp

2шт.

54

P3528795

WASHER

SPACER - clamp bolt

2шт.

55

P34598

SAFETY NUT

NUT - hex, clamp bolt

2шт.

56

L632924

SCREW

- tube and hose flange

2шт.

57

825-1408

NUT,M8, Cl 8

Flange screw M8, Cl 8

2шт.

58

P731967

HOSE

- at attachment control valve

1шт.

59

P724185

SHIN

PLATE - plug retainer at drive control valve port

1шт.

60

P1627865

BLANK-OFF PLUG

PLUG - drive control valve port

1шт.

61

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Plate to valve Hex Soc Hd, M10 x 35, 10.9

2шт.

62

P820377

SHIN

CLAMP - tube

2шт.

63

P741440

BUSHING

INSULATOR - clamp

1шт.

64

P33824

SCREW

BOLT - tube clamp

2шт.

65

P3528795

WASHER

SPACER - clamp bolt

4шт.

66

P34598

SAFETY NUT

NUT - clamp bolt

2шт.
