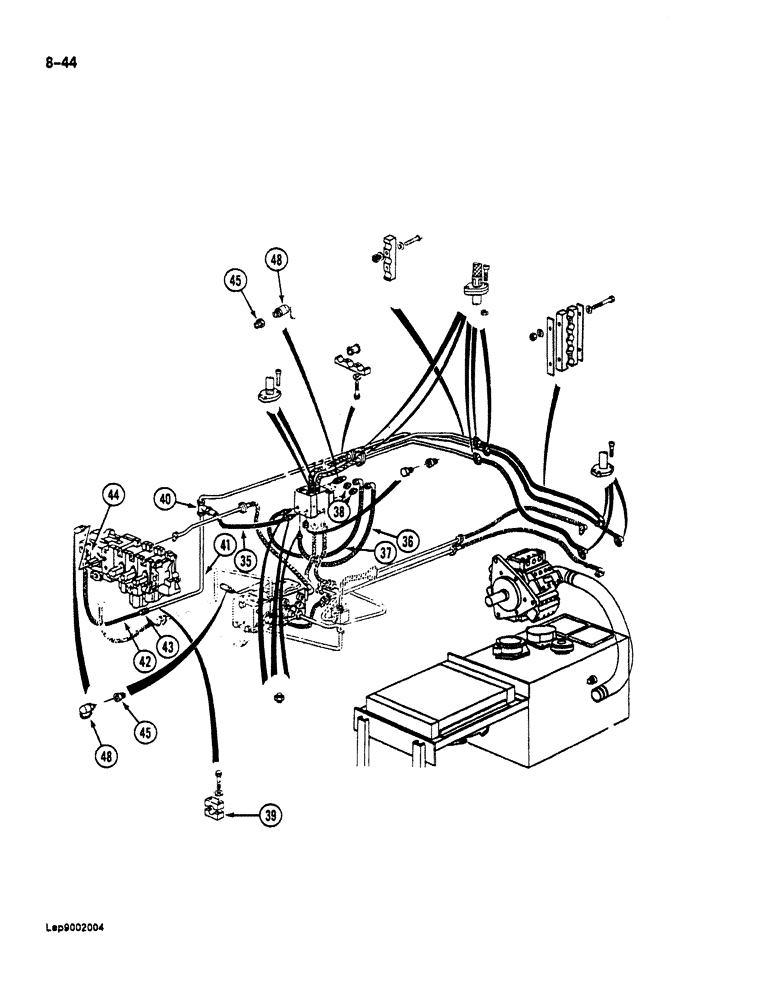

Запчасти Case 125B (8-044) - HYDRAULIC PUMP LINES, P.I.N. 21807 THROUGH 21868,, 26801 AND AFTER (08) - HYDRAULICS

35

P6631940

HOSE

- power sensing valve to tee, 19-5/8" (500 mm) long

1шт.

36

P6631918

HOSE

- crossover, power sensing valve, 19-3/4" (500 mm) long

1шт.

37

P6631920

HOSE

- crossover, power sensing valve, 31-1/2" (800 mm) long

1шт.

38

P4037573

UNION

ADAPTER ASSEMBLY - straight

2шт.

P945295

SEAL

O-RING - adapter

1шт.

39

P2023481

SHIN

CLAMP - tube, lower half

2шт.

40

P1237222

TEE

-, Serial Range: hose-tube

1шт.

41

P6249028

PIPE

TUBE - tee to attachment control valve

1шт.

42

P3731942

HOSE

- to attachment control valve, 24-3/4" (630 mm) long

1шт.

43

P37554

UNION

ADAPTER - straight

1шт.

44

P3037501

UNION

ADAPTER - straight, at valve

1шт.

P5746063

SEAL

O-RING - adapter

1шт.

45

P637358

RESTRICTOR

ADAPTER ASSEMBLY - test port

4шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

48

P4037516

MAKING-UP

CAP AND DISCONNECT ASSEMBLY - test port

4шт.

49

P7046042

SEAL

WASHER - seal, disconnect

1шт.
