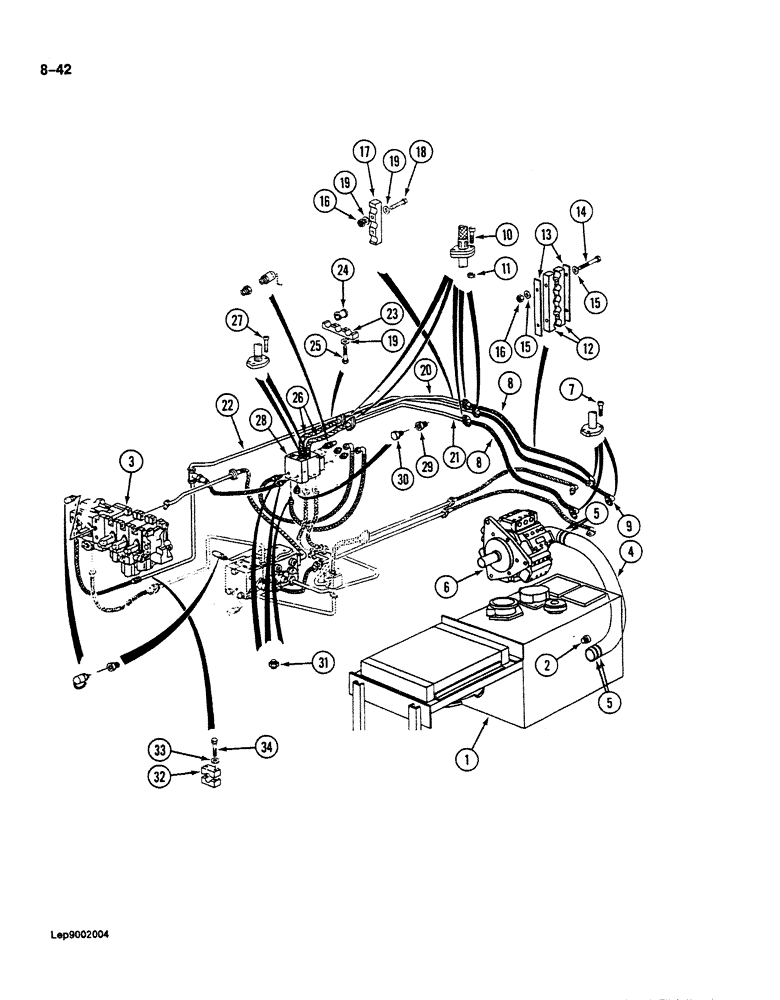

Запчасти Case 125B (8-042) - HYDRAULIC PUMP LINES, P.I.N. 21807 THROUGH 21868, ,26801 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, filter and gauges on Figure 8-2, mounting hardware on Figure 8-5

1шт.

2

P1437460

PLUG

ASSEMBLY - manifold, reservoir

1шт.

P2230429

SEAL

O-RING - plug

1шт.

3

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

4

P5431906

LARGE HOSE

HOSE - suction, Serial Range: pump-reservoir

1шт.

5

P36946

COLLAR CLAMP

CLAMP - suction hose

4шт.

6

REF

INSTRUCTION

PUMP ASSEMBLY - main hydraulic, parts list Figure 8-198

1шт.

7

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

Hose flange Hex Soc Hd, M8 x 30, 10.9

6шт.

8

P4931957

HOSE

- pump to power sensing valve, 31-1/2" (800 mm) long

2шт.

9

P4931958

HOSE

- pump to attachment control valve, 39-3/8" (1000 mm) long

1шт.

10

P1232958

SCREW

- hose and tube flange

10шт.

11

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Flange screw

10шт.

12

P4020337

SHIN

CLAMP - hose

2шт.

13

P2822860

PLATE

SPACER - hose clamp

2шт.

14

P933816

SCREW

BOLT - hose clamp

2шт.

15

P3528795

WASHER

SPACER - bolt

4шт.

16

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

17

P1820340

SHIN

CLAMP - tube

1шт.

18

P933835

SCREW

BOLT - hex head, 10 mm x 70 mm, full threaded

2шт.

19

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

20

P6449052

PIPE

TUBE - to power sensing valve, upper

1шт.

21

P6449051

PIPE

TUBE - to power sensing valve, lower

1шт.

22

P6749120

PIPE

TUBE - to attachment control valve, at tee

1шт.

23

P2023420

SHIN

CLAMP - tube

1шт.

24

P741450

BUSHING

INSULATOR - tube

3шт.

25

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- tube clamp Hex, M10 x 35, 8.8, Full Thd

2шт.

26

P1031966

HOSE

- to power sensing valve, 23 - 5/8" (600 mm) long

2шт.

27

P0732978Q

SCREW

Tube flange Hex Soc Hd, M8 x 30, 10.9

4шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - power sensing, parts list Figure 8-250

1шт.

29

P637358

RESTRICTOR

ADAPTER ASSEMBLY - plug, power sensing valve

1шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

30

P1737455

PLUG

ASSEMBLY - power sensing valve

1шт.

P7046042

SEAL

O-RING - plug

1шт.

31

P4037574

UNION

ADAPTER ASSEMBLY - straight

3шт.

P945293

WASHER, SEALING

SEAL - adapter

1шт.

32

P723438

SHIN

CLAMP - tube, upper half

2шт.

33

P3528795

WASHER

SPACER - tube clamp

4шт.

34

P833802

SCREW

BOLT - tube clamp

4шт.
