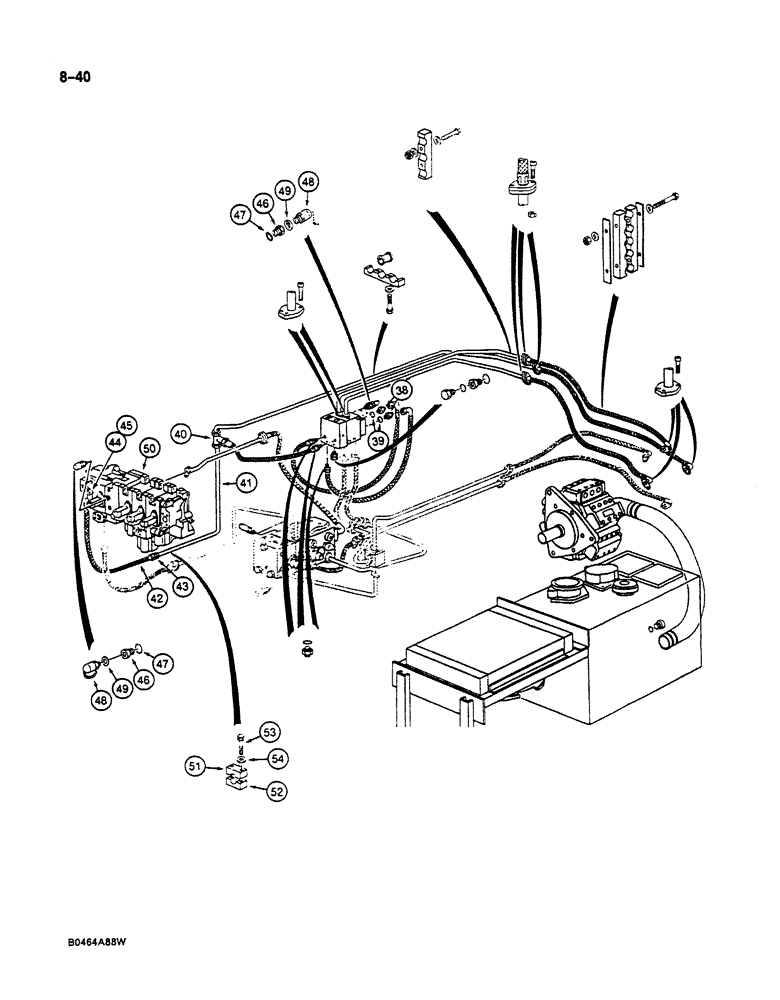

Запчасти Case 125B (8-040) - HYDRAULIC PUMP LINES, P.I.N. 74845 THROUGH 74963, 21801 THROUGH 21806 (08) - HYDRAULICS

P4037573

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 38 and 39

2шт.

38

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

39

P945295

SEAL

O-RING - adapter

1шт.

40

P1237222

TEE

-, Serial Range: hose-tube

1шт.

41

P6249028

PIPE

TUBE - tee to attachment control valve

1шт.

42

P3731942

HOSE

- to attachment control valve, 24-3/4" (630 mm) long

1шт.

43

P37554

UNION

ADAPTER - straight

1шт.

44

P3037501

UNION

ADAPTER - straight, at valve

1шт.

45

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- adapter

1шт.

P637358

RESTRICTOR

ADAPTER ASSEMBLY - test port, Includes: Ref. 46 and 47

4шт.

46

NSS

NOT SOLD SEPARAT

ADAPTER - test port

1шт.

47

P945293

WASHER, SEALING

SEAL - adapter

1шт.

P4037516

MAKING-UP

CAP AND DISCONNECT ASSEMBLY - test port, Includes: Ref. 48 and 49

4шт.

48

NSS

NOT SOLD SEPARAT

BODY - disconnect

1шт.

49

P7046042

SEAL

WASHER - seal, disconnect

1шт.

50

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - attachment, parts list Figures 8-204 through 8-214

1шт.

51

P723438

SHIN

CLAMP - tube, upper half

2шт.

52

P2023481

SHIN

CLAMP - tube, lower half

2шт.

53

P833802

SCREW

BOLT - tube clamp

4шт.

54

P3528795

WASHER

SPACER - tube clamp

4шт.
