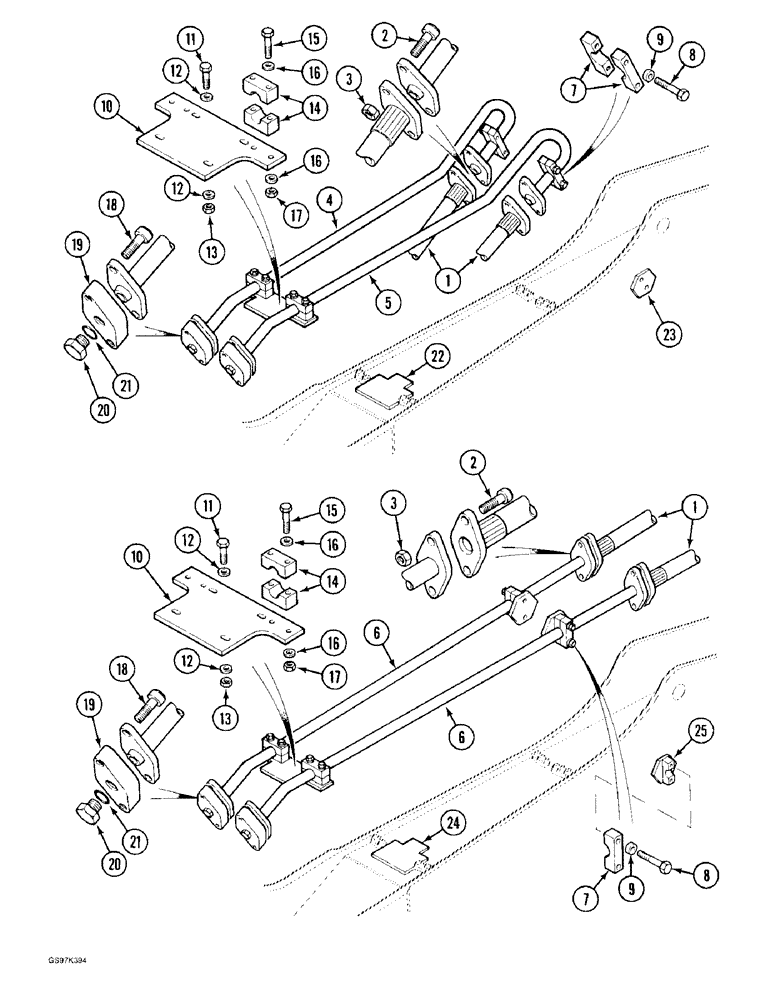

Запчасти Case 170C (8-090) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT ARM (08) - HYDRAULICS

1

P1031915

HOSE

- options, 1250 mm (49-1/4 inch) long

2шт.

2

P1232958

SCREW

BOLT - hose to tube flange

4шт.

3

P34185H

NUT,M8, Cl 10

- flange bolt

4шт.

4

P6249169

PIPE

TUBE - options, right-hand side of arm, used with 2.5 meter arm

1шт.

5

P6249170

PIPE

TUBE - options, left-hand side of arm, used with 2.5 meter arm

1шт.

6

P8147604

PIPE

TUBE - options, at arm, used with 3.2 meter arm

2шт.

7

P1023402

SHIN

CLAMP - options tube, 2 used with 3.2 meter arm; 4 used with 2.5 meter arm

2-4шт.

8

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- tube clamp, hex, full threads, 12 - 1.75 x 40 mm (Replaces bolt P533837)

4шт.

9

P4328797

WASHER

SPACER - clamp bolt

4шт.

10

P1624083

SUPPORT

BRACKET - tube clamp

1шт.

11

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm, bracket mounting (Replaces bolt P1133839)

4шт.

12

P4328796

WASHER

SPACER - bracket bolt

8шт.

13

825-1410

NUT,M10, Cl 8

Bracket bolt (Replaces nut P34166) M10, Cl 8

4шт.

14

P1023402

SHIN

CLAMP - options tube

4шт.

15

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

Tube clamp (Replaces bolt P533843) Hex, M12 x 80, 8.8

4шт.

16

P4328797

WASHER

SPACER - clamp bolt

8шт.

17

825-1112

NUT,M12, Cl 8

- clamp bolt, hex, 12 mm - 1.75 (Replaces nut P34167)

4шт.

18

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Tube flange to cover plate

4шт.

19

P637395

RESTRICTOR

PLATE - cover, tube flange

2шт.

20

P737470

PLUG

- cover plate

2шт.

21

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- plug

2шт.

22

NSS

NOT SOLD SEPARAT

PLATE - mounting, tube clamps to top of 2.5 meter arm, welded to arm, available only as part of options tube kit

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - mounting, tube clamps to sides of 2.5 meter arm, welded to arm, available only as part of options tube kit

2шт.

24

NSS

NOT SOLD SEPARAT

PLATE - mounting, tube clamps to top of 3.2 meter arm, welded to arm, available only as part of options tube kit

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - mounting, tube clamps to sides of 3.2 meter arm, welded to arm, available only as part of options tube kit

2шт.
