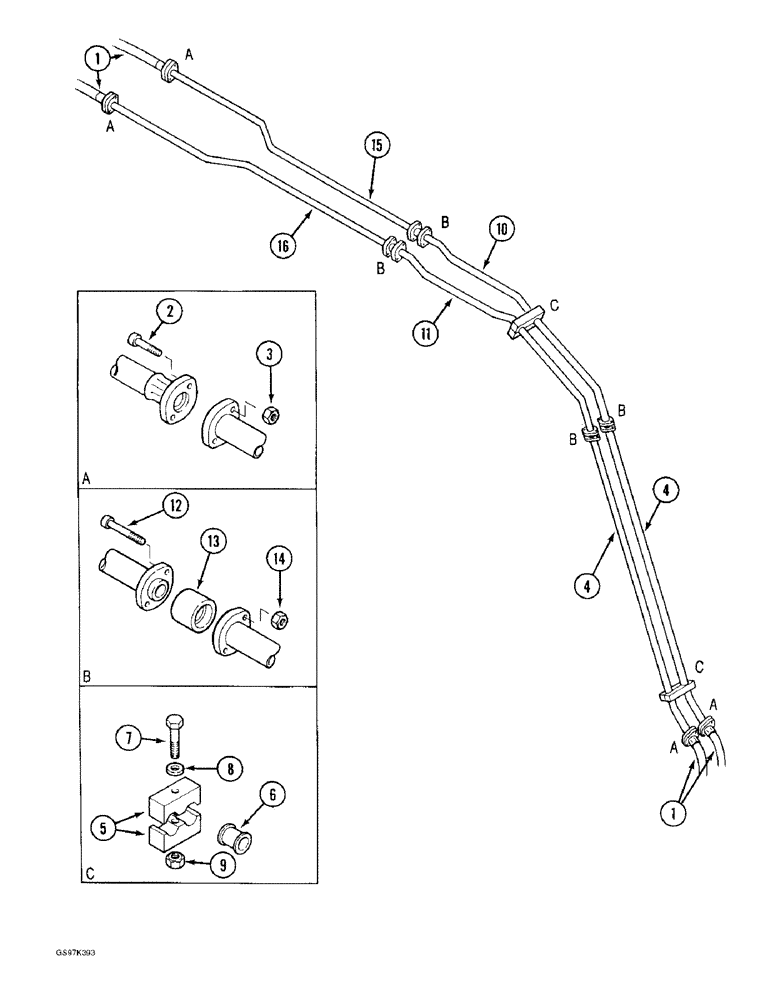

Запчасти Case 170C (8-088) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT BOOM (08) - HYDRAULICS

1

P1031915

HOSE

- from options control valve and to tubes on arm, 1250 mm (49-1/4 inch) long

4шт.

2

P1232958

SCREW

BOLT - tube to hose flange

8шт.

3

P34185H

NUT,M8, Cl 10

- flange bolt

8шт.

4

P6947105

PIPE

TUBE - at boom, lower section

2шт.

5

P820347

SHIN

CLAMP -, Serial Range: tubes-boom

4шт.

6

P741448

BUSHING

INSULATOR - tube clamp

4шт.

7

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- tube clamp, hex, 16 - 2.0 x 120 mm (Replaces bolt P33856)

2шт.

8

P4328746

WASHER

SPACER - tube clamp

2шт.

9

829-1416

NUT,M16, Cl 10

- tube clamp, hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

2шт.

10

P5949193

PIPE

TUBE - at boom, right-hand side, center section

1шт.

11

P5949194

PIPE

TUBE - at boom, left-hand side, center section

1шт.

12

P1232960

SCREW

BOLT - tube flange

8шт.

13

P1737761

JUNCTION

ADAPTER - tube flange

4шт.

14

P34185H

NUT,M8, Cl 10

- tube flange

8шт.

15

P5949197

PIPE

TUBE - at boom, right-hand side, upper section

1шт.

16

P5949198

PIPE

TUBE - at boom, left-hand side, upper section

1шт.
