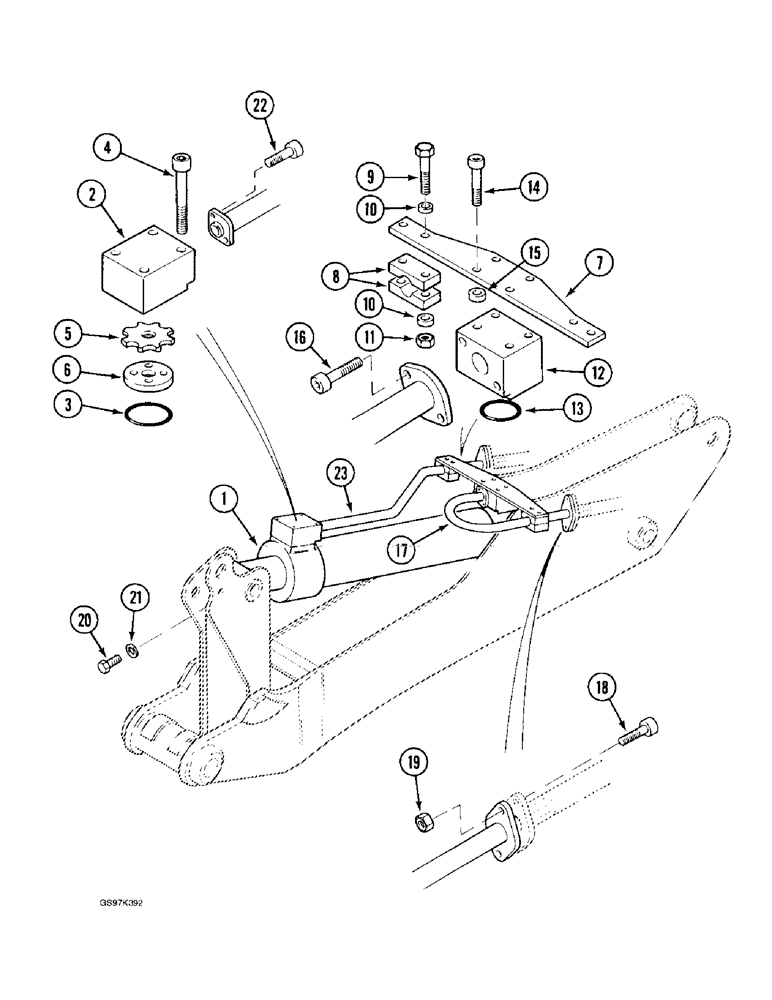

Запчасти Case 170C (8-086) - TOOL CYLINDER CIRCUIT, TUBES AT CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, parts list Figure 8-168 or 8-170

1шт.

2

P3837703

SHIN

BLOCK - tube to cylinder, rod end

1шт.

3

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- block

1шт.

4

P32979

SCREW

BOLT - hex socket, 14 mm x 80 mm

4шт.

5

P1137765

VALVE POPPET

RESTRICTOR - tube block

1шт.

6

P930134

STOP

GUIDE - restrictor

1шт.

7

P1824001

SUPPORT

BRACKET - mounting, tube clamp

1шт.

8

P520317

SHIN

CLAMP - tube

4шт.

9

P133084

SCREW

BOLT - hex, 12 mm x 110 mm

4шт.

10

P4328797

WASHER

SPACER - clamp, 8 mm thick

8шт.

11

825-1112

NUT,M12, Cl 8

- hex, 12 mm - 1.75 (Replaces nut P34167)

4шт.

12

P3237793

SHIN

BLOCK - tube to cylinder, base end

1шт.

13

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- block

1шт.

14

P532902

SCREW

BOLT - hex socket, 14 mm x 110 mm

4шт.

15

P4628739

WASHER

SPACER - bracket to block, 5 mm thick

4шт.

16

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

17

P6947189

PIPE

TUBE - tool cylinder, base end

1шт.

18

P632934

SCREW

BOLT - hex socket, 12 mm x 40 mm, class 10.9

4шт.

19

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

20

P1737451

PLUG

- cylinder rod eye, if used

1шт.

21

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Plug, if used (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

1шт.

22

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

23

P8147668

PIPE

TUBE - tool cylinder, rod end, for 3.2 meter (10 foot, 6 inch) arm

1шт.

23

P5849129

PIPE

TUBE - tool cylinder, rod end, for 2.5 meter (8 foot, 3 inch) arm

1шт.
