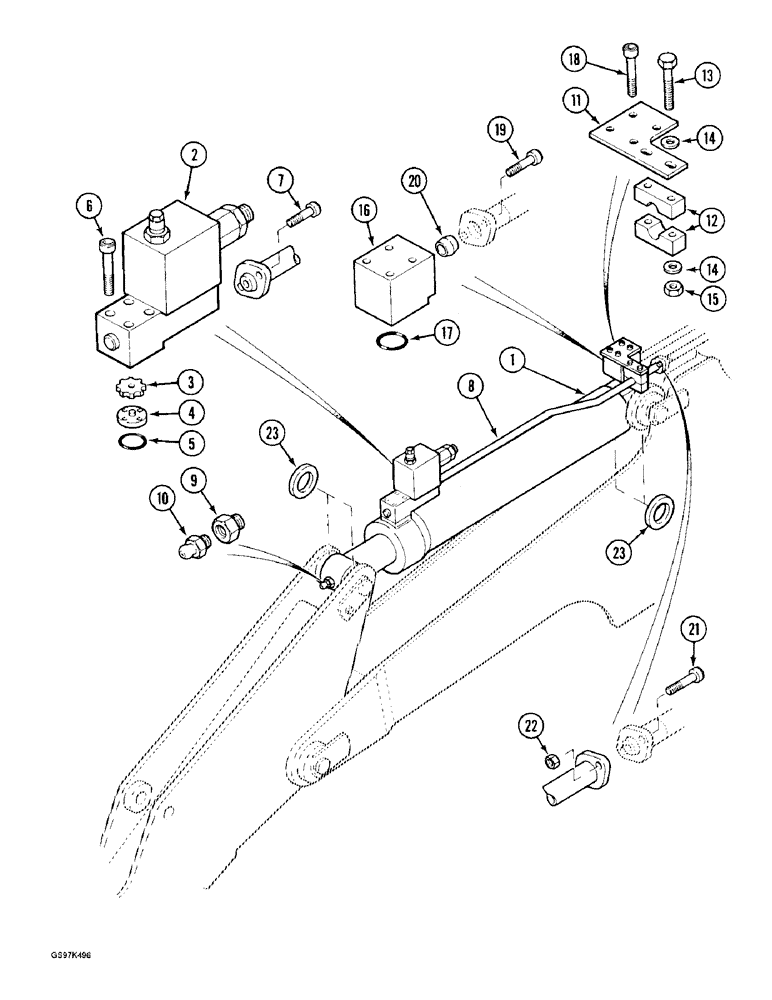

Запчасти Case 170C (8-084) - ARM CYLINDER CIRCUIT, TUBES AT CYLINDER, UNITS WITH CRANING VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, parts list Figure 8-172 or 8-174

1шт.

2

P4043318

SHIN

VALVE ASSEMBLY - craning, arm cylinder, parts list Figure 8-144

1шт.

3

P5137741

VALVE POPPET

VALVE - restrictor

1шт.

4

P3030177

STOP

- restrictor valve

1шт.

5

P2030483

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- block (Replaces O-ring P330402)

1шт.

6

P32959

SCREW

BOLT - hex socket, 14 mm x 100 mm

4шт.

7

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

8

P8347673

PIPE

TUBE - arm cylinder, rod end

1шт.

9

P837590

END FITTING

ADAPTER - grease fitting, if used

1шт.

10

J45801

LUBE NIPPLE,M8 x 1.25

rod end of arm cylinder, if used M8 x 1.25

1шт.

11

P1824017

SUPPORT

BRACKET - clamp mounting

1шт.

12

P520317

SHIN

CLAMP - tube

2шт.

13

P133084

SCREW

BOLT - hex, 12 mm x 110 mm

2шт.

14

P4328797

WASHER

SPACER - clamp, 8 mm thick

4шт.

15

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

16

P3237795

SHIN

BLOCK - hose mounting, base end

1шт.

17

P2030483

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- block (Replaces O-ring P330402)

1шт.

18

P532966

SCREW

BOLT - hex socket, 16 mm x 110 mm, class 10.9

4шт.

19

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

2шт.

20

P1528829

JUNCTION

ADAPTER - hose, Serial Range: flange-block

1шт.

21

P632934

SCREW

BOLT - hex socket, 12 mm x 40 mm, class 10.9

2шт.

22

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

23

P151318

SEAL

BUSHING - arm cylinder

4шт.
