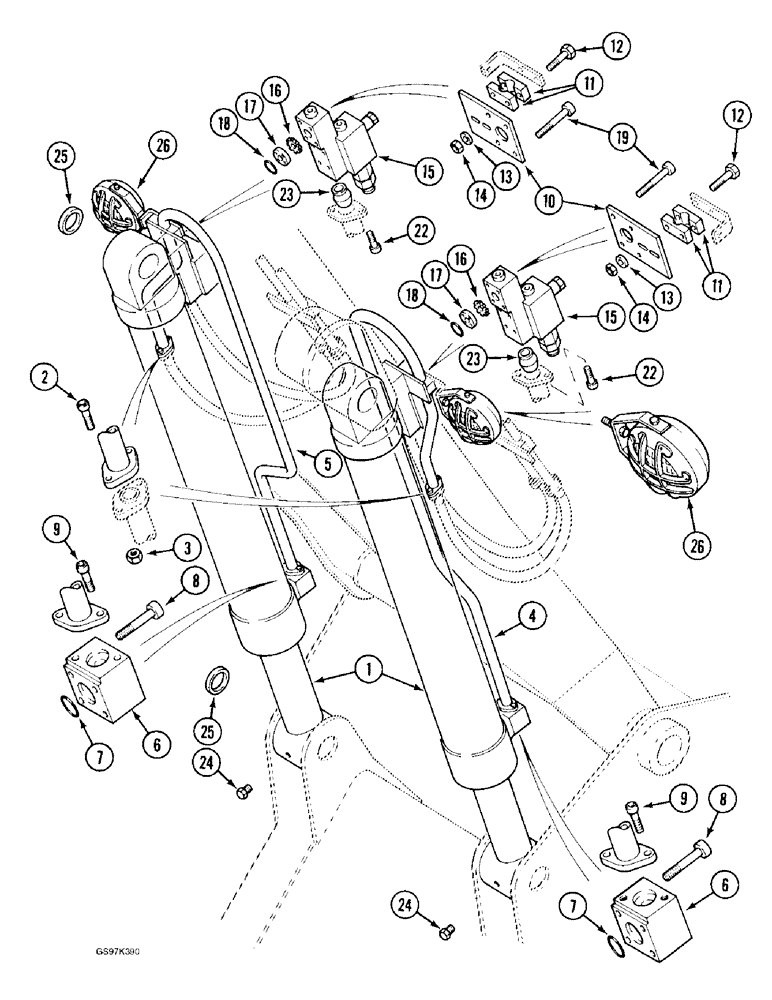

Запчасти Case 170C (8-080) - BOOM CYLINDER CIRCUIT, TUBES AT CYLINDER, UNITS WITH CRANING VALVE (08) - HYDRAULICS

1

P8346706

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom, parts list Figure 8-170

2шт.

2

L632924

SCREW

BOLT - hex socket, 10 mm x 55 mm, class 10.9

4шт.

3

825-1410

NUT,M10, Cl 8

4шт.

4

P5849134

PIPE

TUBE - to rod end of boom cylinder, left-hand

1шт.

5

P5849135

PIPE

TUBE - to rod end of boom cylinder, right-hand

1шт.

6

P3237783

SHIN

BLOCK - mounting, tube to cylinder, rod end

2шт.

7

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- mounting block

2шт.

8

P32979

SCREW

BOLT - hex socket, 10 mm x 55 mm

8шт.

9

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT - hex socket, 10 mm x 55 mm, class 10.9

4шт.

10

P4223399

SUPPORT

BRACKET - mounting, tube clamp

2шт.

11

P520318

SHIN

CLAMP - tube

4шт.

12

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

- hex, 10 - 1.5 x 80 mm (Replaces bolt P233832)

4шт.

13

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

14

825-1410

NUT,M10, Cl 8

- hex, 10 mm - 1.5, class 10, plated

4шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - craning, boom cylinder, parts list Figure 8-140 or 8-142

2шт.

16

P437752

VALVE POPPET

RESTRICTOR - craning valve

2шт.

17

P930134

STOP

GUIDE - restrictor

2шт.

18

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- craning valve

2шт.

19

P532978

SCREW

BOLT - hex socket, 14 mm x 85 mm

8шт.

22

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

23

P1528828

JUNCTION

ADAPTER - hose, Serial Range: flange-block

2шт.

24

P1437456

PLUG

ASSEMBLY - cylinder rod eye, Includes: O-ring P945295

2шт.

P945295

SEAL

O-RING - plug

1шт.

25

P151314

SEAL

BUSHING - boom cylinder

8шт.

26

REF

INSTRUCTION

LAMP - work, see Figure 4-40 for lamp and mounting bracket

2шт.
